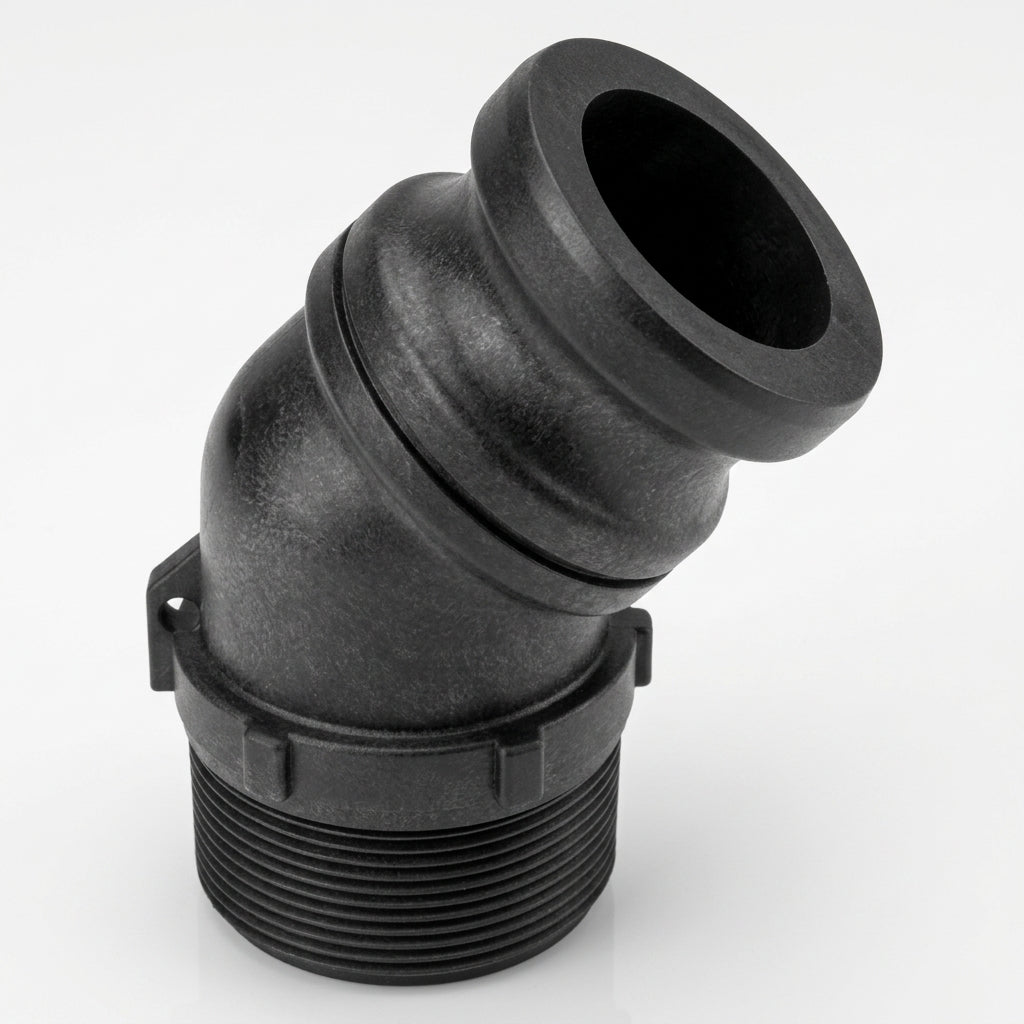

45° Cam Lever Adaptor 2" Male Thread x 2" Polypropylene

45° angled cam lever adaptor with 2" male thread and 2" connection point, manufactured from glass-reinforced polypropylene.

This adaptor combines a 45° angle design with robust polypropylene construction for flexible hose and tank connections. The male thread inlet and adaptor outlet accommodate 2" hose couplings, making it suitable for industrial fluid handling applications requiring angled flow redirection.

Key Features

• 45° angle for compact installation and flow routing
• Glass-reinforced polypropylene construction
• 2" male thread inlet and 2" adaptor outlet
• Compatible with standard 2" adaptor fittings
• Pressure-rated design for multiple temperature operating ranges

Specifications

• Thread size: 2" male
• Adaptor size: 2"
• Angle: 45°
• Material: Glass-reinforced polypropylene
• Maximum pressure at -17.8°C: 6.4 bar
• Maximum pressure at 21.2°C: 8.6 bar
• Maximum pressure at 47.8°C: 4.8 bar

Applications

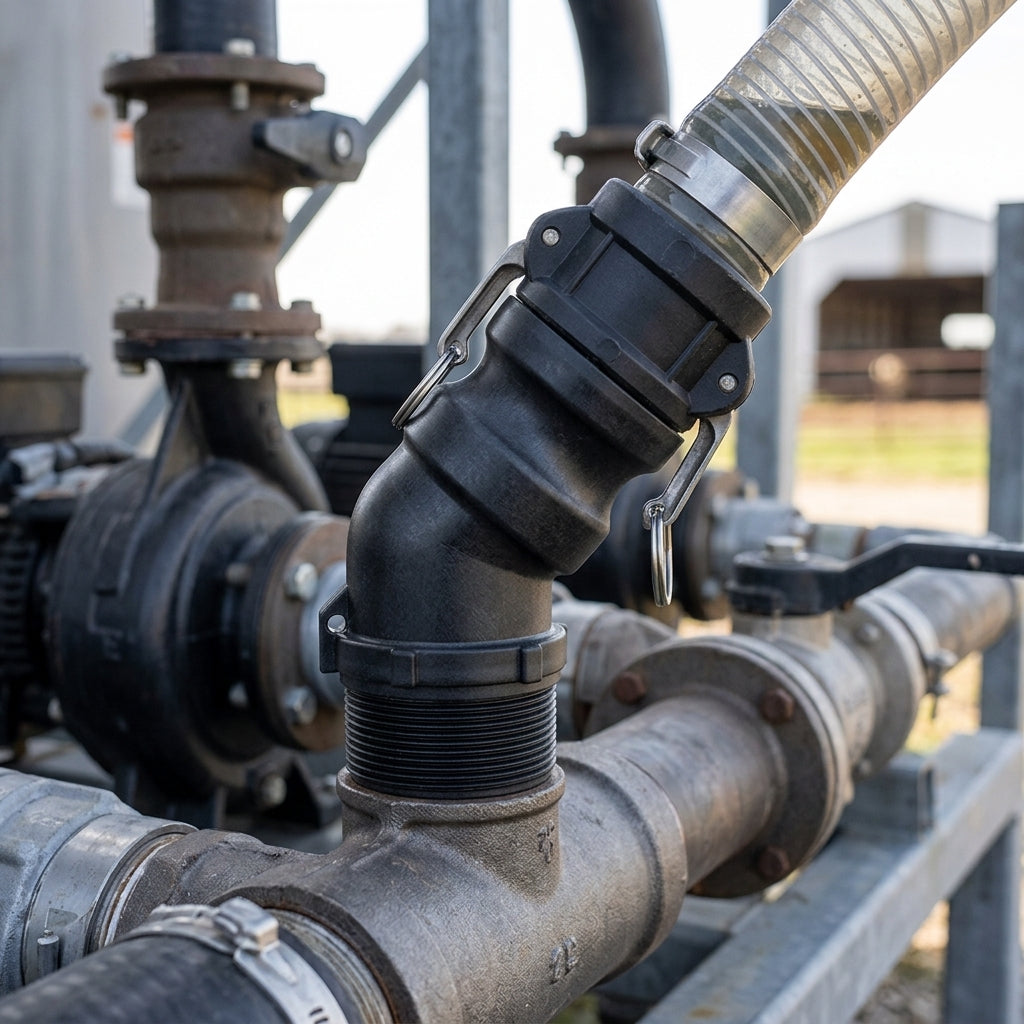

• Industrial fluid transfer and storage tank connections
• Hose manifold assemblies and custom plumbing layouts
• Space-constrained installations requiring angled connections
• Agricultural and chemical handling systems
• Water management and mobile tank equipment
