Description

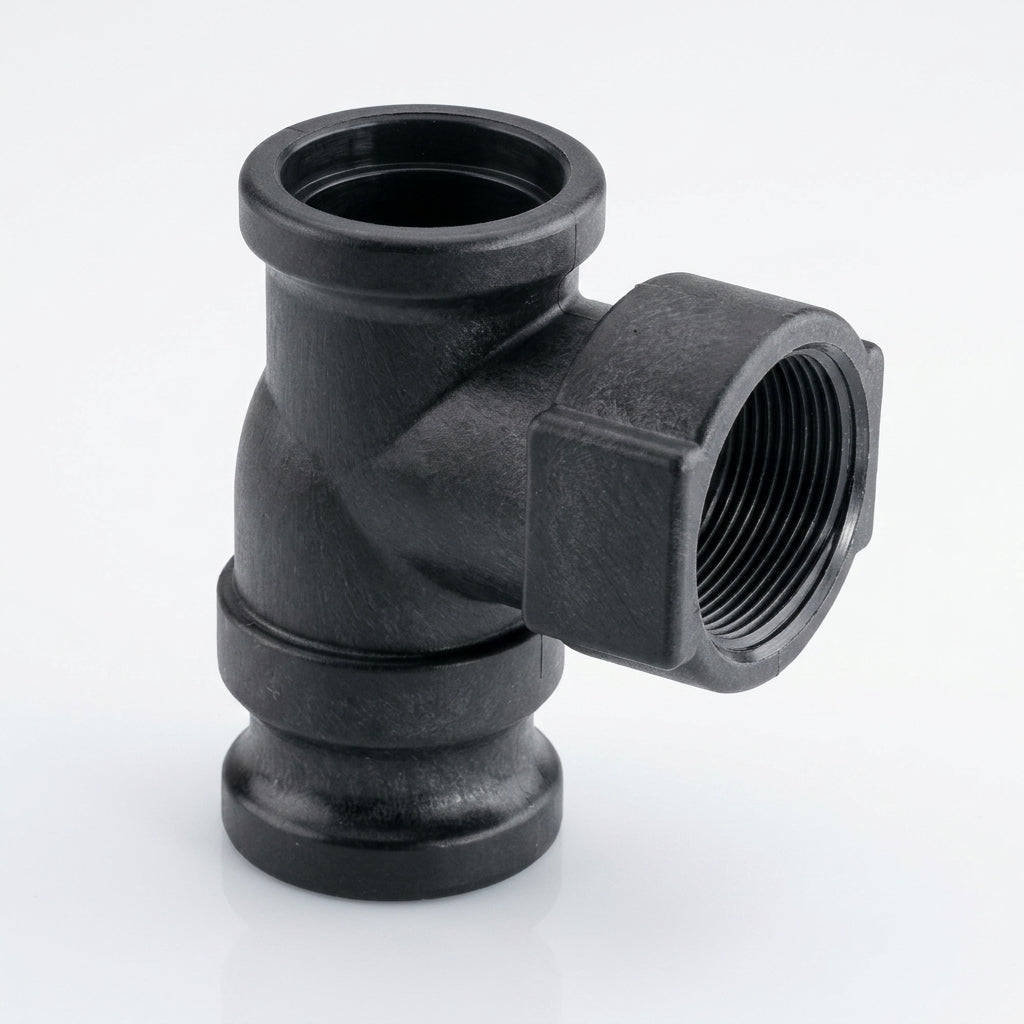

Right-angle polypropylene cam lever adaptor with 1½" female thread and matching port for fluid system connections.
This 90° adaptor enables angled piping configurations in fluid handling and storage systems. Manufactured from glass-reinforced polypropylene, it provides reliable performance across a range of operating temperatures with rated pressure ratings that vary by ambient conditions.
Key Features
- 90° angle configuration for offset connections
- 1½" female thread inlet with 1½" adaptor outlet
- Glass-reinforced polypropylene construction
- Pressure rated: 8.6 bar at 21.2°C; 6.4 bar at -17.8°C; 4.8 bar at 47.8°C
- Cam lever connection system
- Compatible with standard 1½" adaptor fittings
Specifications
- Thread size: 1½" female
- Adaptor size: 1½"
- Angle: 90°
- Material: Glass-reinforced polypropylene
- Maximum operating pressure: 8.6 bar (at 21.2°C ambient)
Applications

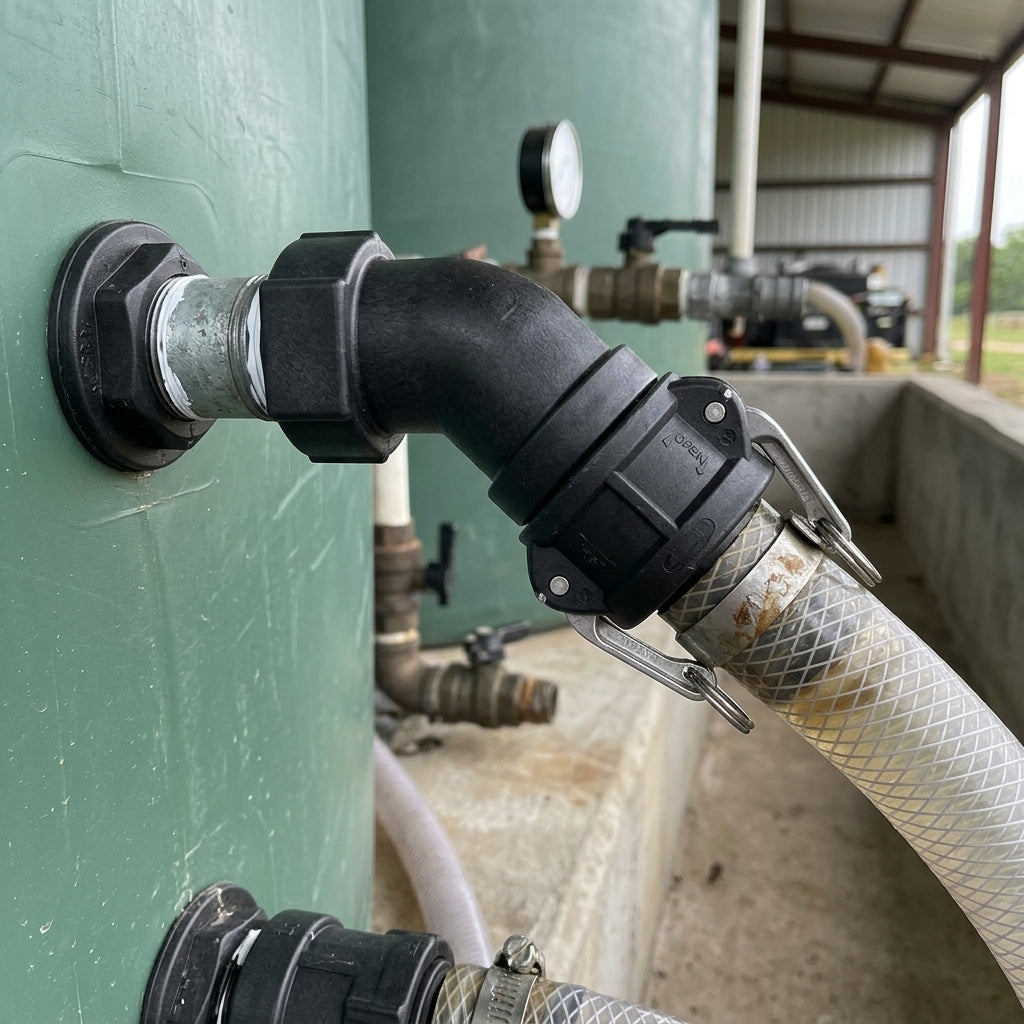

- Tank outlet and inlet configurations
- Fluid transfer and distribution lines
- Space-constrained piping layouts
- Agricultural and industrial storage systems
- Pump discharge and return lines
