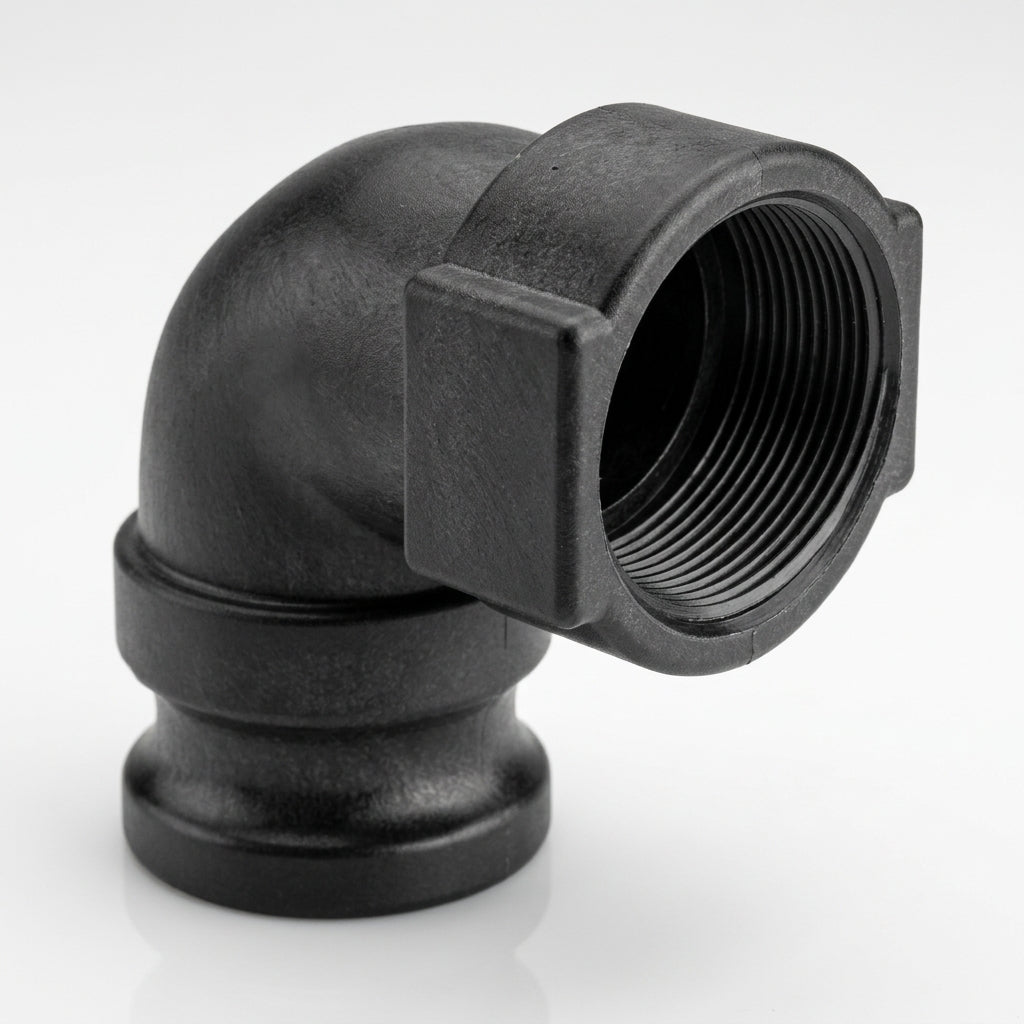

90° Cam Lever Adaptor, 2" Female Thread x 2" Polypropylene

90° angled adaptor with 2" female thread and 2" connector port, manufactured from glass-reinforced polypropylene for chemical and water transfer applications.

This adaptor enables angled connections in fluid handling systems where space constraints or pipe routing require a 90° directional change. Constructed from durable glass-reinforced polypropylene, it offers robust performance across a range of operating temperatures and pressures.

Key Features

• 90° angle configuration for space-efficient routing
• 2" female thread inlet with 2" adaptor outlet
• Glass-reinforced polypropylene construction
• Temperature-rated pressure capability: 8.6 bar at 21°C
• Cold-temperature rating: 6.4 bar at -17.8°C
• Hot-temperature rating: 4.8 bar at 47.8°C

Specifications

• Thread size: 2" female
• Adaptor size: 2"
• Angle: 90°
• Material: glass-reinforced polypropylene
• Maximum operating pressure: 8.6 bar (at 21.2°C ambient)
• Temperature range: -17.8°C to 47.8°C

Applications

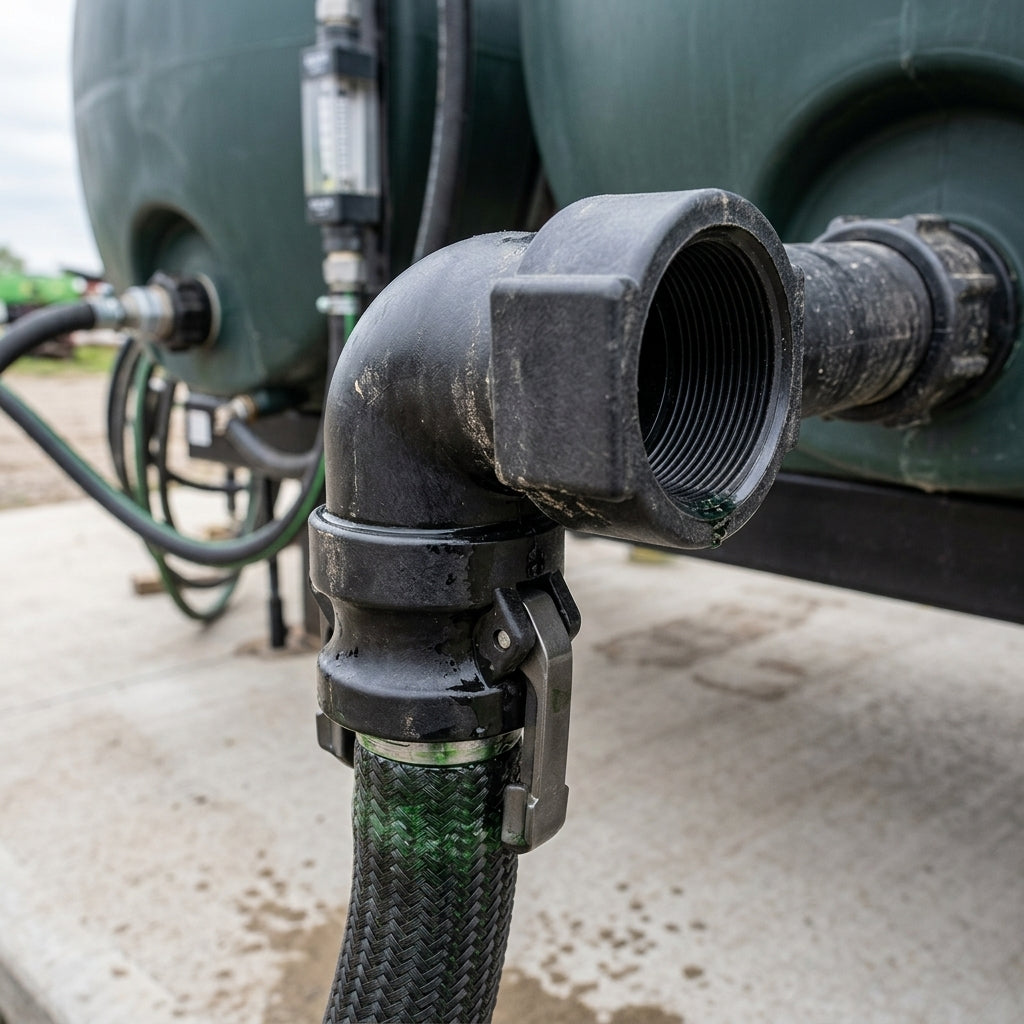

• Chemical and water transfer systems
• Agricultural fluid handling
• Industrial fluid distribution networks
• Space-constrained installation environments
• Angled coupling requirements in tank and pump systems
