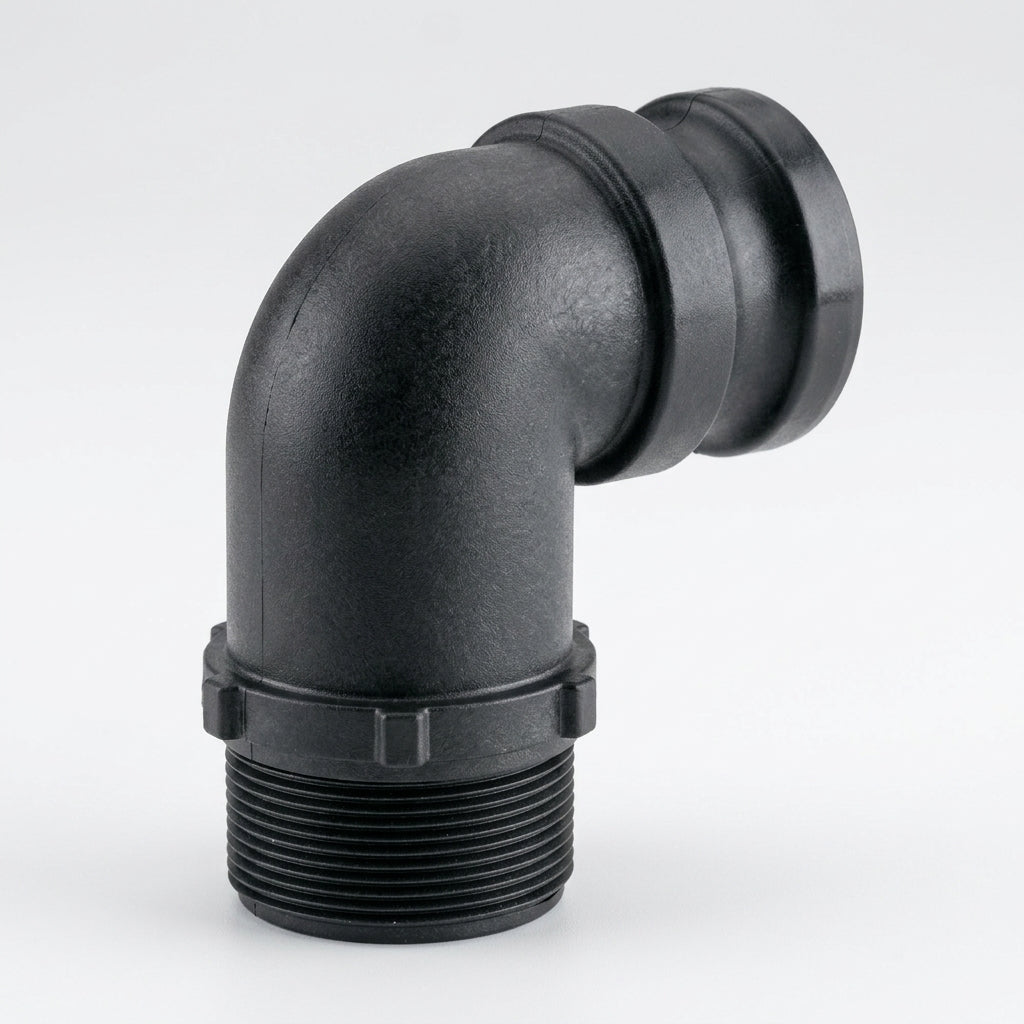

90° Cam Lever Adaptor, 2" Male Thread x 2" Socket

A 90-degree angled adaptor featuring 2" male thread and 2" socket connection, engineered for quick-connect coupling applications.

This polypropylene adaptor enables flexible directional routing of fluid lines in compact installations. The 90° geometry supports ergonomic hose placement whilst maintaining secure threaded connections. Rated across a temperature range from −17.8 °C to 47.8 °C with corresponding pressure specifications.

Key Features

• Glass-reinforced polypropylene construction
• 90° angle for directional hose routing
• 2" male thread and 2" adaptor socket
• Compatible with standard 2" couplers
• Temperature-rated from −17.8 °C to 47.8 °C
• Pressure ratings: 6.4 bar (−17.8 °C), 8.6 bar (21.2 °C), 4.8 bar (47.8 °C)

Specifications

• Thread size: 2" male
• Socket size: 2" adaptor
• Angle: 90°
• Material: Glass-reinforced polypropylene
• Maximum operating pressure: 8.6 bar at 21.2 °C
• Temperature range: −17.8 °C to 47.8 °C

Applications

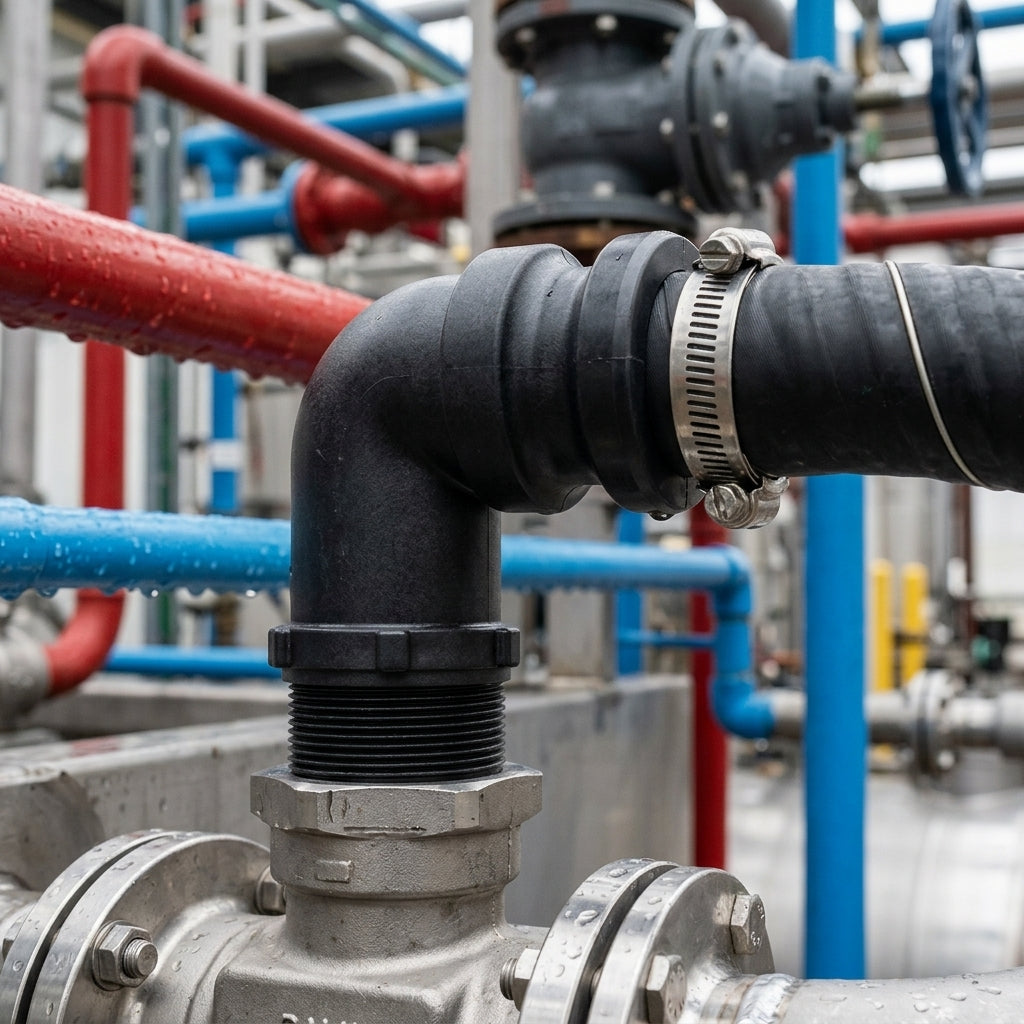

• Fluid transfer hose systems requiring directional changes
• Quick-coupling assemblies in industrial settings
• Tank inlet and outlet manifolds
• Mobile tank and bowser configurations
• Chemical and water distribution networks
