Description

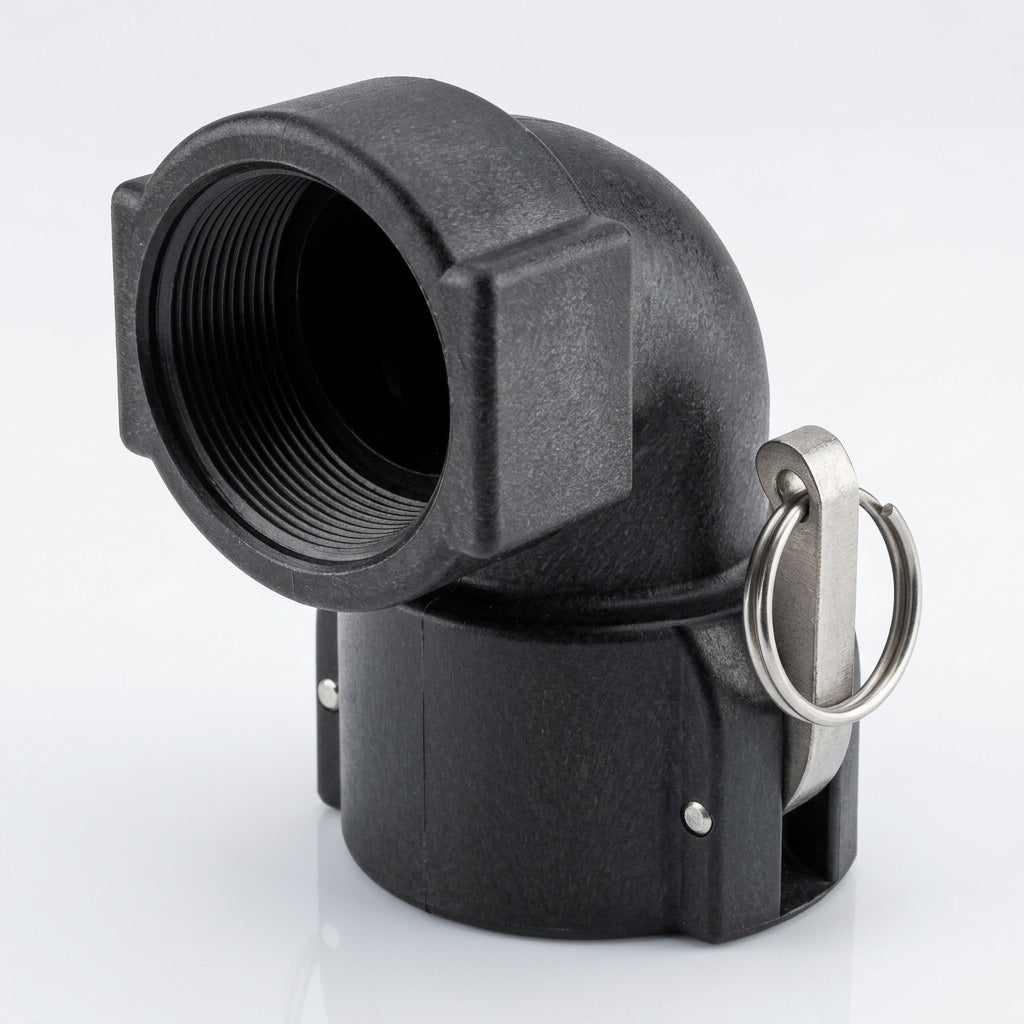

Right-angle cam lever coupler with 2" female thread and 2" coupling socket, moulded from glass-reinforced polypropylene with stainless steel fittings.
This compact 90° coupler is designed for applications where space or pipe routing requires an angled connection. The reinforced polypropylene body reduces weight whilst maintaining structural integrity across a wide temperature range. Stainless steel arms, rings, and pins ensure corrosion resistance and durability in demanding environments.
Key Features
- 90° angled connection geometry for space-constrained installations
- Glass-reinforced polypropylene body with stainless steel hardware
- EPDM gasket for fluid-tight seal
- Temperature-rated pressure performance from -17.8°C to 47.8°C
- Compatible with 2" adaptors and standard coupling systems
- Quick-connect cam lever operation for fast coupling and decoupling
Specifications
- Thread size: 2" female
- Coupling size: 2"
- Body material: Glass-reinforced polypropylene
- Fittings: Stainless steel arms, rings, and pins
- Seal: EPDM gasket
- Maximum pressure at -17.8°C: 6.4 bar
- Maximum pressure at 21.2°C: 8.6 bar
- Maximum pressure at 47.8°C: 4.8 bar
Applications

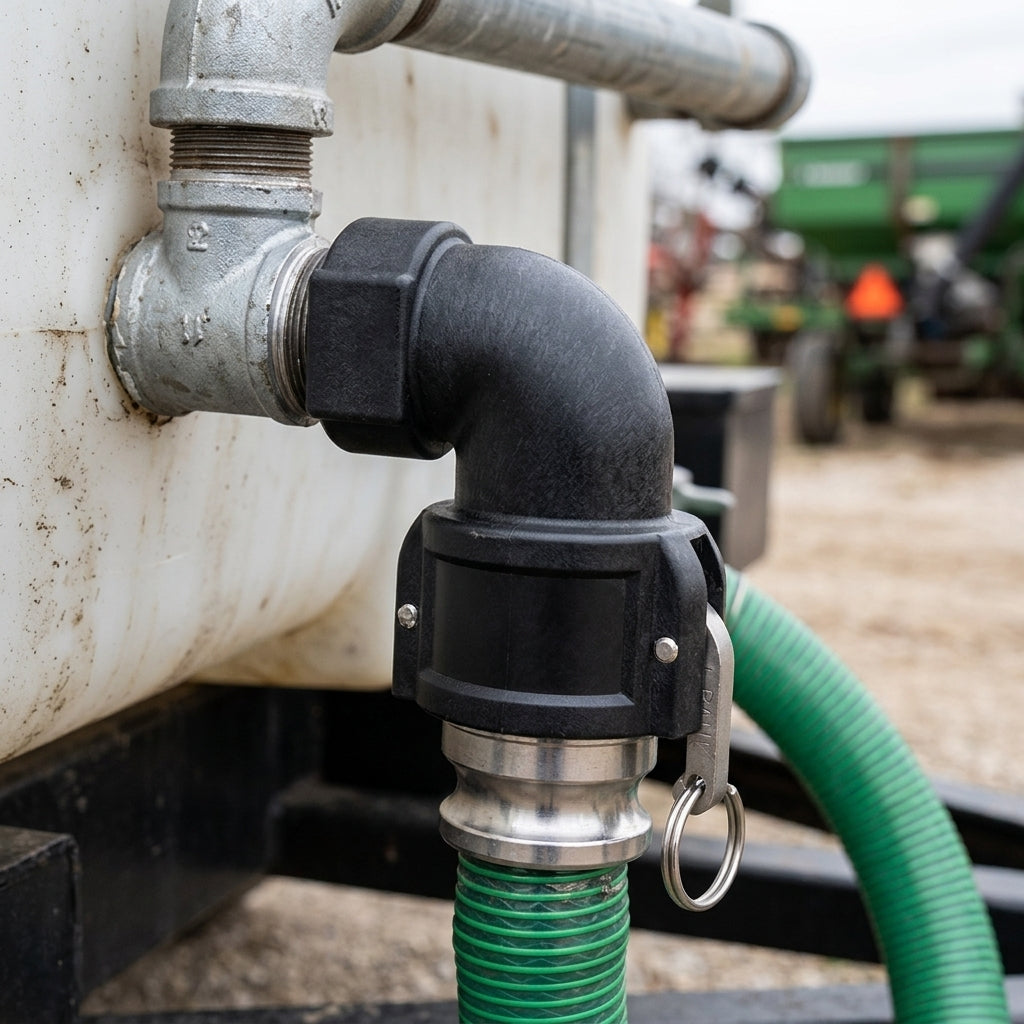

- Agricultural spray systems and irrigation equipment
- Water transfer and fluid handling in confined spaces
- Chemical distribution networks requiring angled connections
- Mobile and portable pump installations
- Brewery and food processing fluid lines
