Description

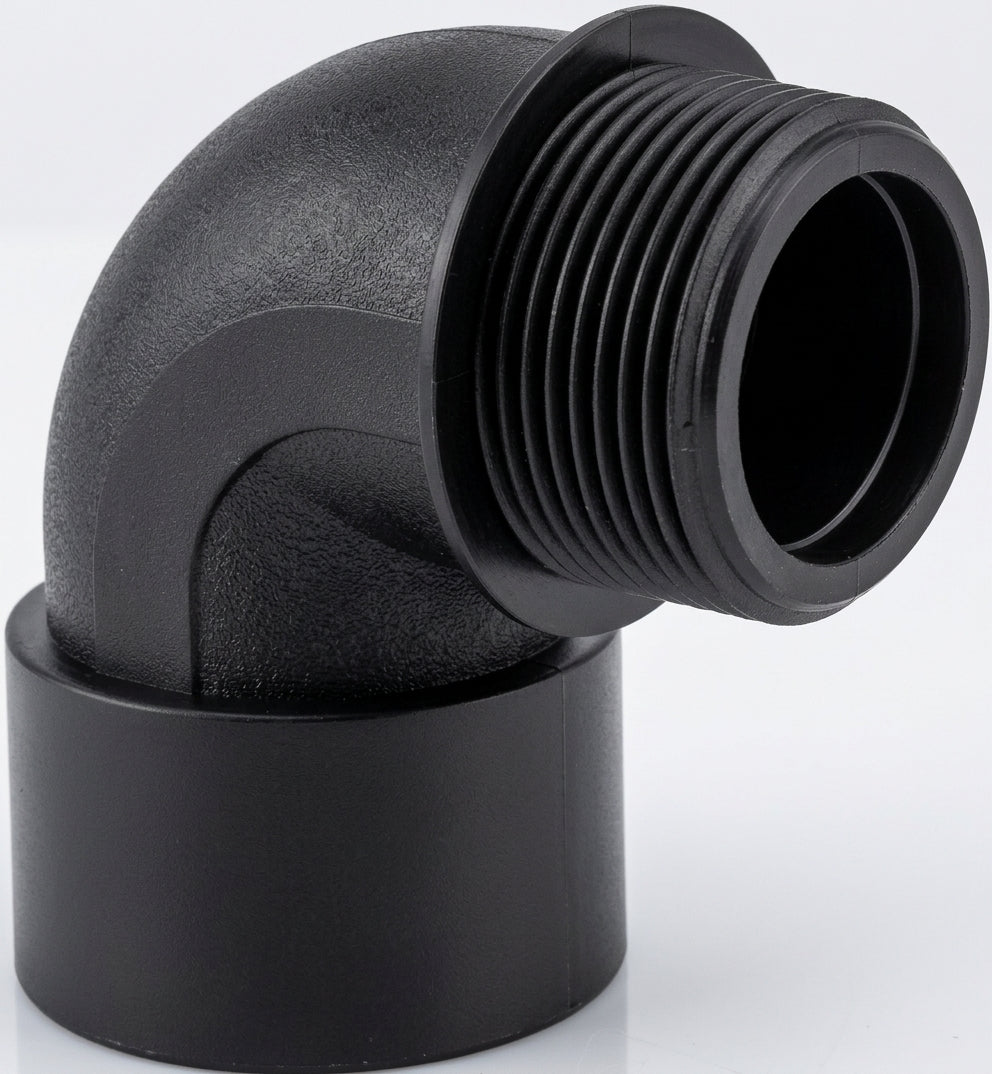

90-degree elbow connector with 1½ BSP male and female threads, moulded from polypropylene for corrosion-free performance.

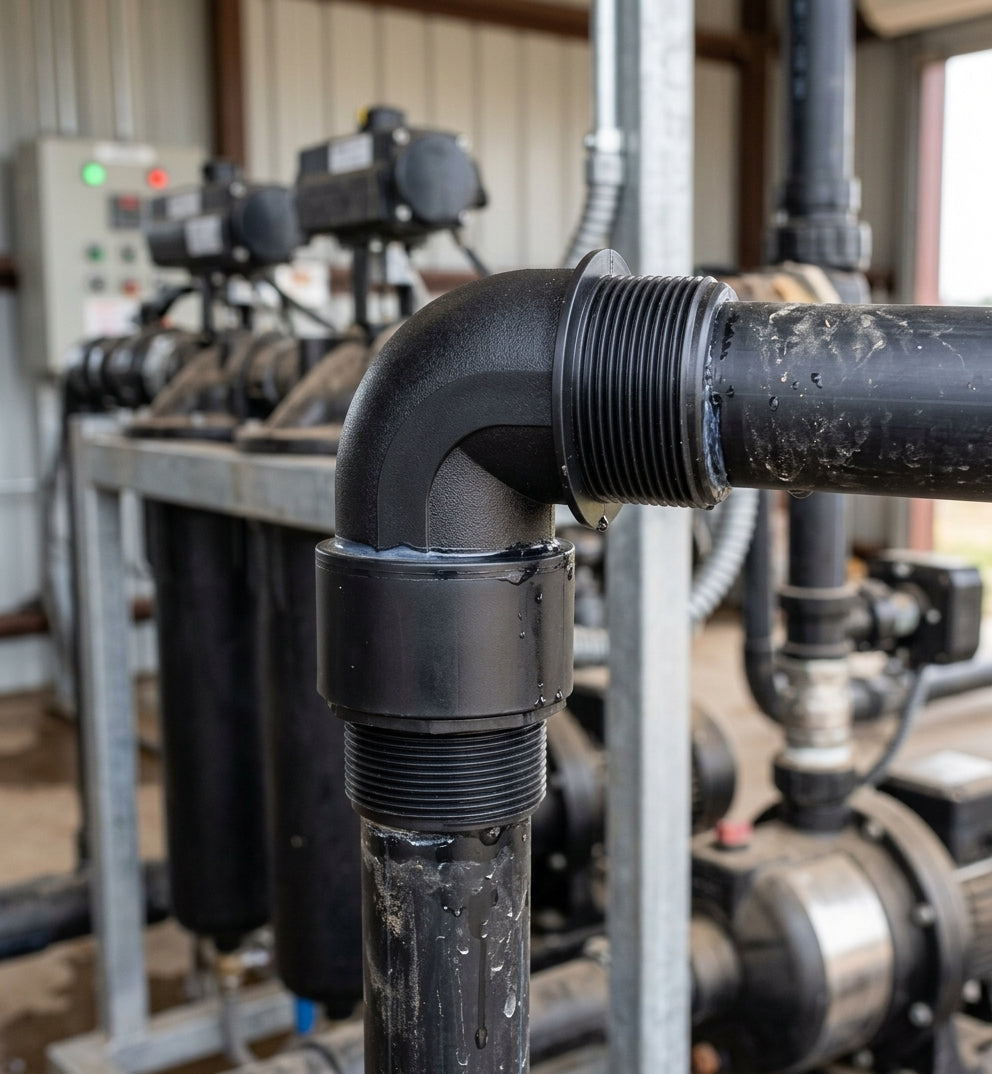

This right-angle pipe elbow is designed to change flow direction in pressurised systems. The matching BSP threaded connections allow secure connection between two pipes or hoses, with the female socket accommodating standard male pipe threads.
Key Features
- 1½ inch BSP male inlet thread
- 1½ inch BSP female outlet thread
- 90-degree angle configuration
- Polypropylene construction for chemical resistance
- Maximum operating pressure 10 bar
- Maximum temperature rating 40°C
Specifications
- Thread size: 1½ BSP
- Thread type: Male × Female
- Angle: 90 degrees
- Material: Polypropylene
- Pressure rating: 10 bar maximum
- Temperature limit: 40°C maximum
Applications
- Irrigation and garden watering systems
- Water transfer and circulation pipework
- Chemical handling and storage connections
- Low-pressure fluid distribution networks
- Tank inlet and outlet manifolds
