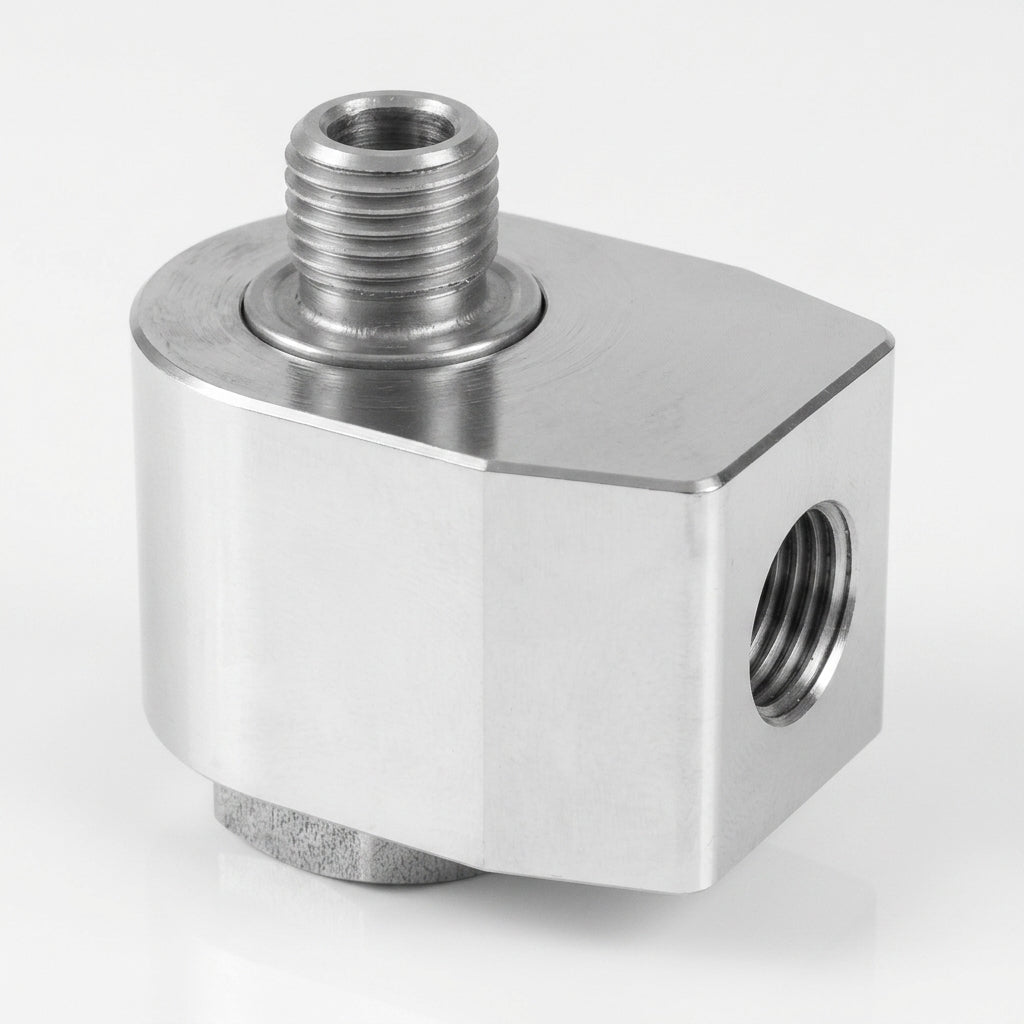

90° Swivel Triple Bearing 3/8" BSP Female x 3/8" BSP Tapered Male

A high-pressure 90° swivel connector with triple bearing system for rotating fluid lines in industrial applications.

This swivel features a robust triple bearing design to support continuous rotation whilst maintaining a secure connection. The nickel-plated brass body with stainless steel bearings provides durability across multiple fluid types including water, oil and air systems. Rated for pressures up to 275 bar and temperatures to 120°C, it's engineered for demanding industrial environments.

Key Features

• Triple bearing system for smooth, sustained rotation
• 90° elbow configuration for directional changes
• Nickel-plated brass body with stainless steel bearings
• Operates with water, oil, air and neutral fluids (pH 3–12)
• Maximum pressure 275 bar at 30 rpm maximum speed
• 7 mm internal diameter port without snap ring

Specifications

• Female connection: 3/8" BSP
• Male connection: 3/8" BSP tapered thread
• Maximum working pressure: 275 bar
• Maximum rotational speed: 30 rpm
• Maximum fluid temperature: 120°C
• Body material: Nickel-plated brass
• Bearing material: Stainless steel
• Port ID: 7 mm

Applications

• Pressure washers and cleaning equipment
• Hydraulic and pneumatic rotating lines
• Industrial fluid transfer systems
• Mobile and plant-mounted spraying equipment
• Rotating inlet manifolds for dynamic pressure applications
