DN 25 DIN Self Adhesive Flange Disc - 68mm, Neoprene

Self-adhesive neoprene rubber disc for DIN flanges, rated to 160 bar, with flexible protection and clean removal.

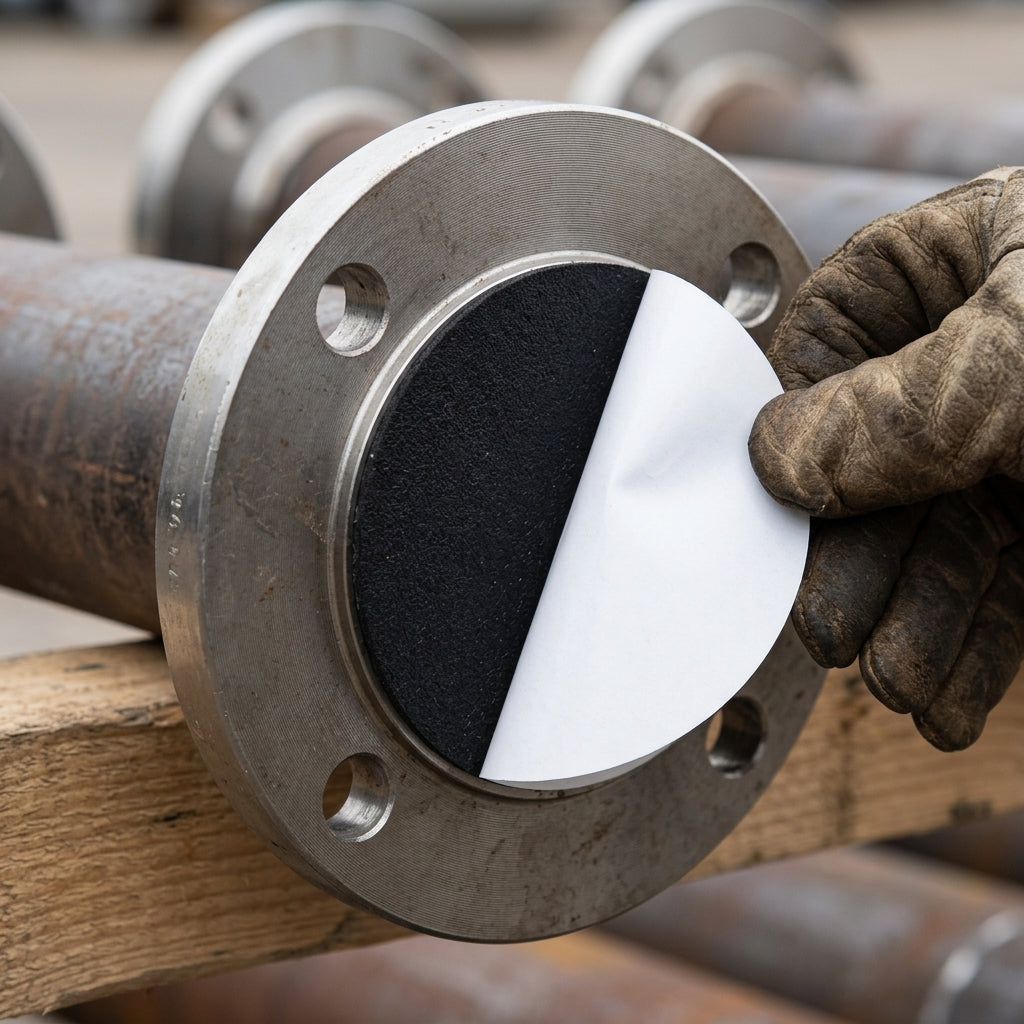

These protective discs are manufactured from 70 Shore neoprene rubber and adhere to the raised face of DIN flanges to seal the bore and shield the sealing surface from contamination, damage and moisture. The low-tack adhesive backing secures the disc firmly in place during storage and transport, yet peels away cleanly without leaving residue when removed.

Key Features

• 70 Shore neoprene rubber construction
• Low-tack self-adhesive backing for residue-free removal
• Full-face protection for DIN flange raised surfaces
• Resistant to heat, oils, acids, alkalis and petroleum products
• Operating temperature range −15 °C to +100 °C
• Suitable for flanges rated 6–160 bar

Specifications

• Standard: DIN
• Nominal size: DN 25
• Disc outer diameter: 68 mm
• Material: Neoprene rubber, 70 Shore
• Backing: Self-adhesive, low-tack
• Pressure rating: 6–160 bar
• Temperature range: −15 °C to +100 °C

Applications

• Protection of gasket faces during storage and handling
• Sealing and contamination prevention in transit
• Industrial pipework and plant maintenance
• Oil, gas and chemical processing plants
• Flange face preservation prior to assembly
