DN 65 Self Adhesive Flange Disc - 122mm, DIN

Self-adhesive neoprene rubber disc designed to protect DIN flange sealing surfaces during storage, transportation and installation.

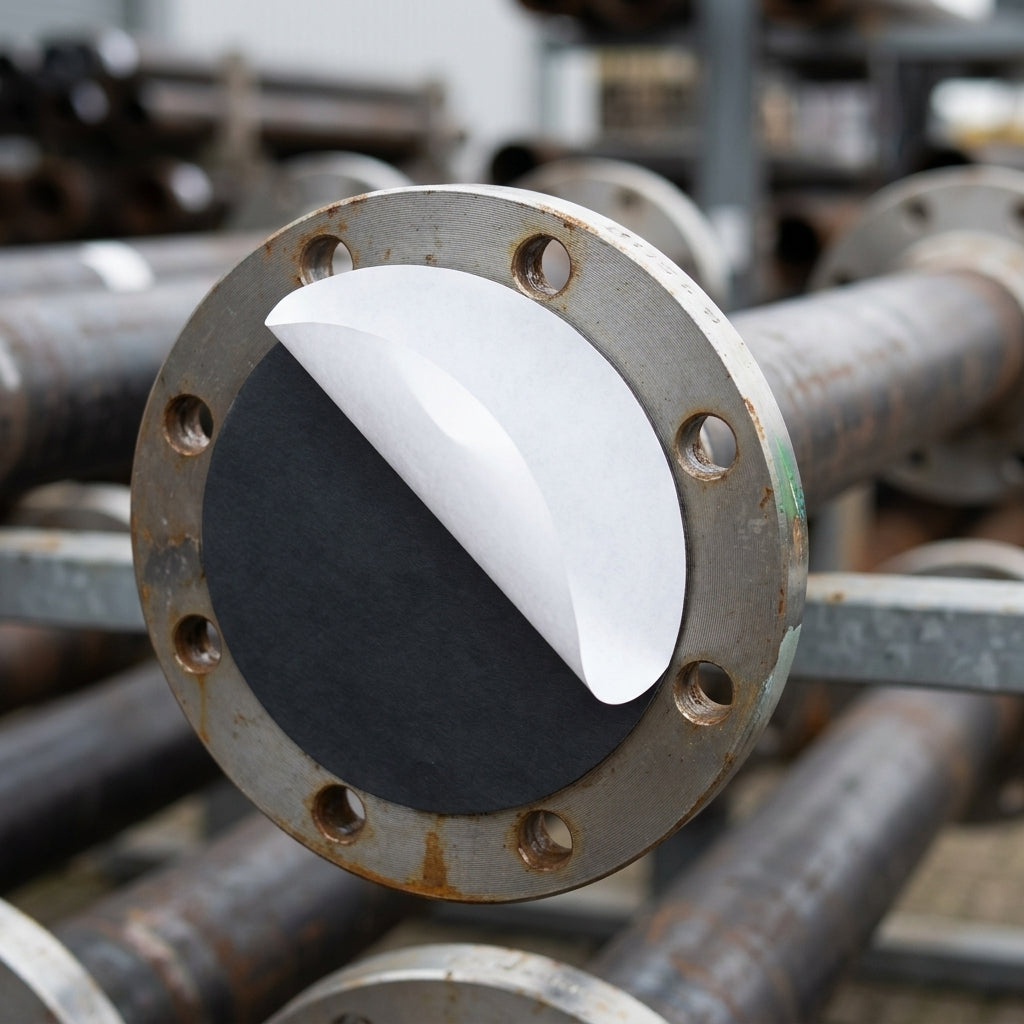

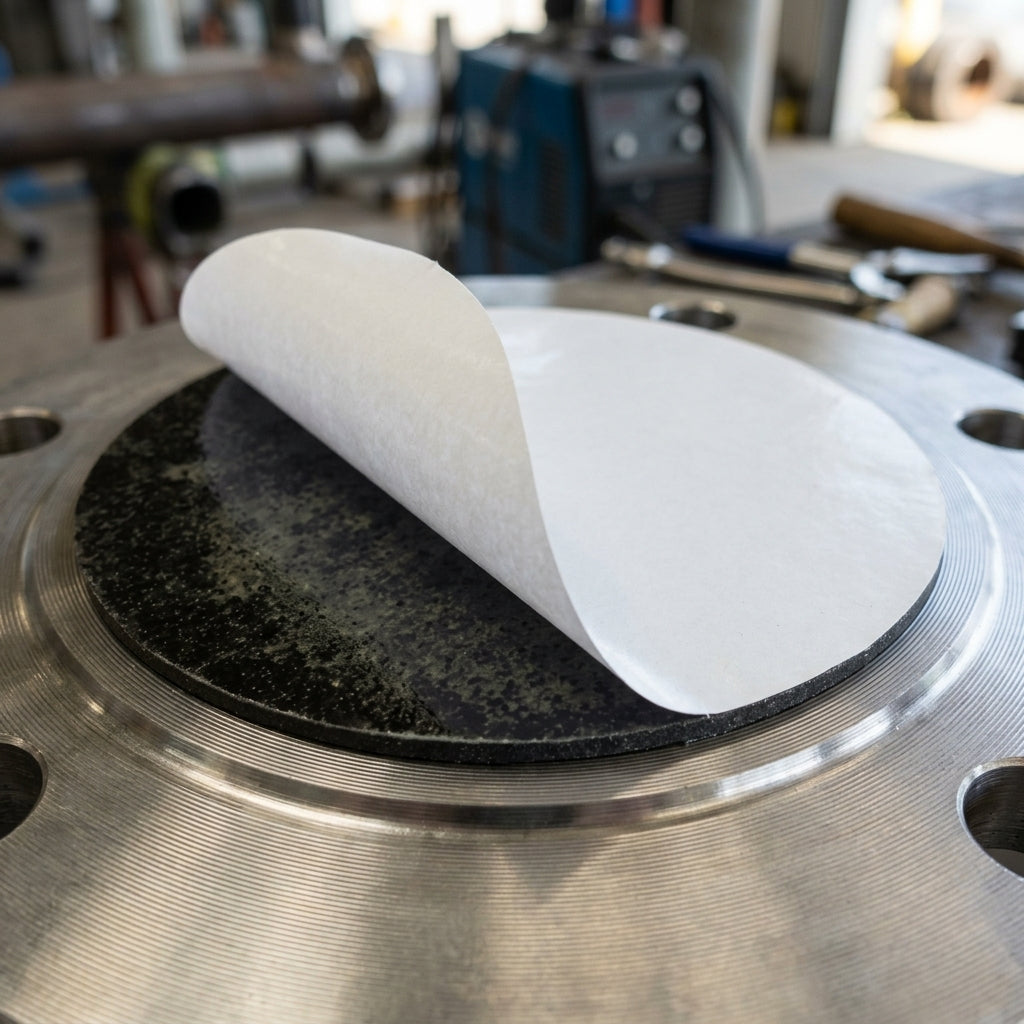

These flexible 70 Shore neoprene discs adhere to the raised face of DIN flanges to seal the bore and shield the gasket seating area from dirt, moisture and damage. The low-tack adhesive backing applies cleanly and leaves no residue on removal, making them ideal for frequent handling and reuse.

Key Features

• 70 Shore neoprene rubber construction
• Low-tack self-adhesive backing for clean application and removal
• Full-face protection for DIN flanges rated 6–160 bar
• Resistant to heat, oils, acids, alkalis and petroleum products
• Operating temperature range −15 °C to +100 °C
• Flexible, durable and reusable

Specifications

• Standard: DIN
• Nominal size: DN 65
• Disc diameter: 122 mm
• Material: 70 Shore neoprene rubber
• Backing: low-tack self-adhesive

Applications

• Protection of flange sealing surfaces during storage and warehousing
• Transit and logistics applications to prevent gasket face contamination
• Temporary bore sealing on inactive flanges
• On-site installation preparation and equipment commissioning
