Description

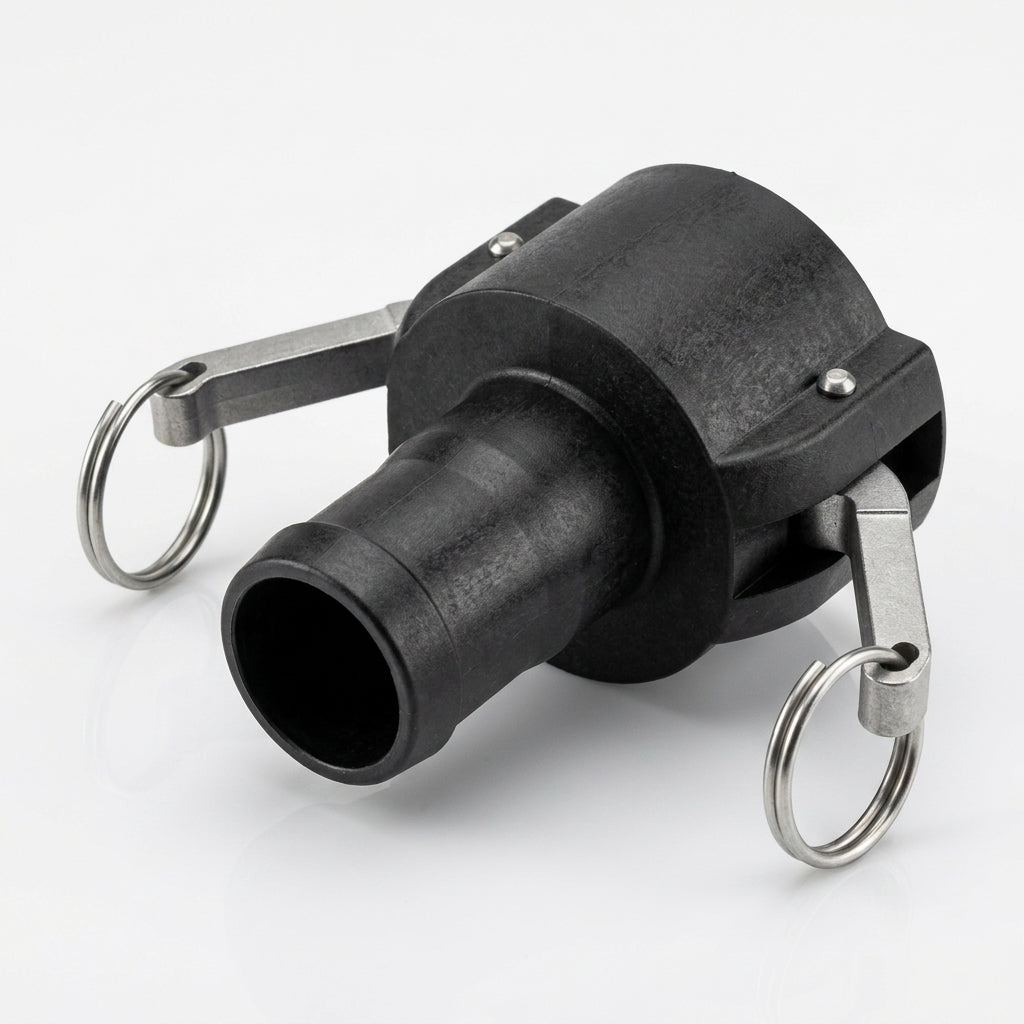

Polypropylene cam lever hose coupler with stainless steel operating mechanism, rated to 8.6 bar at 21.2°C.
This 1½" coupler features a hose barb inlet and mating socket outlet, designed for robust fluid-handling systems. The polypropylene body is reinforced with glass fibre, whilst the lever arms, retaining rings and hinge pins are machined from stainless steel for corrosion resistance. An EPDM gasket ensures a durable, leak-free seal across temperature variations.
Key Features
- Glass-reinforced polypropylene body
- Stainless steel cam lever arms, retaining rings and pins
- EPDM gasket seal
- 1½" hose barb inlet with 1½" coupler socket
- Pressure rating: 8.6 bar at 21.2°C (up to 6.4 bar at -17.8°C; down to 4.8 bar at 47.8°C)
- Compatible with standard 1½" adaptors
Specifications
- Body material: Glass-reinforced polypropylene
- Fastener material: Stainless steel (arms, rings, pins)
- Connection size: 1½" hose barb × 1½" coupler
- Gasket type: EPDM
- Maximum pressure (21.2°C): 8.6 bar
- Temperature range: -17.8°C to +47.8°C (pressure-dependent)

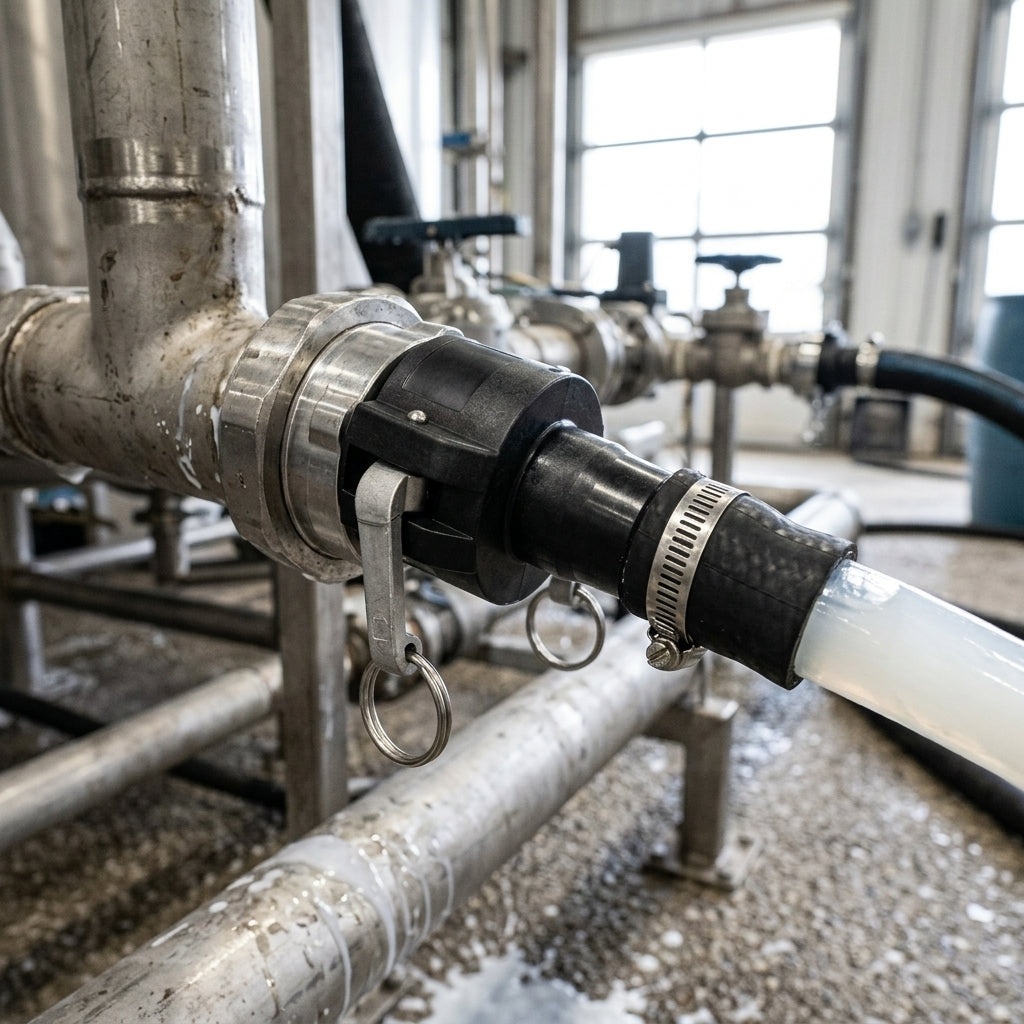

Applications
- Agricultural and industrial fluid transfer systems
- Water circulation and irrigation networks
- Chemical and cleaning solution distribution
- Fuel and lubricant delivery in mobile equipment
- Temporary coupling and quick-disconnect solutions
