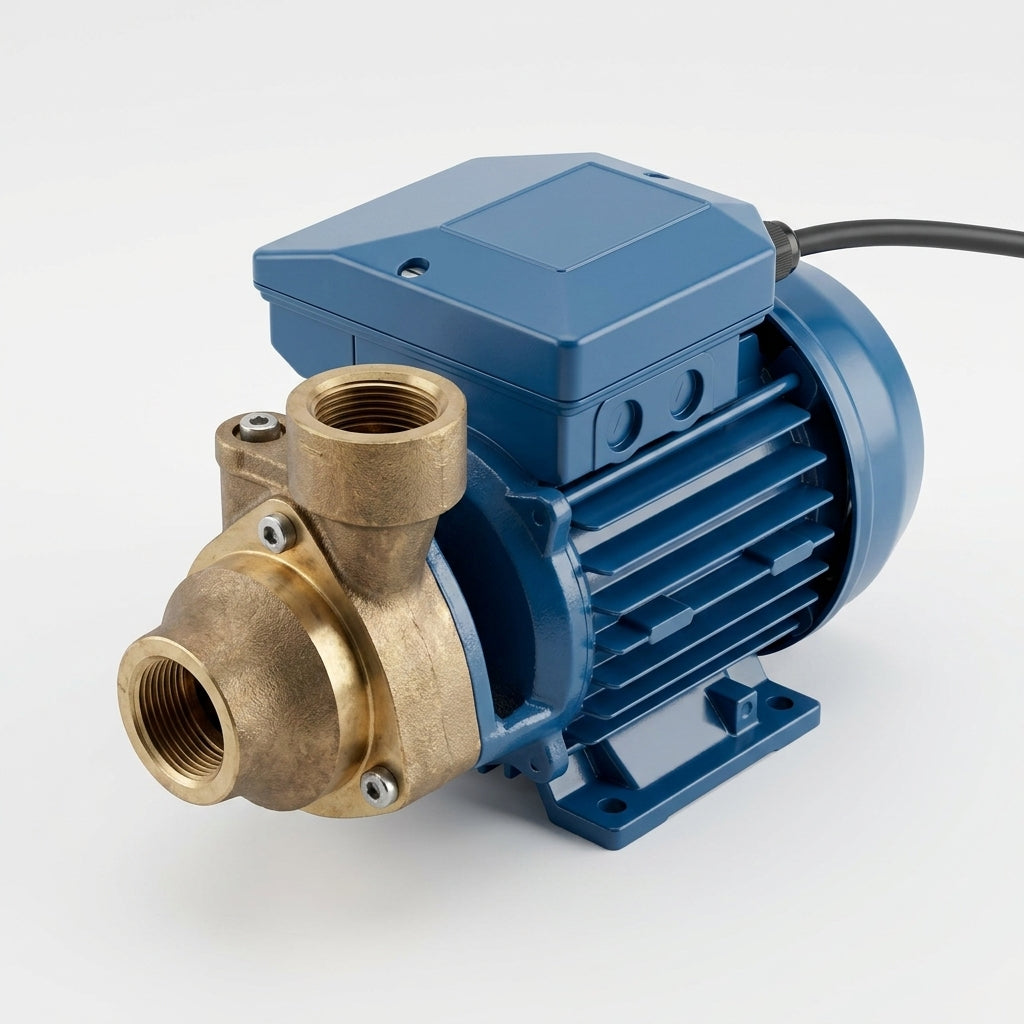

Peripheral Turbine Pump 40 L/min 0.37kW 230V 50Hz

High-pressure peripheral turbine pump designed for clean water boosting, irrigation and circulation duties.

This compact peripheral turbine pump delivers a maximum flow of 40 litres per minute with a 40-metre head rating, making it ideal for water pressure boosting, sprinkler systems and transfer applications. The brass impeller and housing construction ensures durability, whilst the 1" BSP female connections provide standard installation flexibility.

Key Features

• Peripheral turbine design for high-pressure, limited-flow applications
• Brass impeller and pump housing for corrosion resistance
• 40 L/min maximum flow rate
• 40 metres maximum head delivery
• 6 metres maximum suction lift (requires foot valve)
• 1" BSP female inlet and outlet connections

Specifications

• Power rating: 0.37kW
• Supply: 230V single-phase 50Hz
• Weight: 6.2kg
• Dimensions: 155 x 125 x 265mm (H x W x L)
• Maximum liquid temperature: 70°C
• Not self-priming

Applications

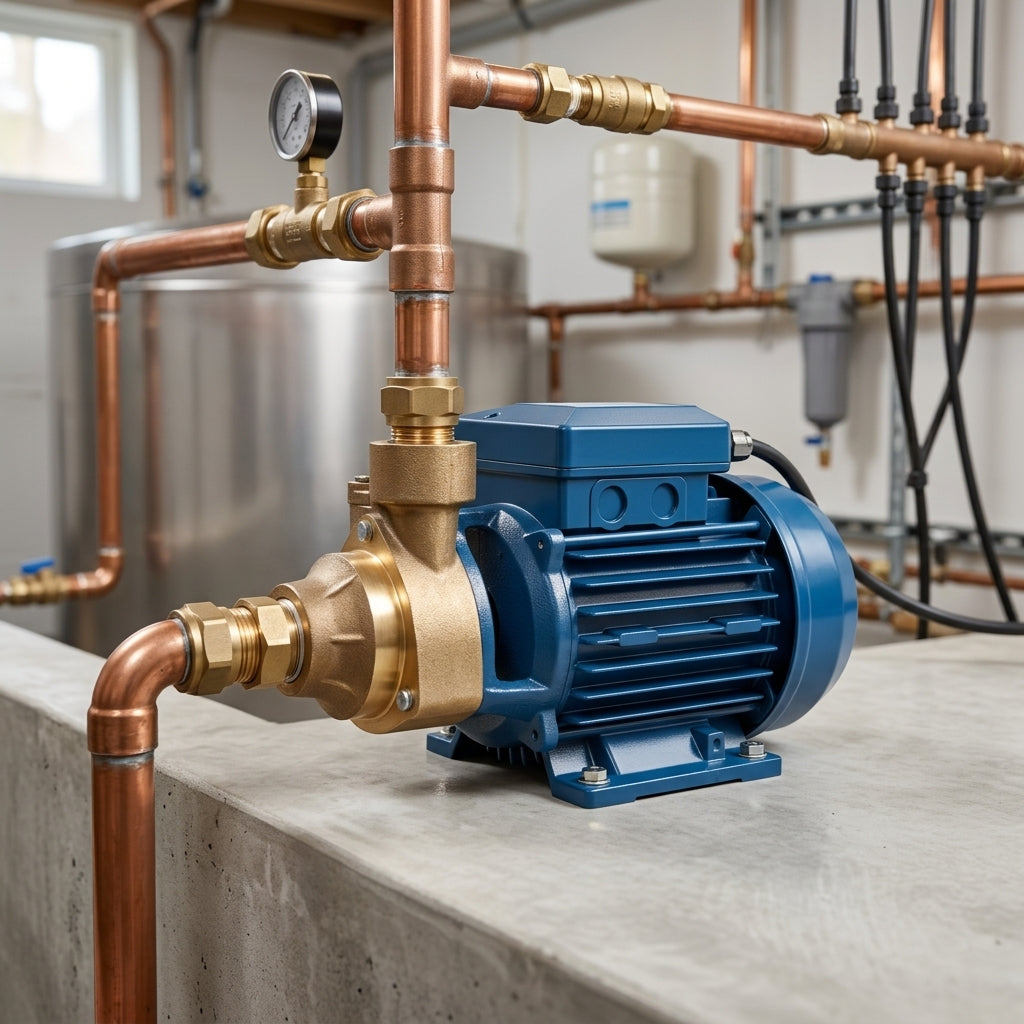

• Water pressure boosting systems
• Sprinkler and irrigation systems
• Water circulation and transfer
• Garden and smallholding water supply
• Domestic and light commercial use
