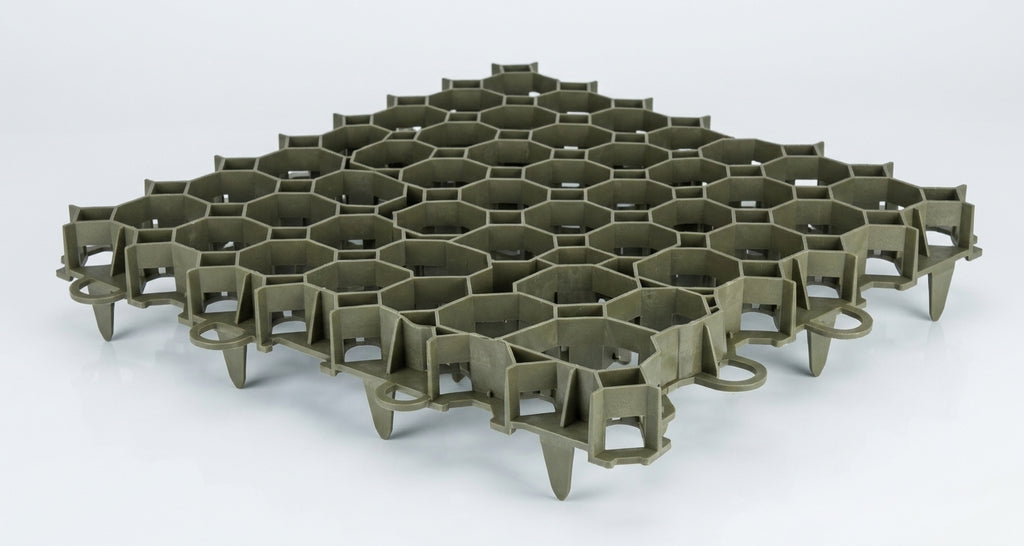

Plastic grass grid 490 x 490 x 40mm light-duty ground stabiliser

Lightweight plastic grass reinforcement grid for soil stabilisation and water drainage.

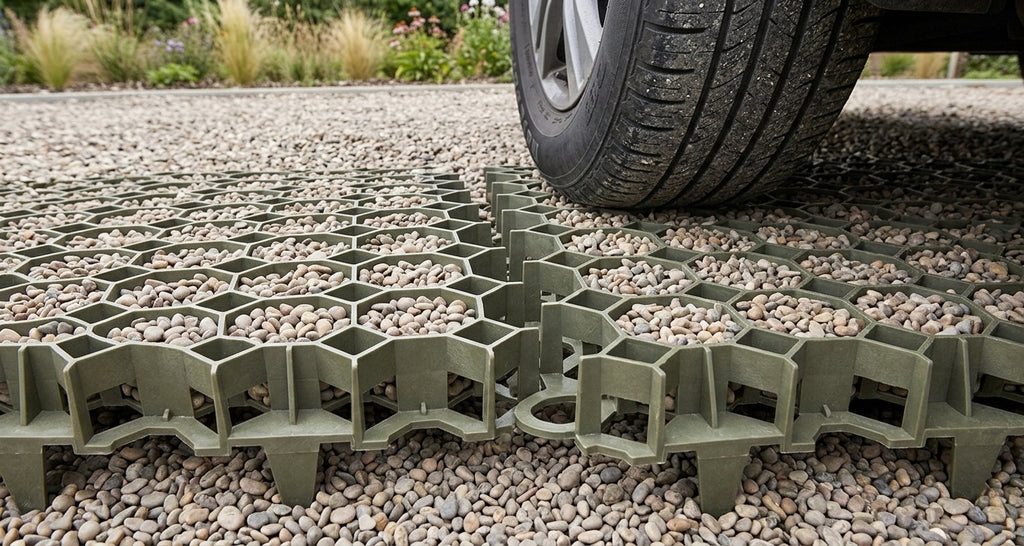

This interlocking modular grid is engineered to strengthen soil, improve ground stability and manage surface water dispersal. Manufactured from recycled high-density polyethylene, it combines durability with environmental responsibility. The geometric open-cell design allows grass to grow through whilst supporting vehicle and foot traffic loads up to 160 tonnes.

Key Features

• 490 × 490 × 40mm modular format (4.4 tiles per sqm)
• Load-bearing capacity: 160 tonnes maximum
• 100% recycled high-density polyethylene construction
• Eight interlocking latches for fast grid-to-grid connection
• Four ground anchoring pins included for permanent fixing
• UV-stabilised and weather-resistant finish
• Geometric design promotes water dispersal and grass growth in all directions

Specifications

• Material: 100% recycled HDPE
• Colour: Green
• Dimensions per unit: 490 × 490 × 40mm
• Coverage per module: 0.24 sqm
• Weight: Light-duty classification
• Interlocking system: 8 latches per grid
• Anchoring: 4 pins per module

Applications

• Sustainable urban drainage systems (SUDS) and flood management
• Grass reinforcement on slopes and embankments
• Temporary and permanent parking areas
• Emergency vehicle access routes
• Garden pathways and lawn stabilisation
