Description

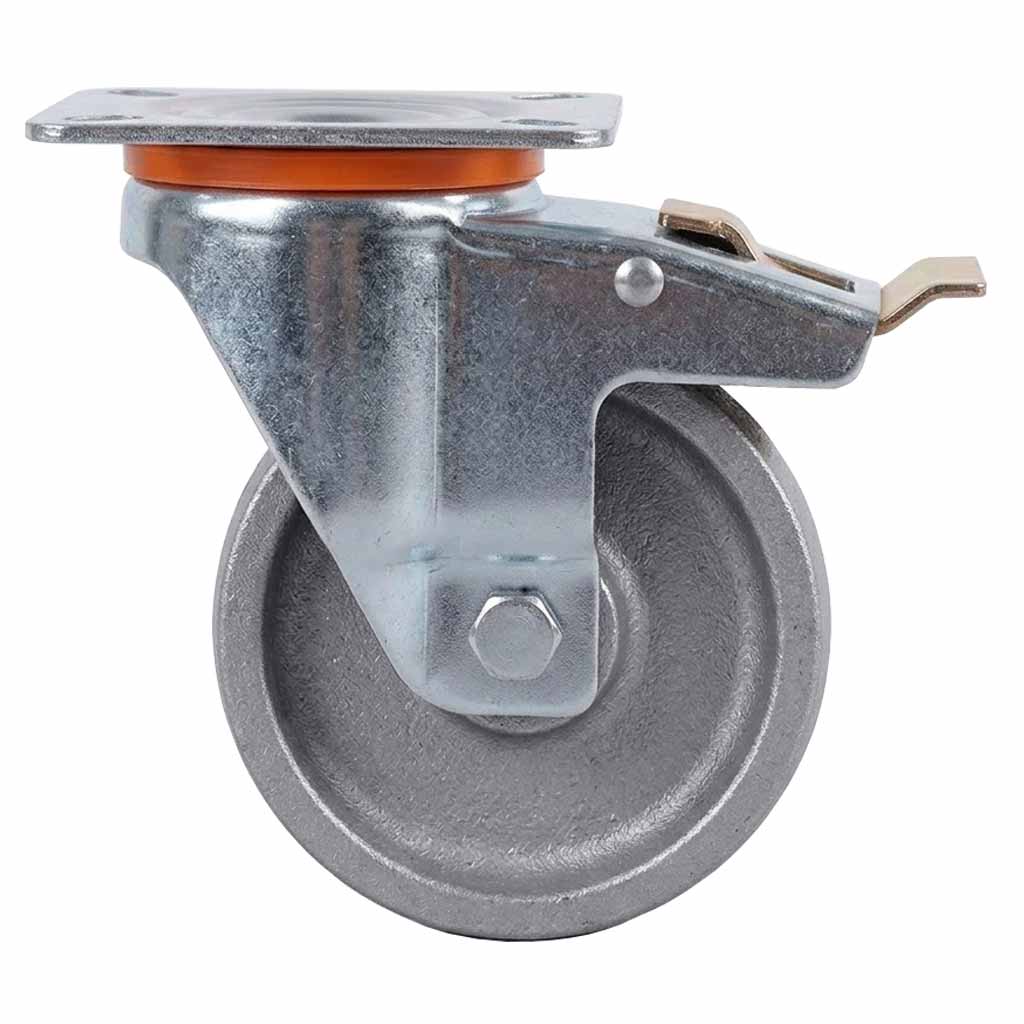

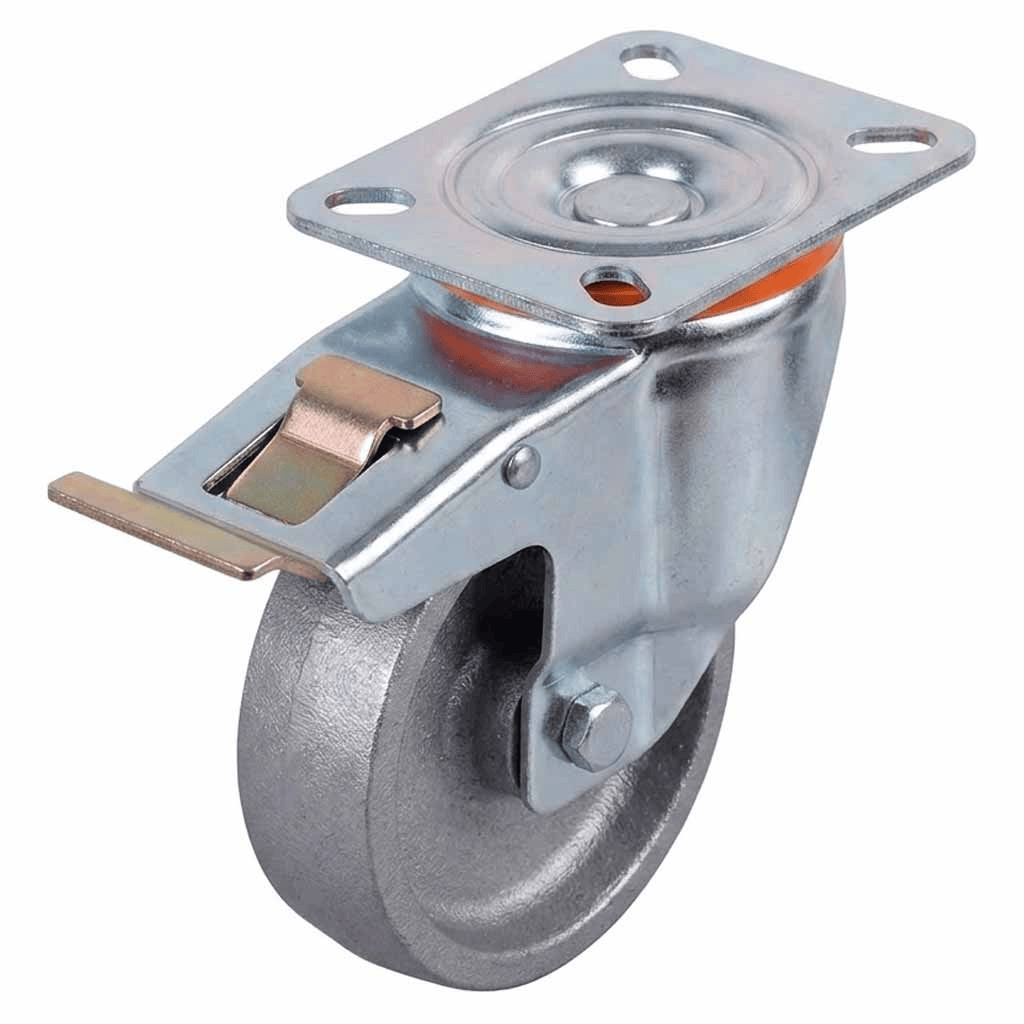

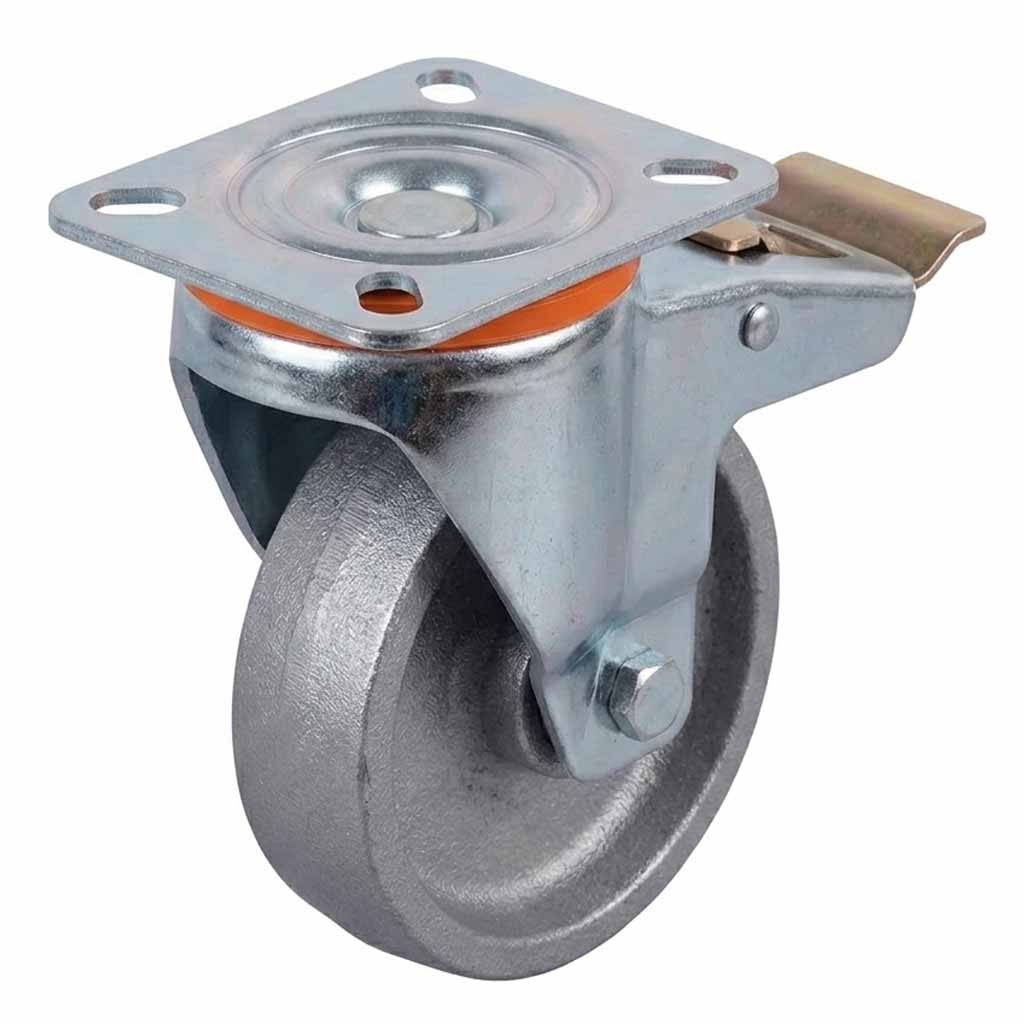

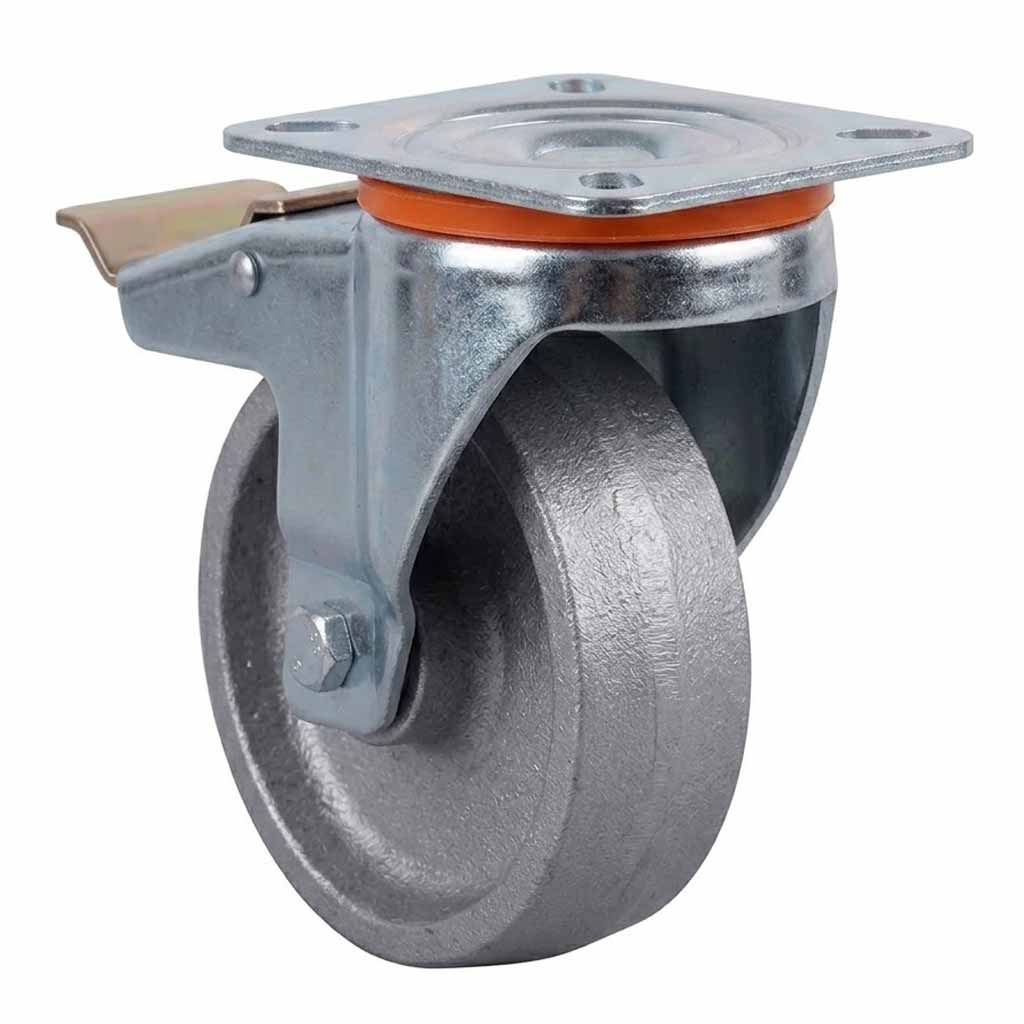

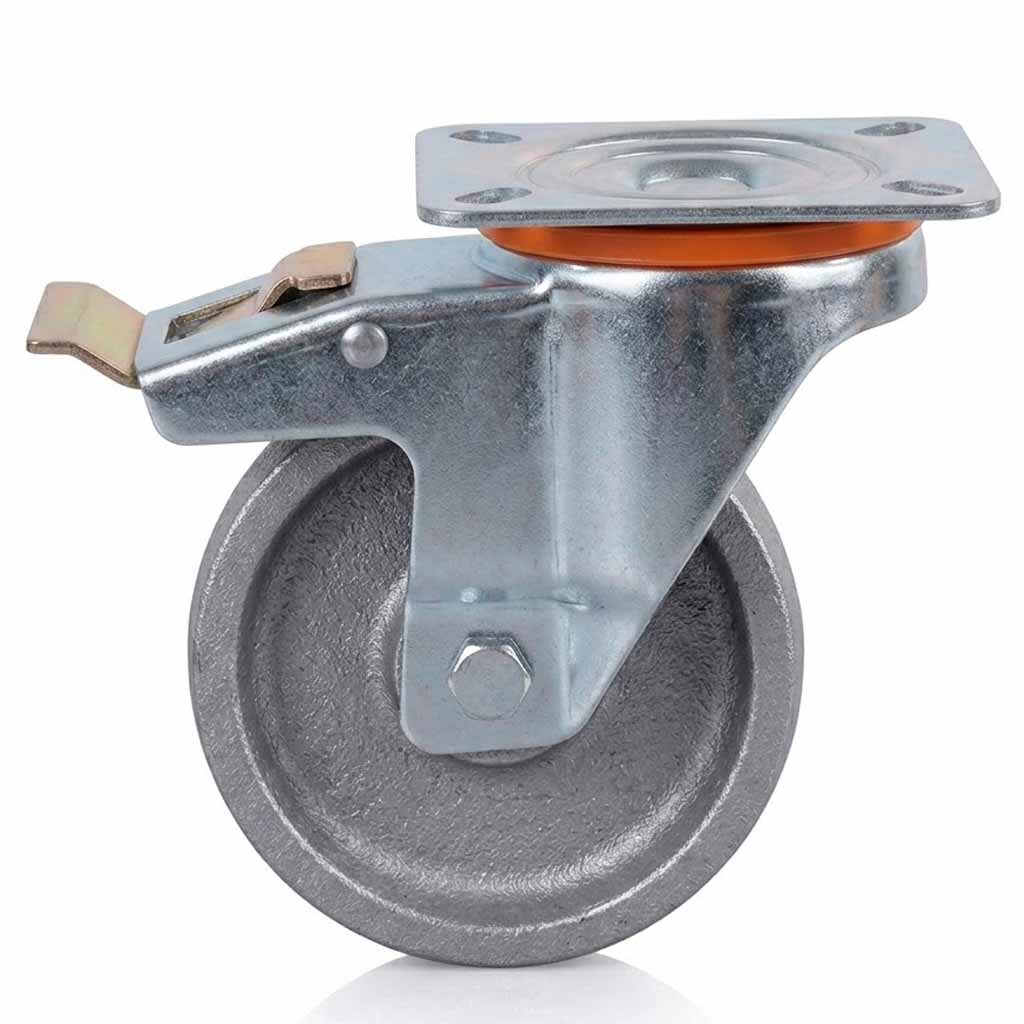

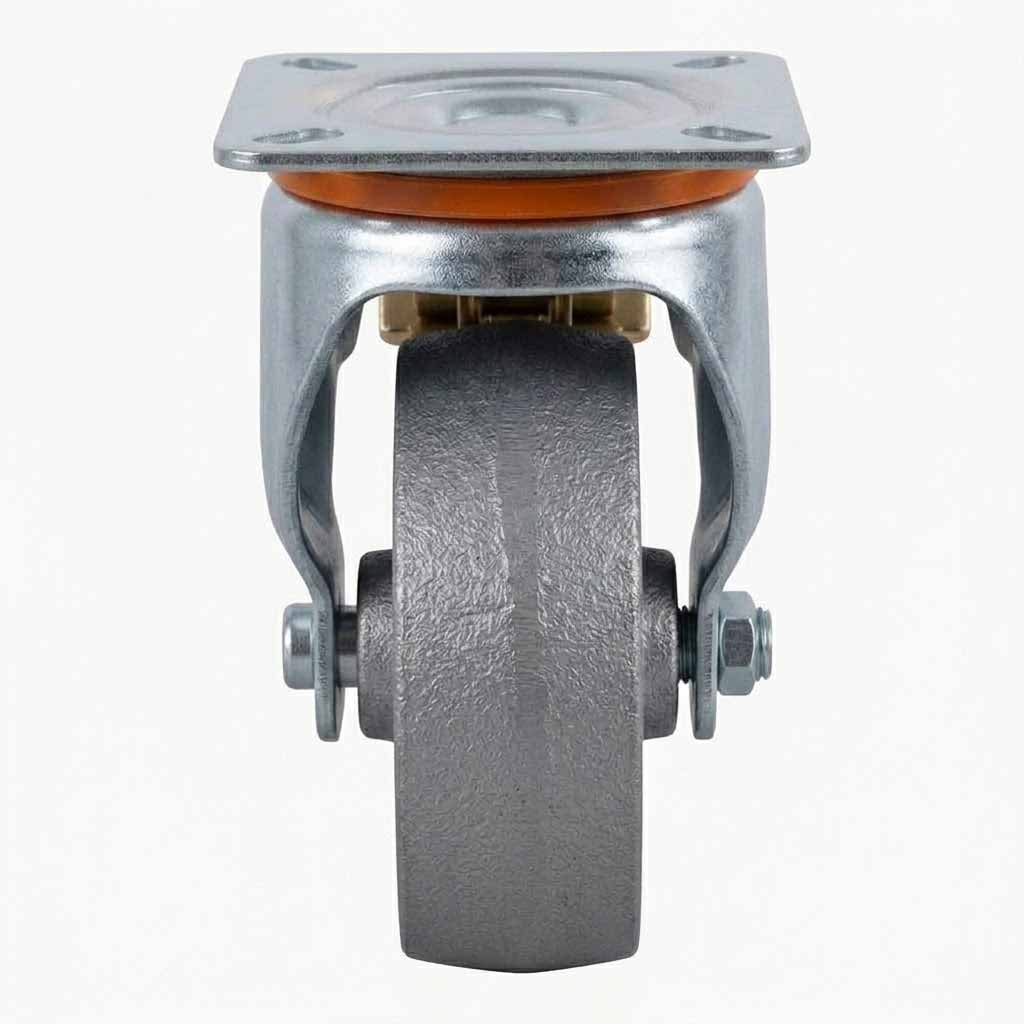

Pressed Steel Braked Swivel Castors With Grey Cast Iron Wheel
Available in 80mm & 100mm Wheel Diameter — UK Stock, Ready to Dispatch
These pressed steel braked swivel castors are fitted with a grey cast iron wheel and a directional brake, making them a dependable choice wherever controlled mobility is essential. Constructed with a white zinc-plated pressed steel bracket, double ball bearing swivel head, plastic dust guard, and a wheel axle secured with bolt and nut, each castor is built to perform reliably across industrial, commercial, and workshop environments. Available in two wheel diameters — 80mm with a 120kg load capacity, and 100mm with a 140kg load capacity — both options share a standardised 4-hole top plate for straightforward fitting to trolleys, carts, benches, and mobile equipment.
Available in Multiple Castor Wheel Sizes & Types
Explore this castor wheel's different types, and also Available in multiple sizes. Choose the options below.
Quick Comparison — All Options at a Glance
| Specification | 80mm Wheel Option | 100mm Wheel Option |
|---|---|---|
| Wheel Diameter | 80 mm | 100 mm |
| Wheel Colour | Grey | Grey |
| Wheel Material | Cast Iron | Cast Iron |
| Tread Width | 30 mm | 30 mm |
| Tread Hardness | 85 Shore A | 85 Shore A |
| Bearing Type | Ball Journal | Ball Journal |
| Load Capacity (per castor) | 120 kg | 140 kg |
| Max Load (set of 4) | 360 kg | 420 kg |
| Total Castor Height (fitted) | 106 mm | 127 mm |
| Bracket Material | Pressed Steel | Pressed Steel |
| Bracket Finish | White Zinc Plated | White Zinc Plated |
| Brake Type | Directional Brake | Directional Brake |
| Castor Type | Top Plate (4-Hole) | Top Plate (4-Hole) |
| Top Plate Length | 100 mm | 100 mm |
| Top Plate Width | 85 mm | 85 mm |
| Hole Centres (Long) | 80 mm | 80 mm |
| Hole Centres (Short) | 60 mm | 60 mm |
| Hole Diameter | 10 mm | 10 mm |
| Number of Fixing Holes | 4 | 4 |
| Dust Guard | Plastic | Plastic |
| Wheel Axle Fixing | Bolt & Nut | Bolt & Nut |
Detailed Specifications by Option

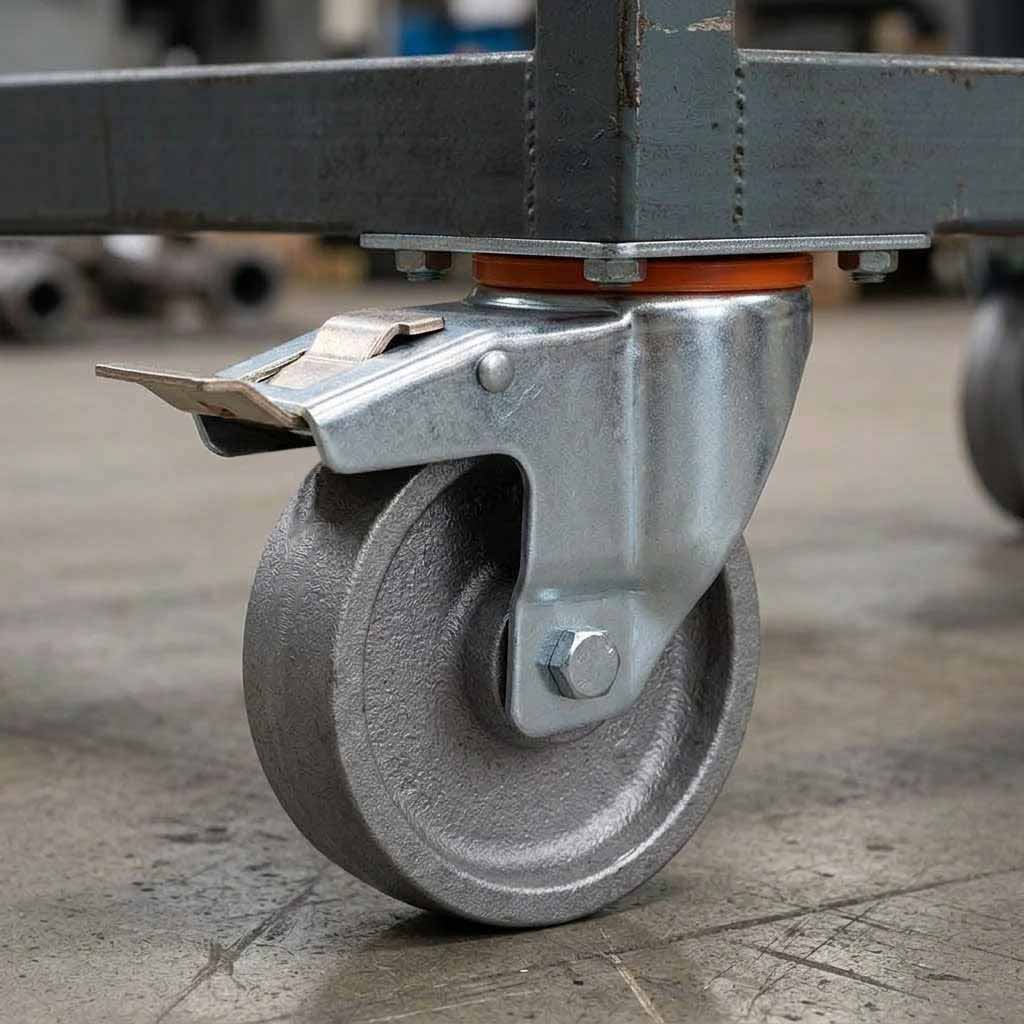

80mm Pressed Steel Swivel Castor with Brake
Grey Cast Iron Wheel — 4-Hole Top Plate — 120 kg Max LoadFull Technical Specifications
| Castor Type | Top Plate Swivel with Brake |
| Wheel Diameter | 80 mm |
| Wheel Material | Cast Iron |
| Wheel Colour | Grey |
| Tread Width | 30 mm |
| Tread Hardness | 85 Shore A |
| Bearing Type | Ball Journal |
| Brake Type | Directional Brake |
| Load Capacity (per castor) | 120 kg |
| Max Load (set of 4) | 360 kg |
| Total Castor Height (fitted) | 106 mm |
| Bracket Material | Pressed Steel |
| Bracket Finish | White Zinc Plated |
| Top Plate Length | 100 mm |
| Top Plate Width | 85 mm |
| Hole Centres (Long) | 80 mm |
| Hole Centres (Short) | 60 mm |
| Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
| Dust Guard | Plastic |
| Wheel Axle Fixing | Bolt & Nut |
Typical Applications
- Workshop tool trolleys and mobile workbenches requiring controlled positioning
- Light industrial equipment stands where brake-lock stability is essential
- Commercial kitchen prep tables and mobile catering units
- Office and retail furniture requiring occasional repositioning with secure lock
- Storage racking and shelving units in warehouses and stockrooms
- Hospitality trolleys, service carts, and housekeeping equipment

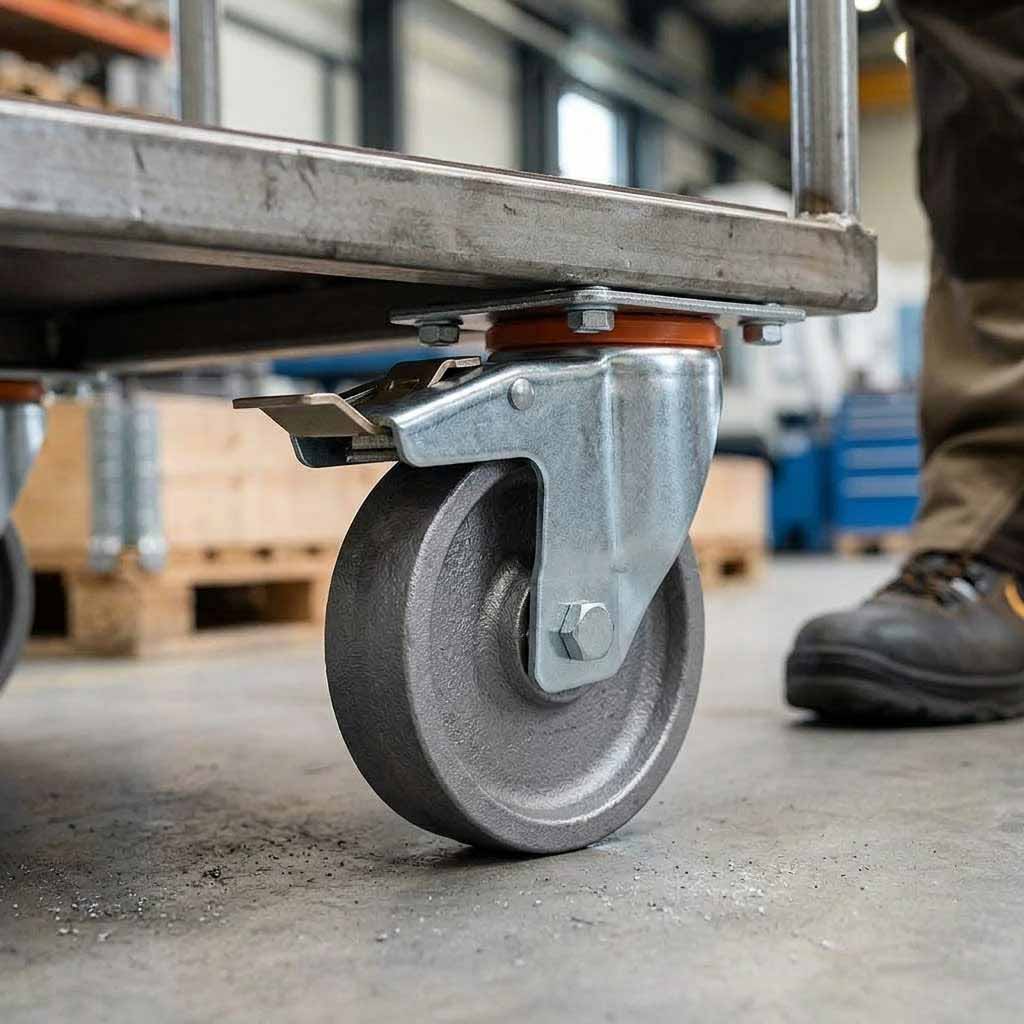

100mm Pressed Steel Swivel Castor with Brake
Grey Cast Iron Wheel — 4-Hole Top Plate — 140 kg Max LoadFull Technical Specifications
| Castor Type | Top Plate Swivel with Brake |
| Wheel Diameter | 100 mm |
| Wheel Material | Cast Iron |
| Wheel Colour | Grey |
| Tread Width | 30 mm |
| Tread Hardness | 85 Shore A |
| Bearing Type | Ball Journal |
| Brake Type | Directional Brake |
| Load Capacity (per castor) | 140 kg |
| Max Load (set of 4) | 420 kg |
| Total Castor Height (fitted) | 127 mm |
| Bracket Material | Pressed Steel |
| Bracket Finish | White Zinc Plated |
| Top Plate Length | 100 mm |
| Top Plate Width | 85 mm |
| Hole Centres (Long) | 80 mm |
| Hole Centres (Short) | 60 mm |
| Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
| Dust Guard | Plastic |
| Wheel Axle Fixing | Bolt & Nut |
Typical Applications
- Heavy-duty warehouse trolleys and goods transport carts carrying substantial loads
- Industrial machinery bases and equipment platforms requiring secure brake-lock
- Manufacturing and assembly line mobile workstations
- Retail display units and gondola shelving requiring flexible floor layouts
- Facilities management equipment including cleaning trolleys and maintenance carts
- Workshop and garage equipment stands where a larger wheel aids floor clearance
Key Features & Construction Highlights
- Pressed steel bracket, white zinc plated for corrosion resistance
- Double ball bearing swivel head for smooth, low-effort rotation
- Grey cast iron wheel — hard-wearing and suitable for firm floor surfaces
- Directional brake locks wheel movement for controlled stationary positioning
- Ball journal bearing type for reduced rolling resistance
- 85 Shore A tread hardness — firm grip with floor-protective performance
- Standardised 4-hole top plate — 100 x 85 mm with 10 mm fixing holes
- Dual hole centre spacing (60 mm and 80 mm) for broad mounting compatibility
- Plastic dust guard protects the swivel bearing from debris ingress
- Wheel axle secured with bolt and nut for a robust, rattle-free assembly
- Available in 80mm (106mm total height) and 100mm (127mm total height)
- Sold individually — order the quantity required for your application
UK Stock Top Plate Fitting Directional Brake Cast Iron Wheel Ball Journal Bearing 4-Hole Plate
Frequently Asked Questions
What is the difference between the 80mm and 100mm options, and how do I choose?
The primary differences are wheel diameter, total fitted height, and load capacity. The 80mm castor has a total height of 106mm and supports up to 120kg per castor (360kg for a set of four), making it well suited to lighter trolleys, benches, and commercial furniture. The 100mm castor stands 127mm tall and carries up to 140kg per castor (420kg for a set of four), making it the better choice for heavier warehouse trolleys, industrial carts, and equipment platforms. If floor clearance or load capacity is a priority, choose the 100mm option. Both share identical top plate dimensions and hole centres, so they are interchangeable from a fitting perspective.

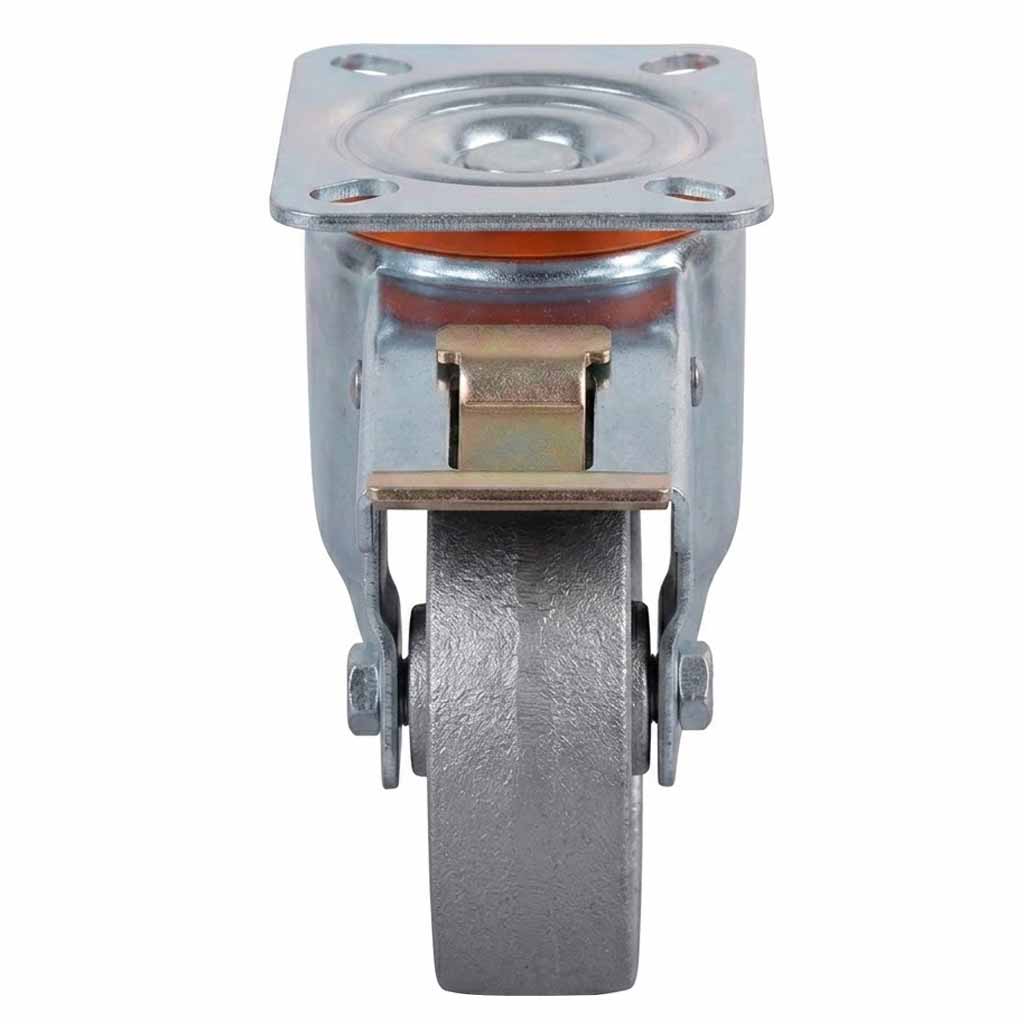

How does the directional brake work on these castors?
The directional brake is a foot-operated mechanism that, when engaged, locks the wheel to prevent it from rolling. This keeps the castor — and the equipment it is fitted to — stationary on the floor. Unlike a total-lock brake that also immobilises the swivel head, a directional brake allows the swivel to remain free while stopping forward and backward wheel movement. This is particularly useful on trolleys and carts where you want to hold a position without fully fixing the unit in place. To release, simply press or lift the brake lever with your foot.
Are these castors suitable for use on hard floors such as concrete, tiles, or resin?
Yes. Cast iron wheels with an 85 Shore A tread hardness are designed for use on hard, smooth, and semi-smooth floor surfaces including concrete, stone, ceramic tile, and sealed resin floors. They perform well in warehouses, workshops, factories, and commercial kitchens where firm flooring is standard. Cast iron wheels are not recommended for use on soft or delicate floor coverings such as carpet, vinyl, or polished hardwood, as the hard tread may cause surface marking or indentation under load.
What fixings do I need to fit these castors, and are they compatible with my existing equipment?
Both the 80mm and 100mm castors use a standardised 4-hole top plate measuring 100mm x 85mm, with hole centres of 80mm (long axis) and 60mm (short axis), and a hole diameter of 10mm. You will need four M10 bolts, washers, and nuts (not supplied) to secure each castor to your equipment. Before ordering, measure the existing hole pattern on your trolley, cart, or frame to confirm compatibility with these dimensions. The shared plate size across both variants means you can mix or upgrade between the 80mm and 100mm options without modifying your mounting surface.
