Description

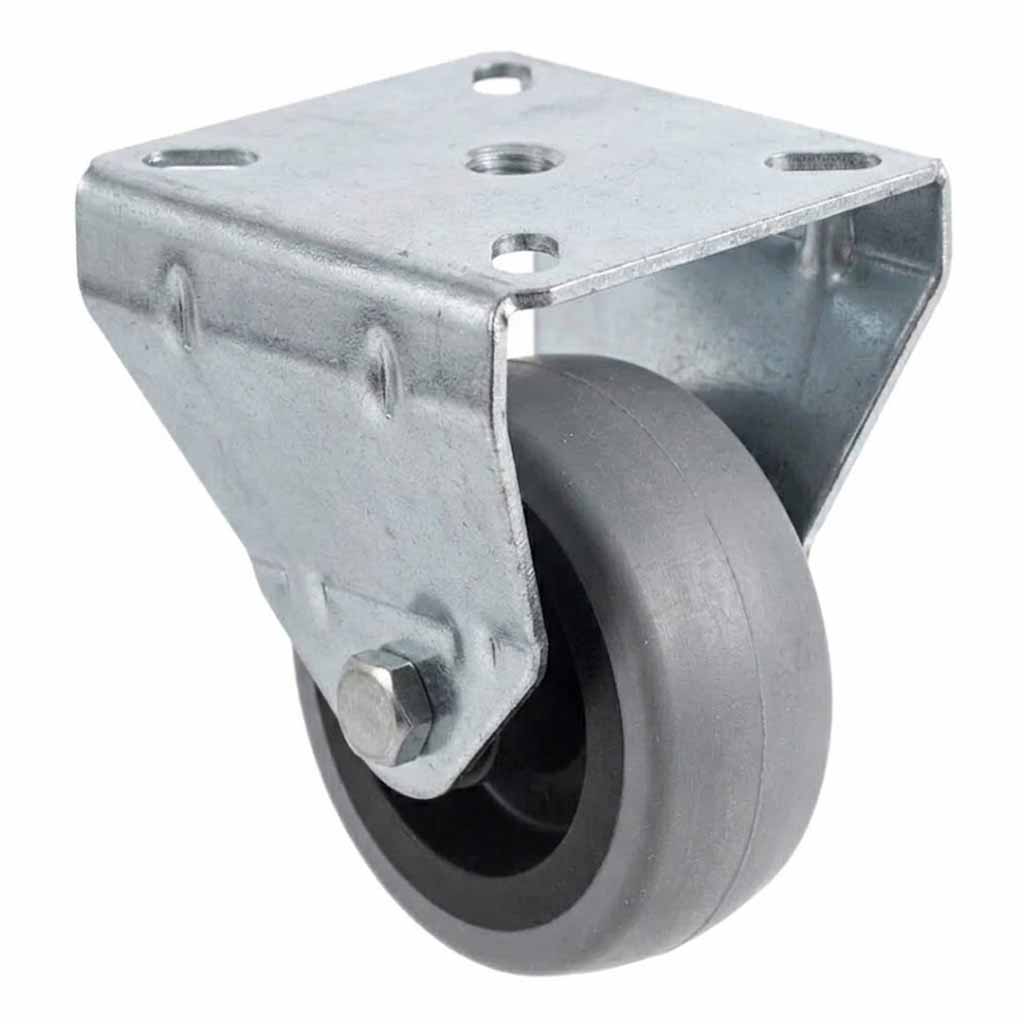

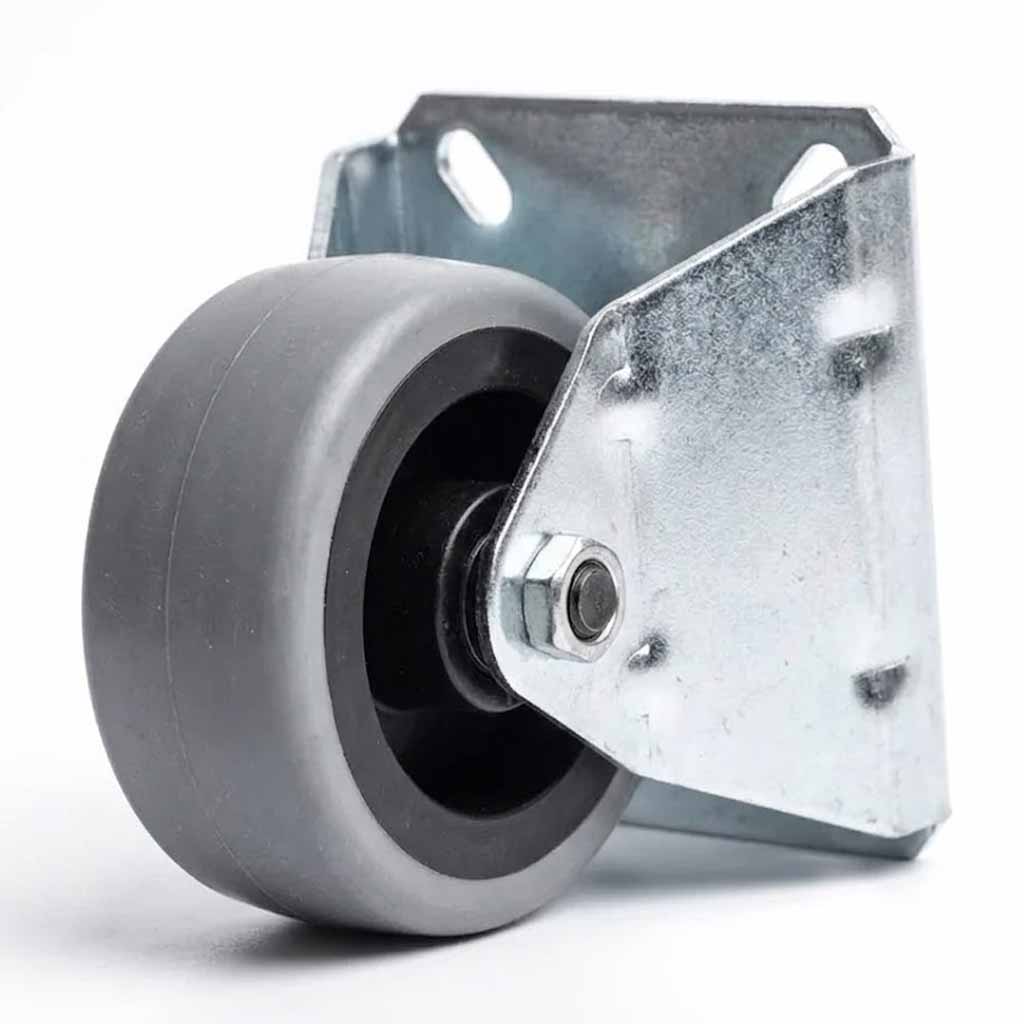

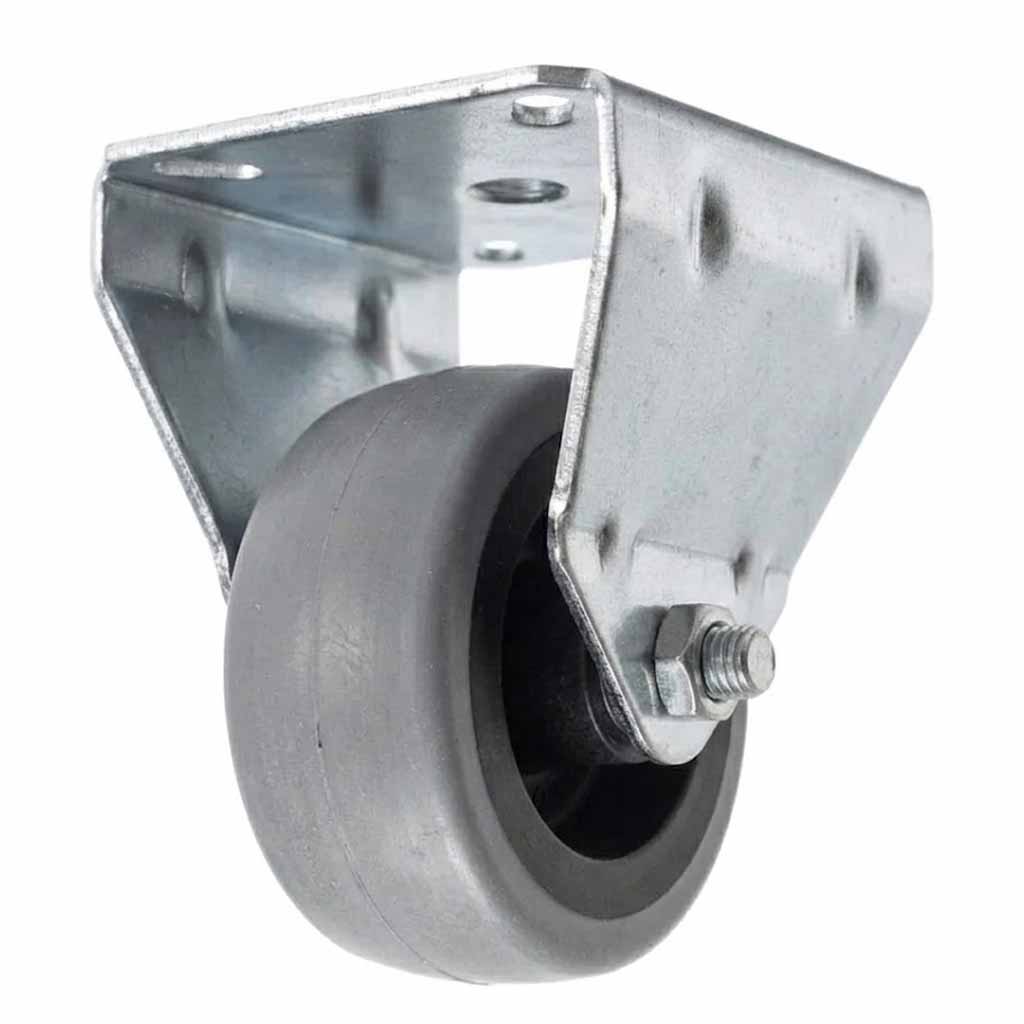

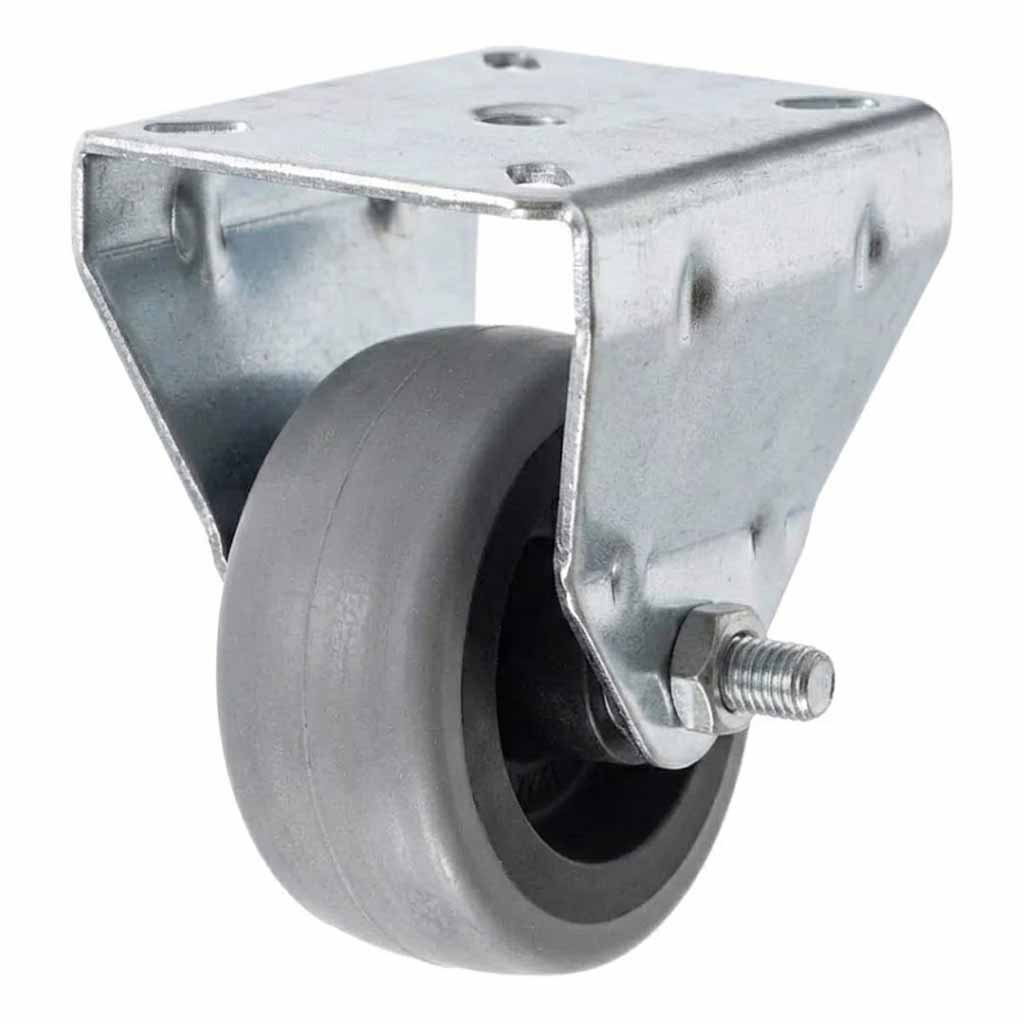

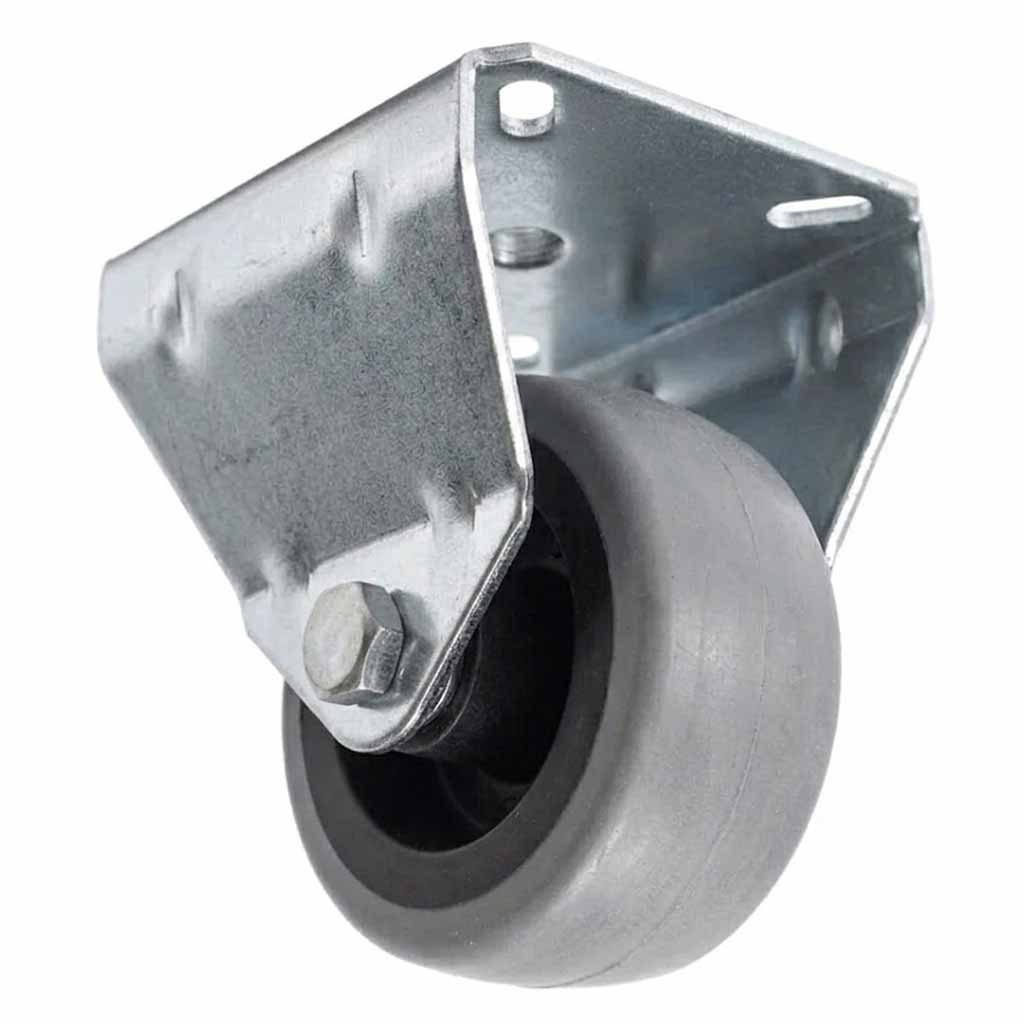

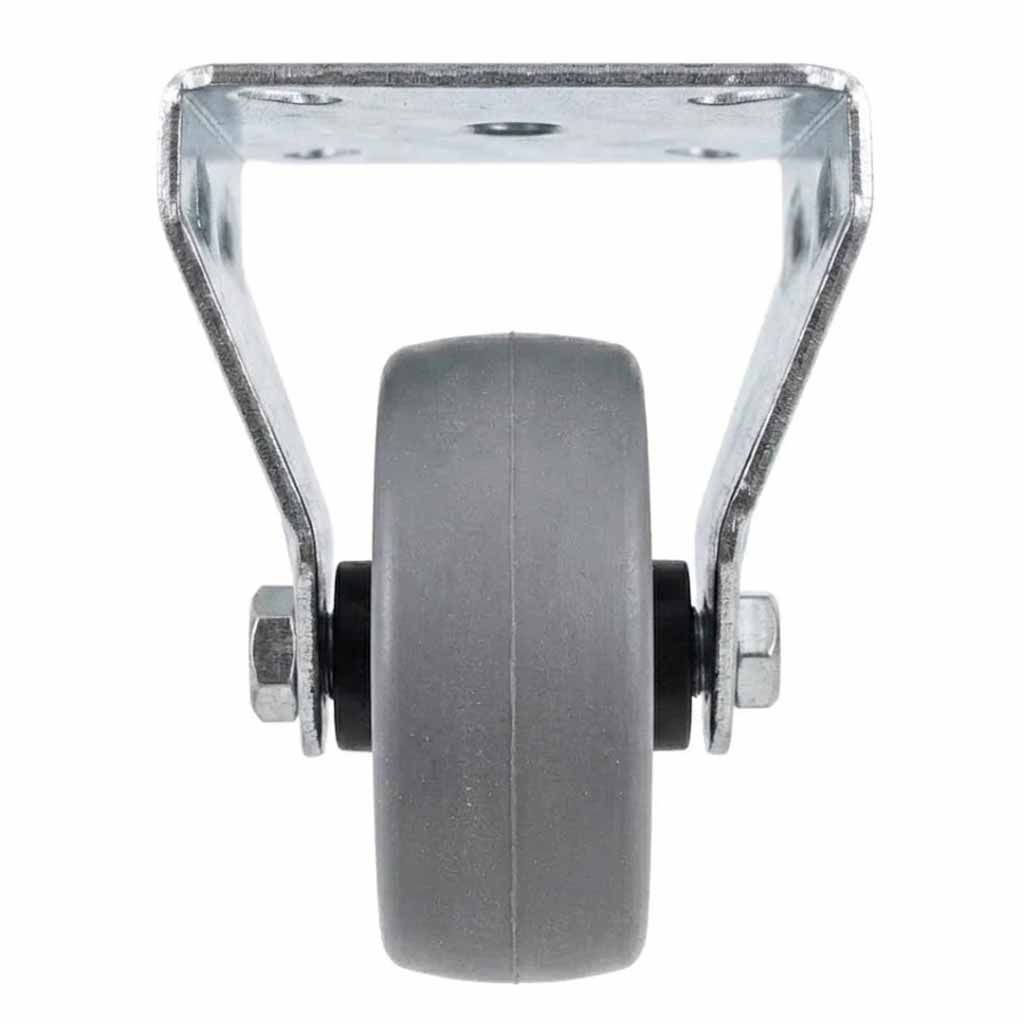

Pressed Steel Fixed Castors — Grey Rubber on Black Polypropylene Wheel
A robust, directionally fixed castor designed for controlled, straight-line movement of furniture, equipment trolleys, and industrial platforms. Constructed with a pressed steel top plate and a dual-compound wheel combining a grey rubber tread over a black polypropylene core, these castors deliver quiet, floor-friendly rolling performance across a wide range of indoor surfaces. Available in three wheel diameters — 50mm, 75mm, and 100mm — each size is load-rated and ready to dispatch from UK stock.
Available in Multiple Castor Wheel Sizes & Types
Explore this castor wheel's different types, and also Available in multiple sizes. Choose the options below.
Quick Comparison — All Options at a Glance
| Specification | 50mm — 60 kg | 75mm — 70 kg | 100mm — 80 kg |
|---|---|---|---|
| Wheel Diameter | 50 mm | 75 mm | 100 mm |
| Load Capacity (per castor) | 60 kg | 70 kg | 80 kg |
| Max Load (set of 4) | 180 kg | 210 kg | 240 kg |
| Total Height | 72 mm | 100 mm | 122 mm |
| Tread Width | 24 mm | 24 mm | 24 mm |
| Wheel Material | Grey Rubber on Black Polypropylene | Grey Rubber on Black Polypropylene | Grey Rubber on Black Polypropylene |
| Plate Material | Pressed Steel | Pressed Steel | Pressed Steel |
| Fixing Type | 4-Bolt Hole Top Plate | 4-Bolt Hole Top Plate | 4-Bolt Hole Top Plate |
| Castor Type | Fixed (Non-Swivel) | Fixed (Non-Swivel) | Fixed (Non-Swivel) |
| Typical Use | Furniture, domestic equipment | Workshops, retail, light warehousing | Industrial platforms, heavy equipment |
* Load ratings are per individual castor. For a 4-castor fitting, multiply the single-castor rating by 3 (not 4) to allow a safety margin for uneven load distribution.
Detailed Specifications

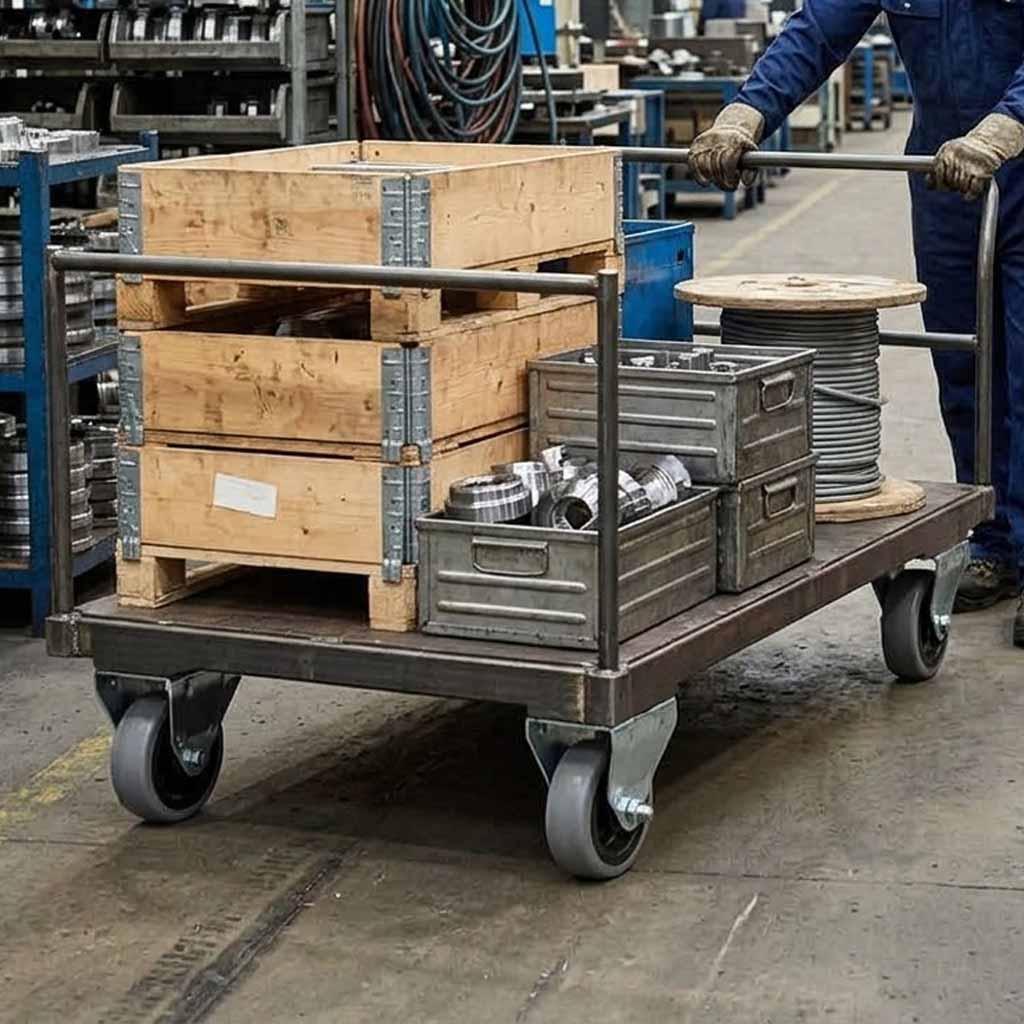

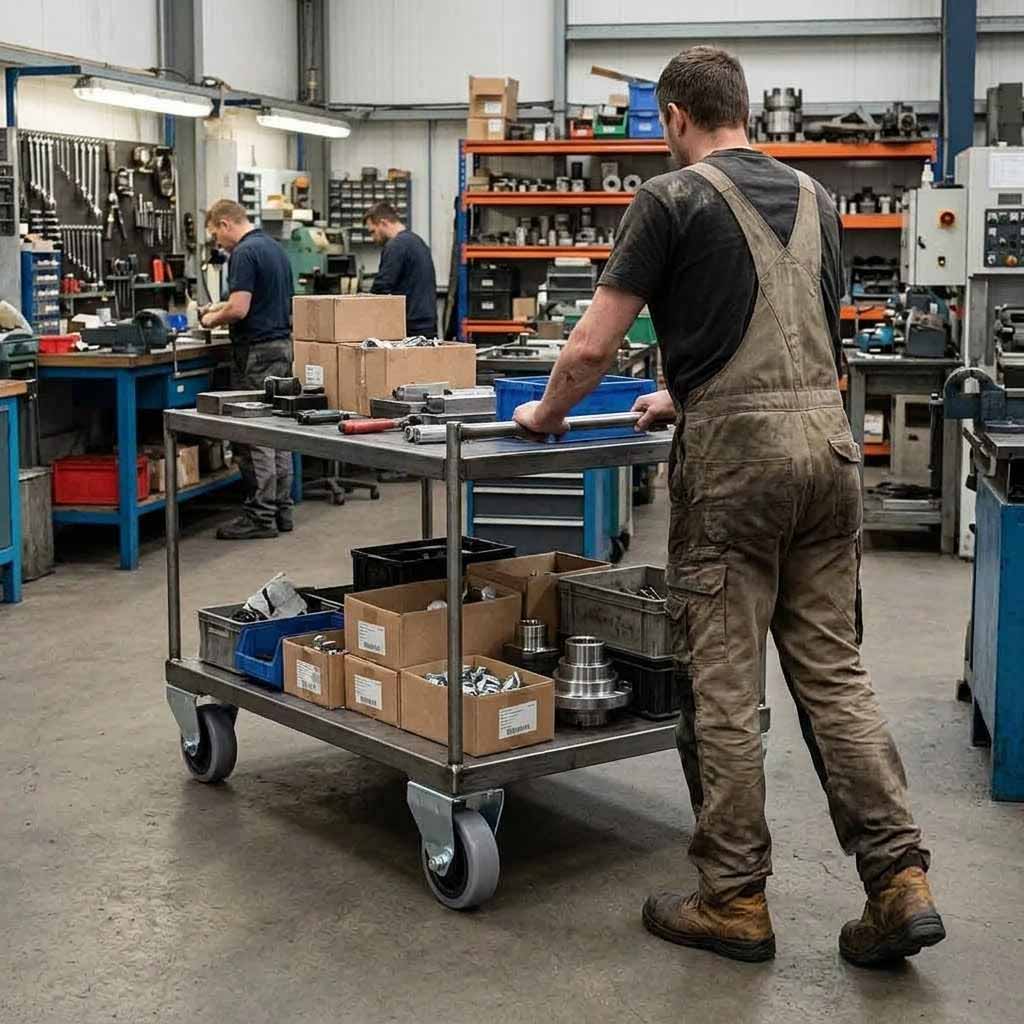

50mm Wheel — 60 kg Load

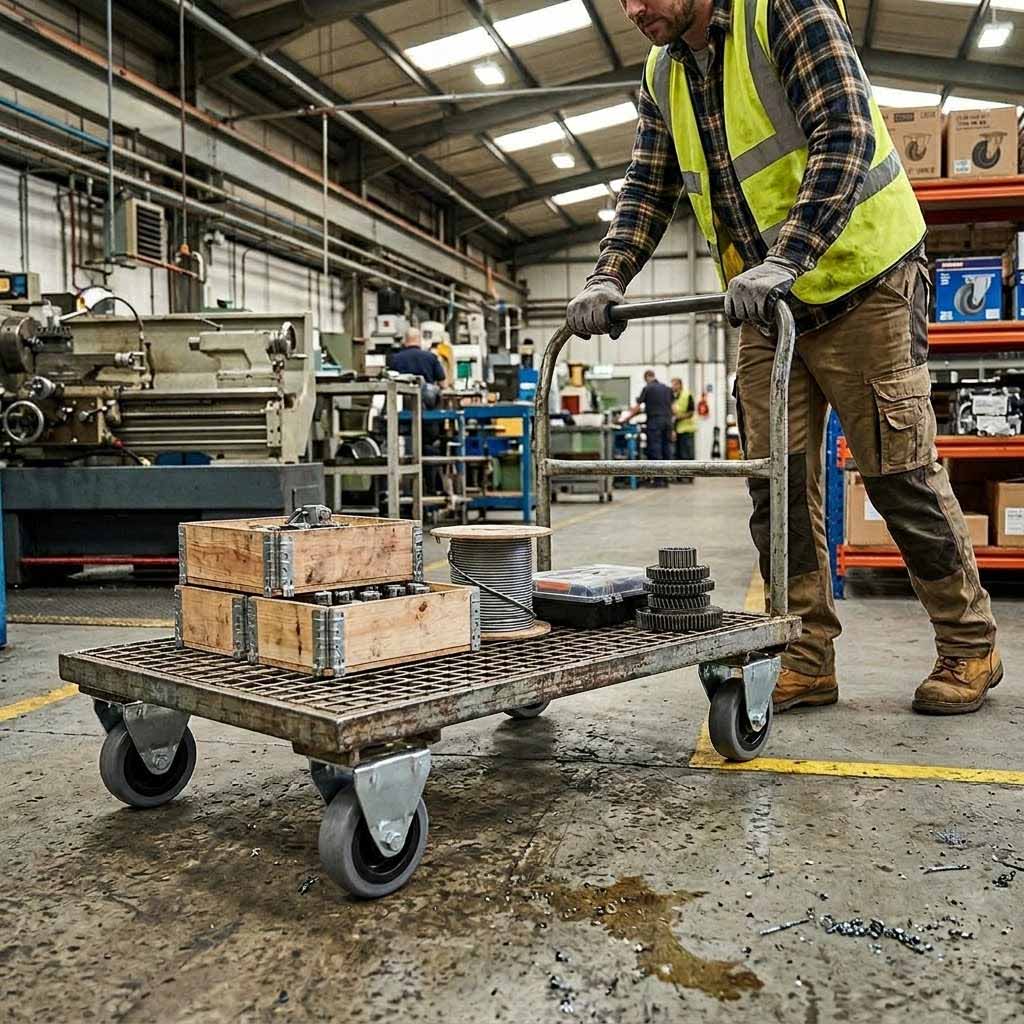

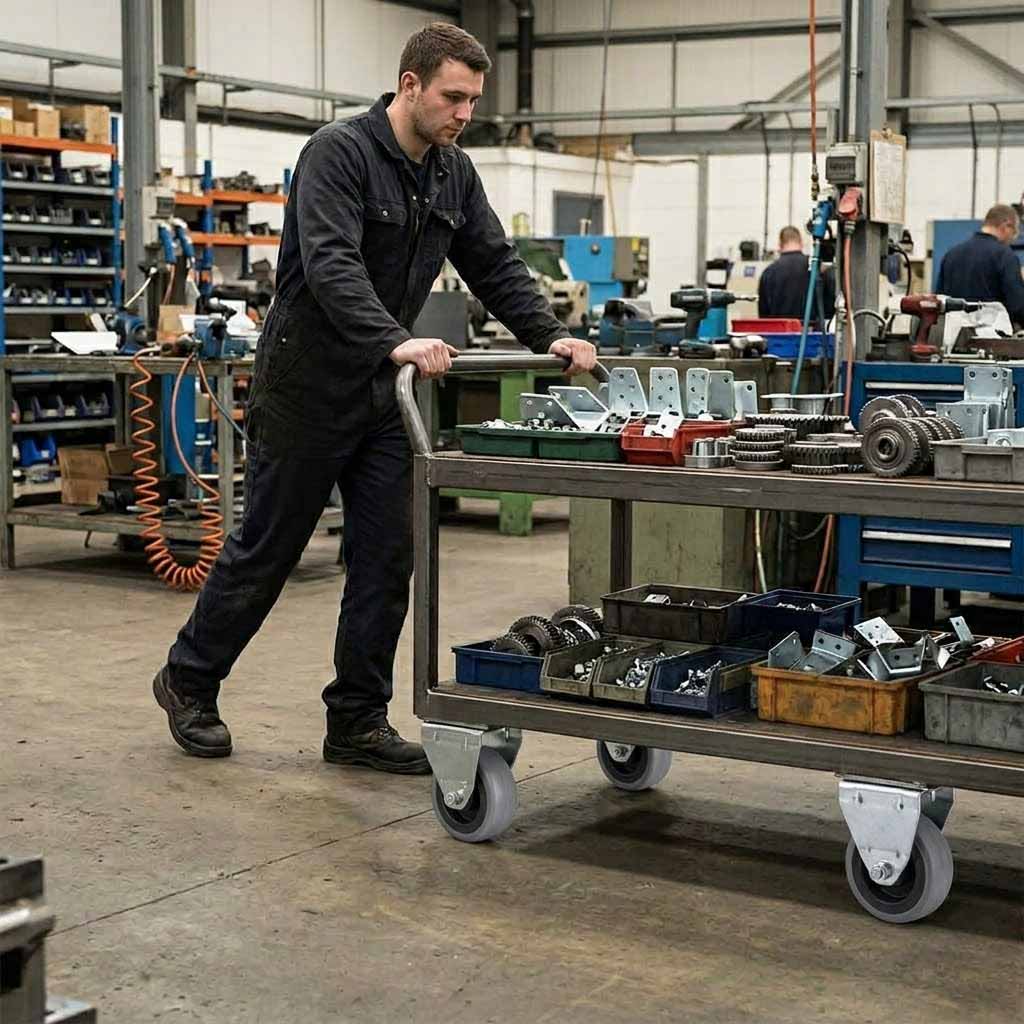

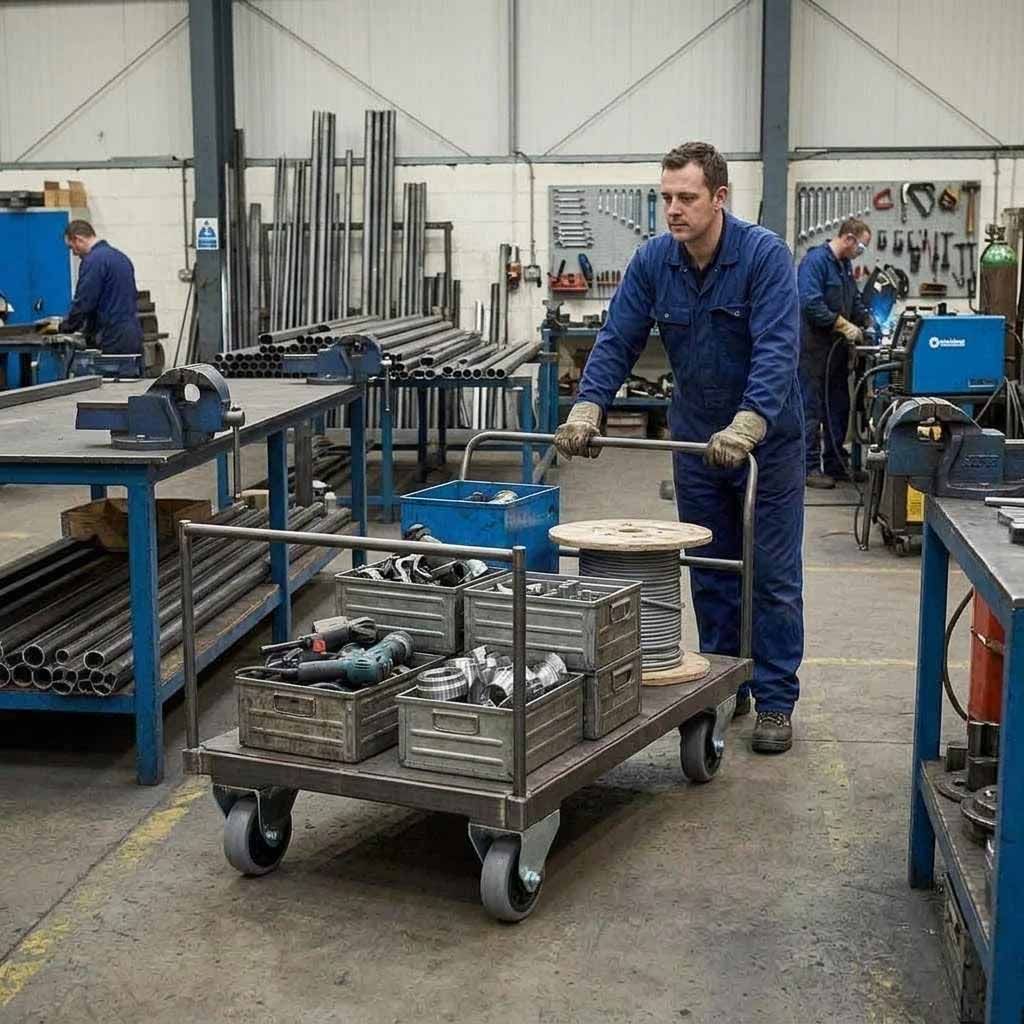

Compact & lightweight applicationsTypical Applications

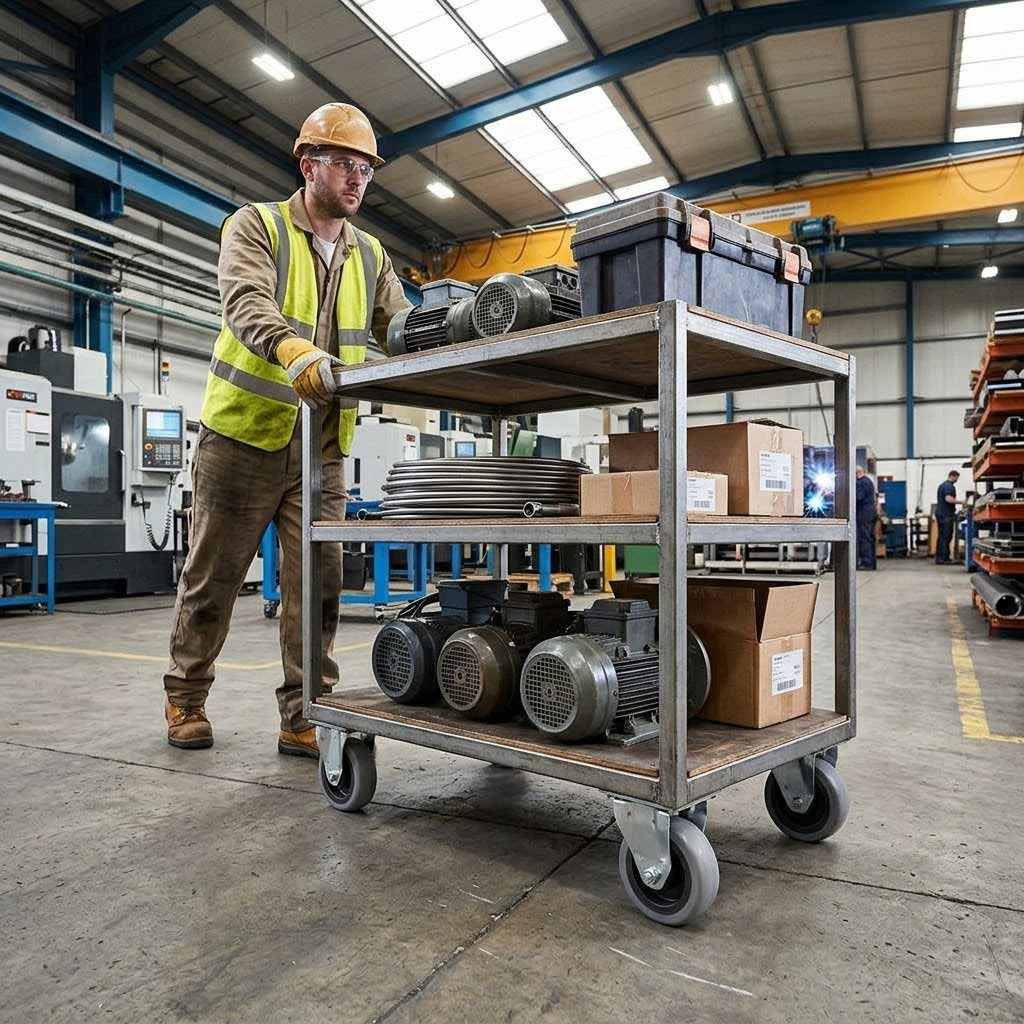

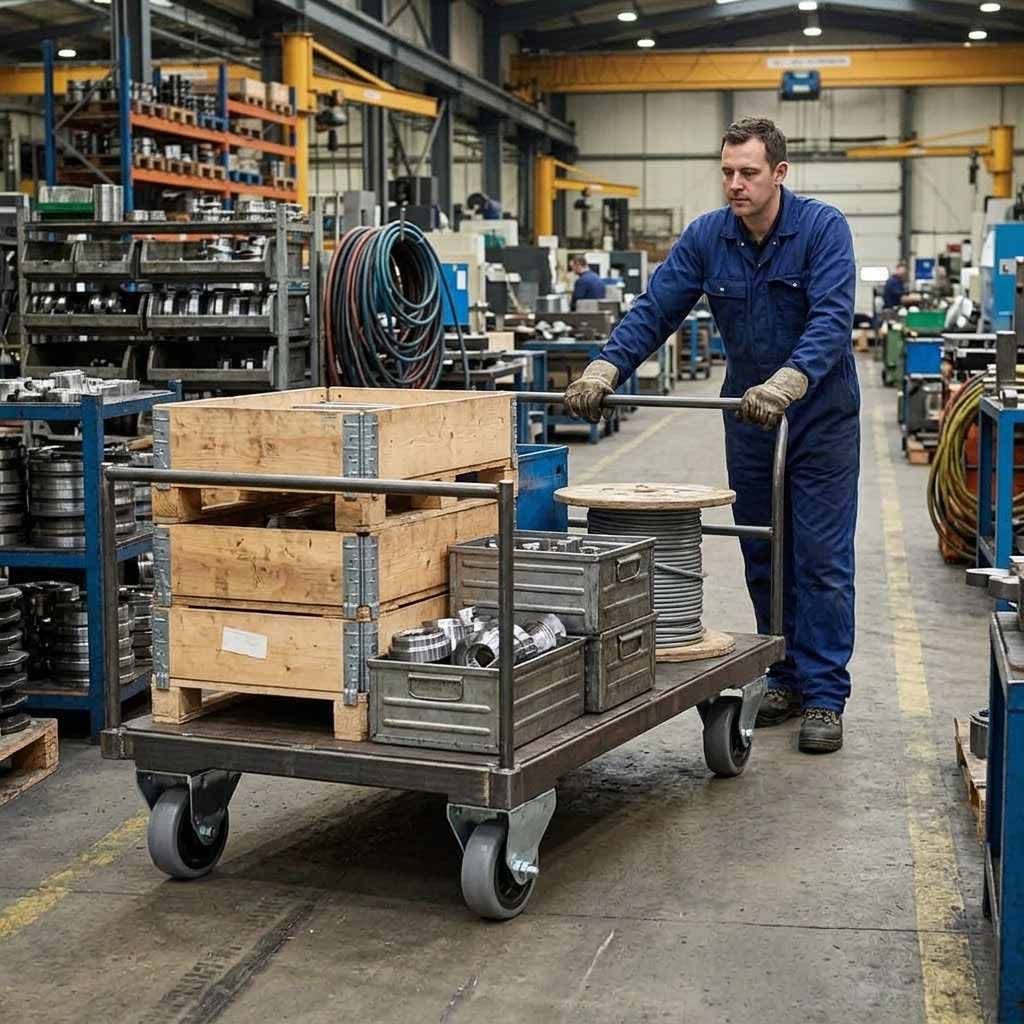

- Light domestic furniture (sofas, cabinets, shelving units)
- Small equipment trolleys and utility carts
- Display stands and point-of-sale fixtures
- Hospitality furniture (chairs, side tables, service trolleys)
- DIY workshop benches and storage units
75mm Wheel — 70 kg Load

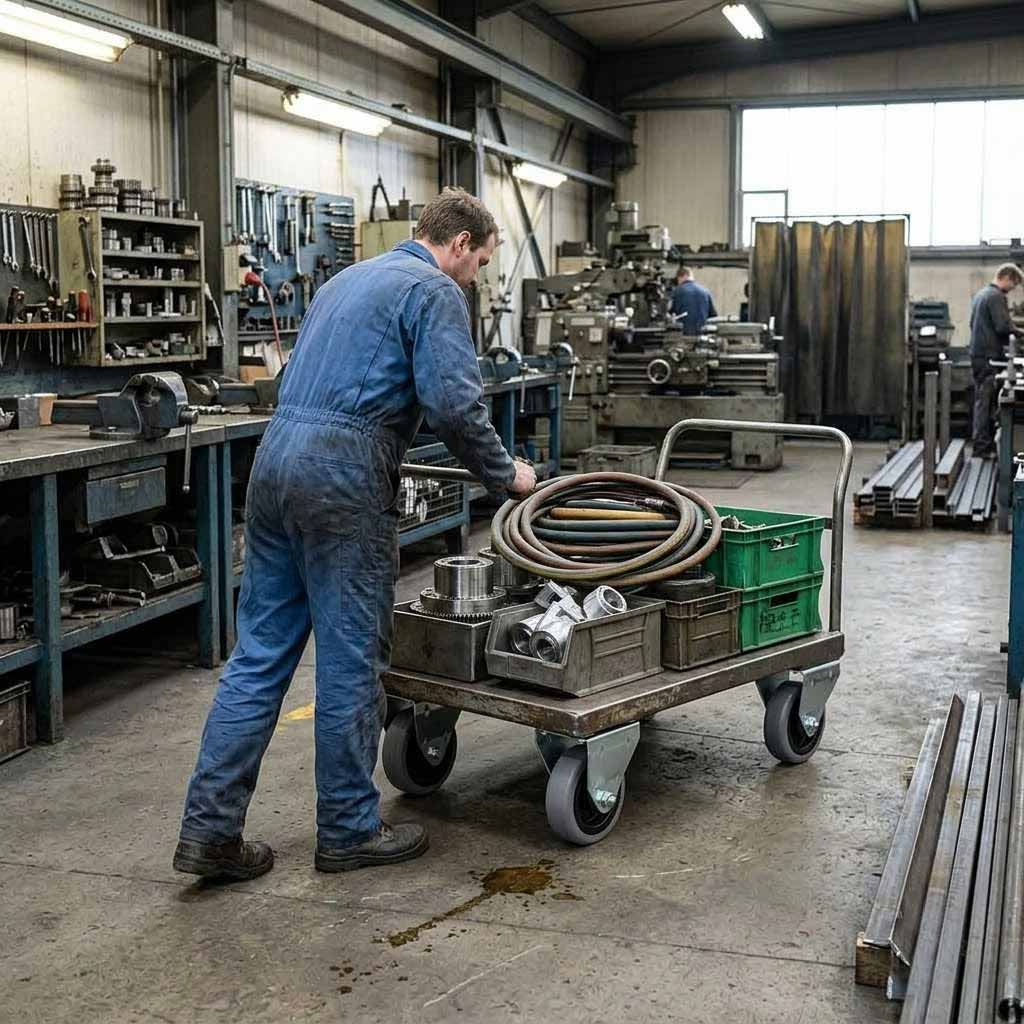

Mid-range commercial & workshop useTypical Applications

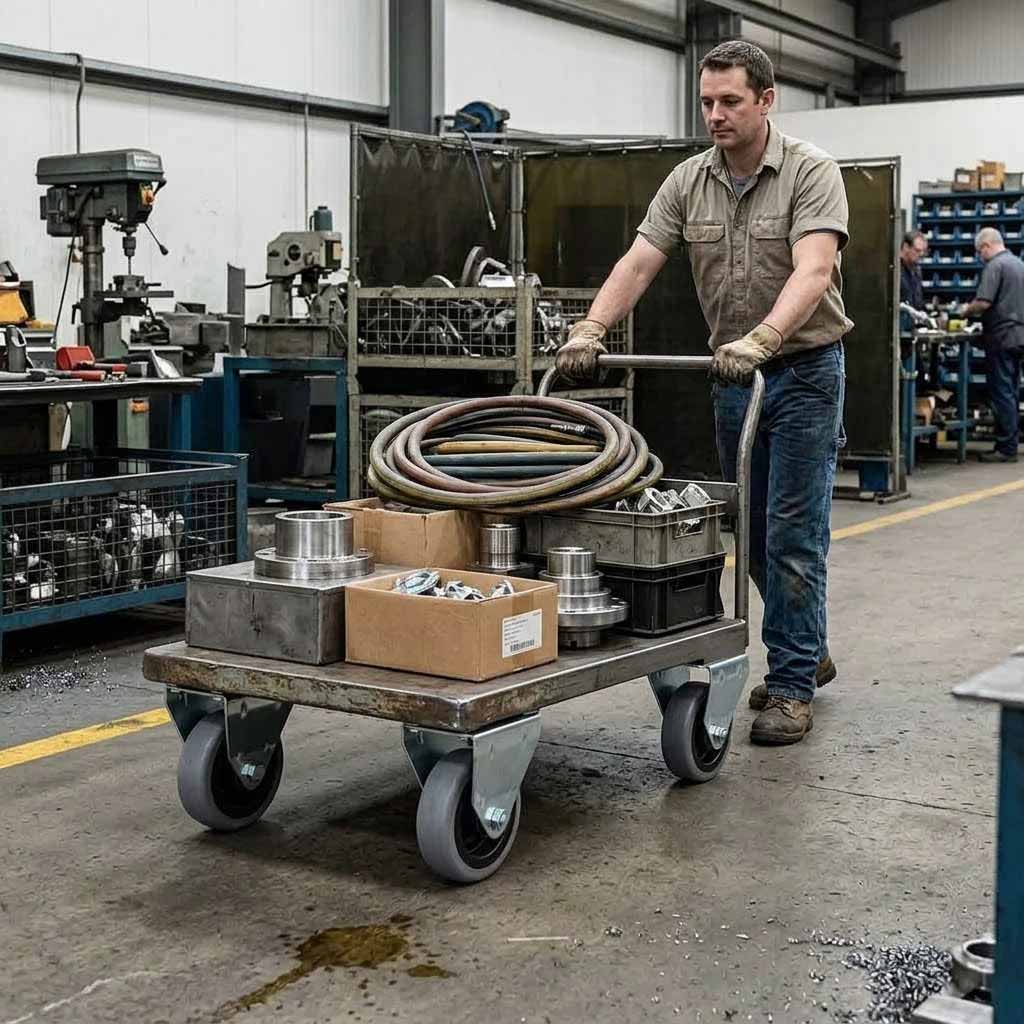

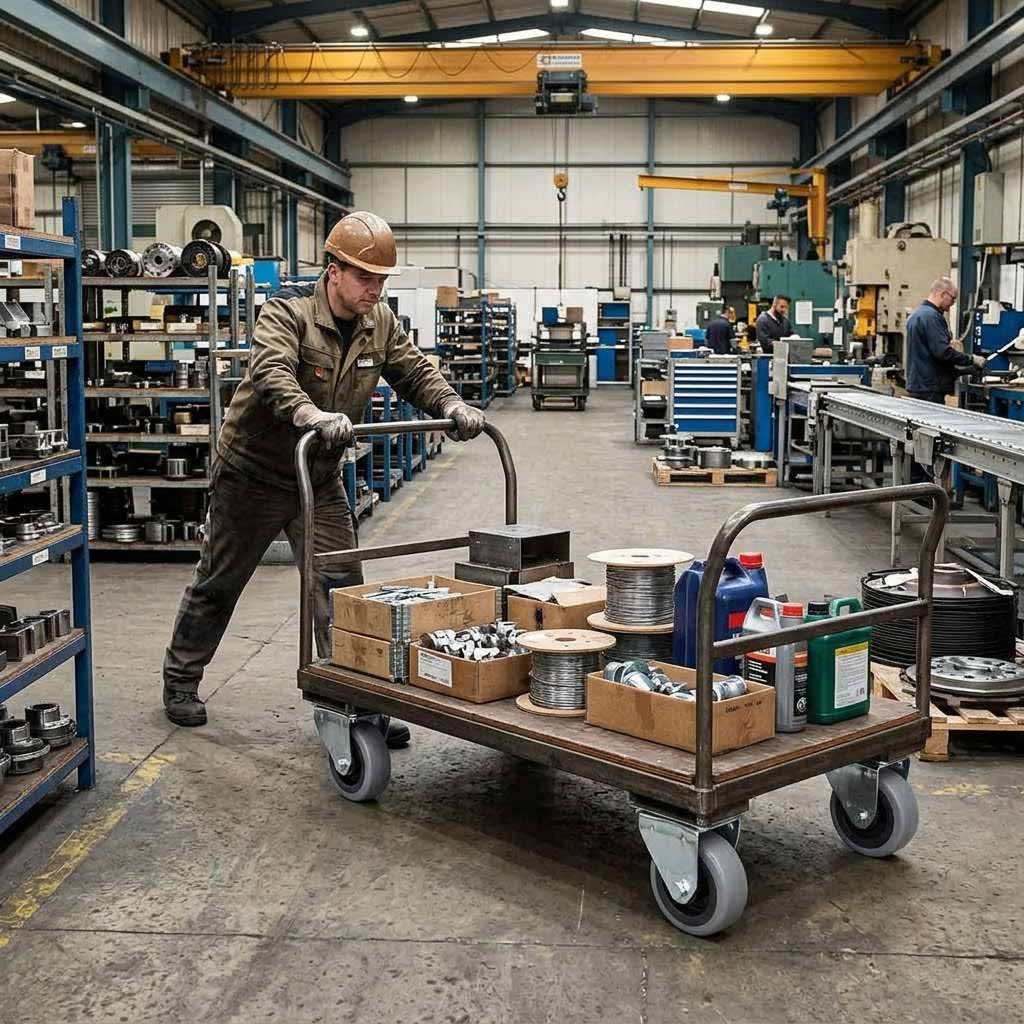

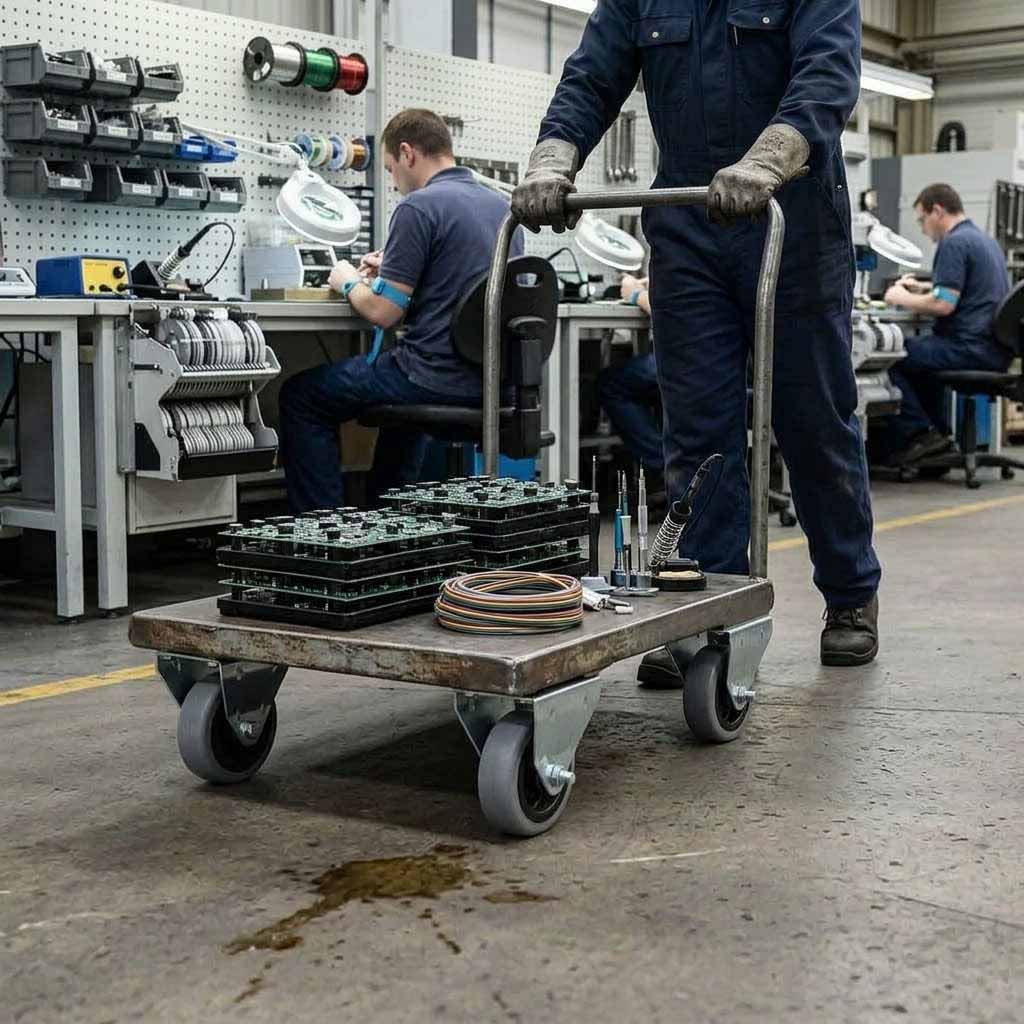

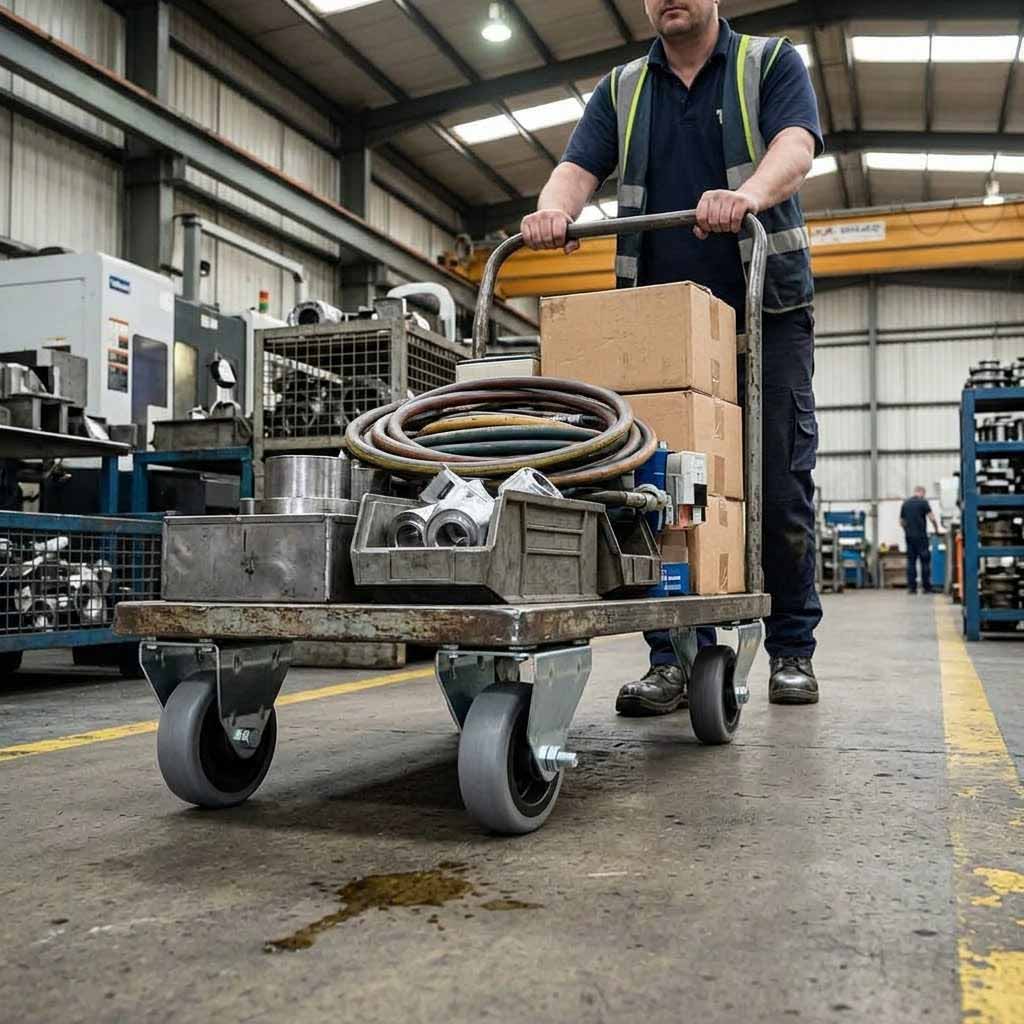

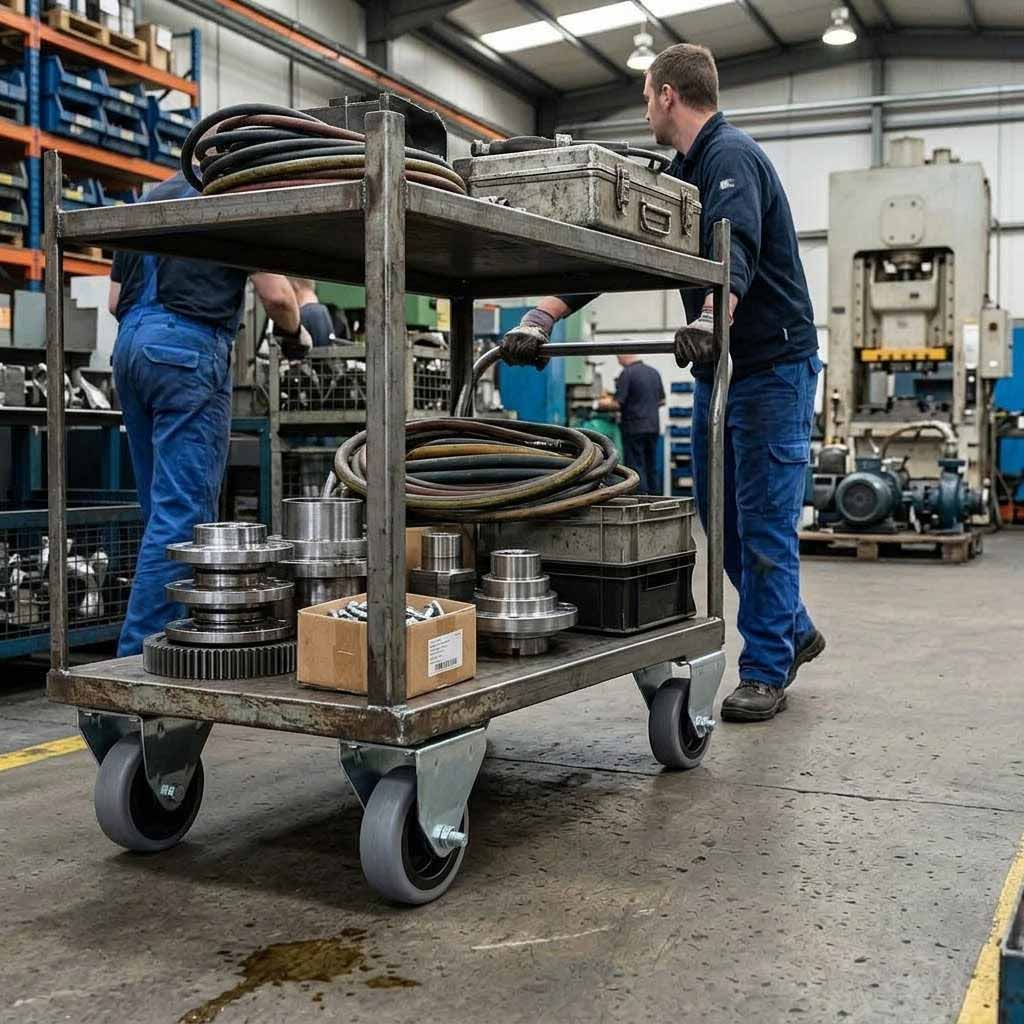

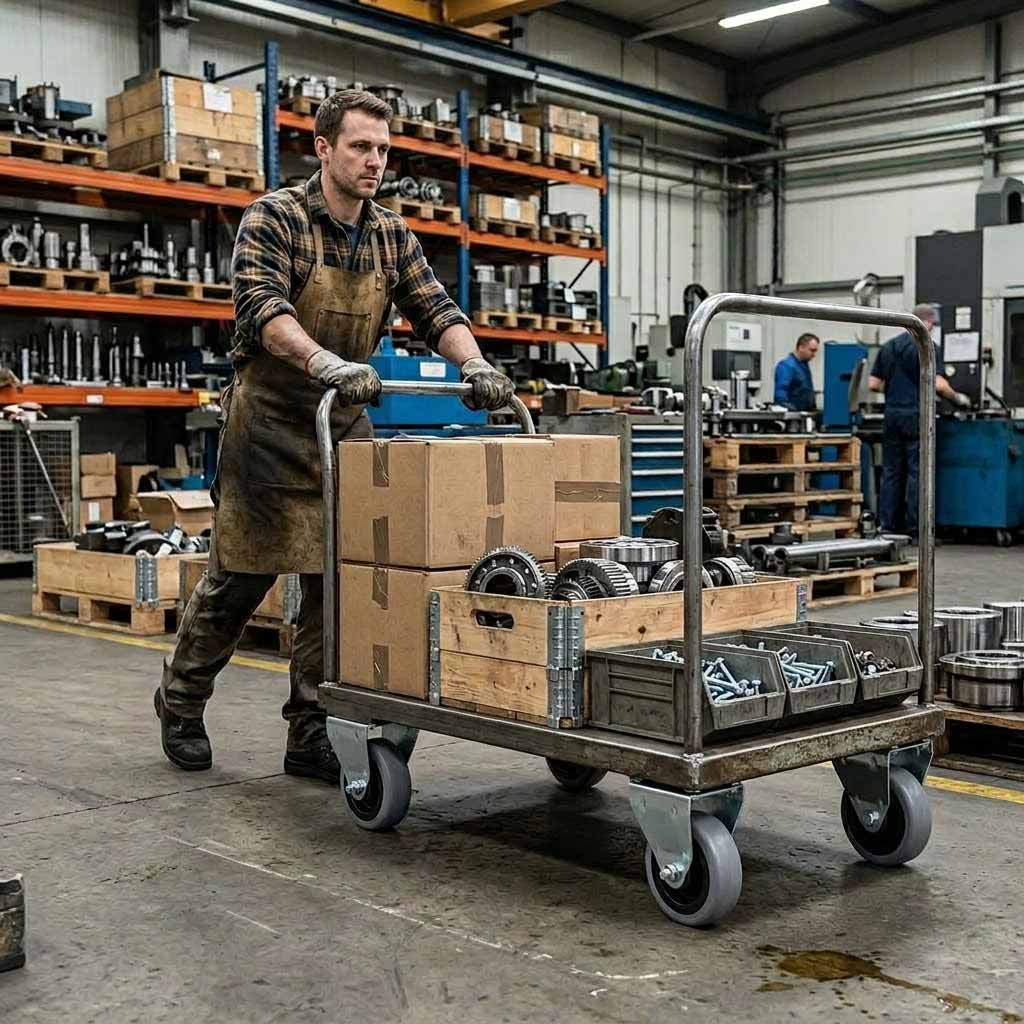

- Workshop benches, tool cabinets, and machinery bases
- Retail shelving, gondola units, and display racking

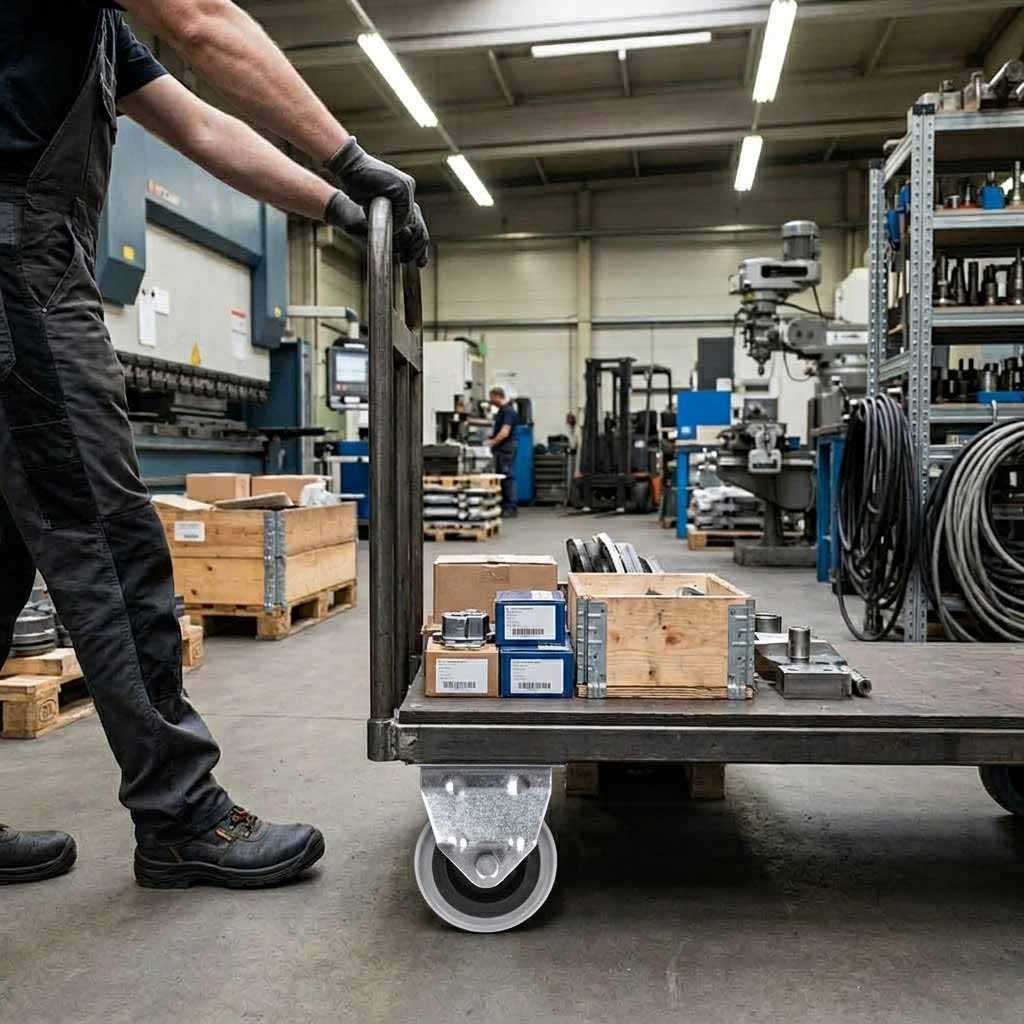

- Light warehousing trolleys and picking carts
- Catering and hospitality equipment (prep tables, service carts)
- Office furniture and modular storage systems

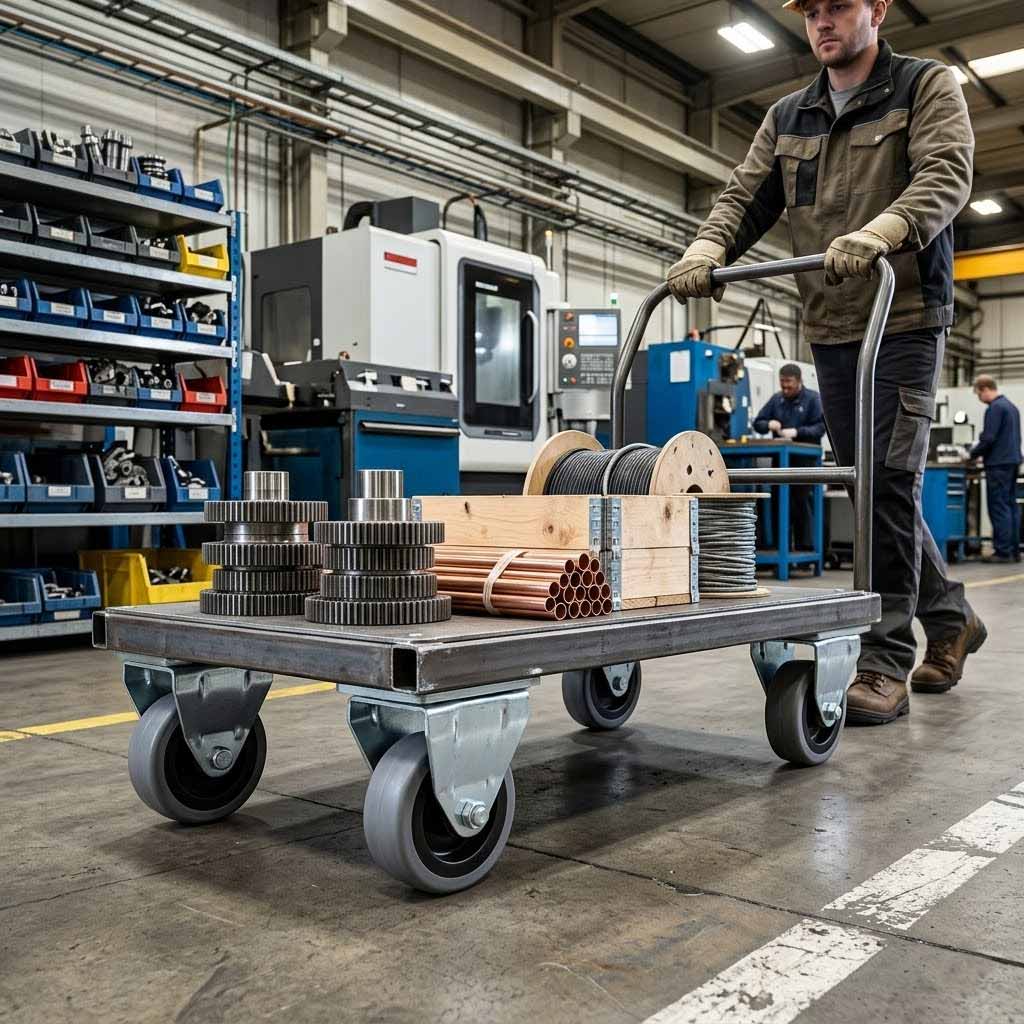

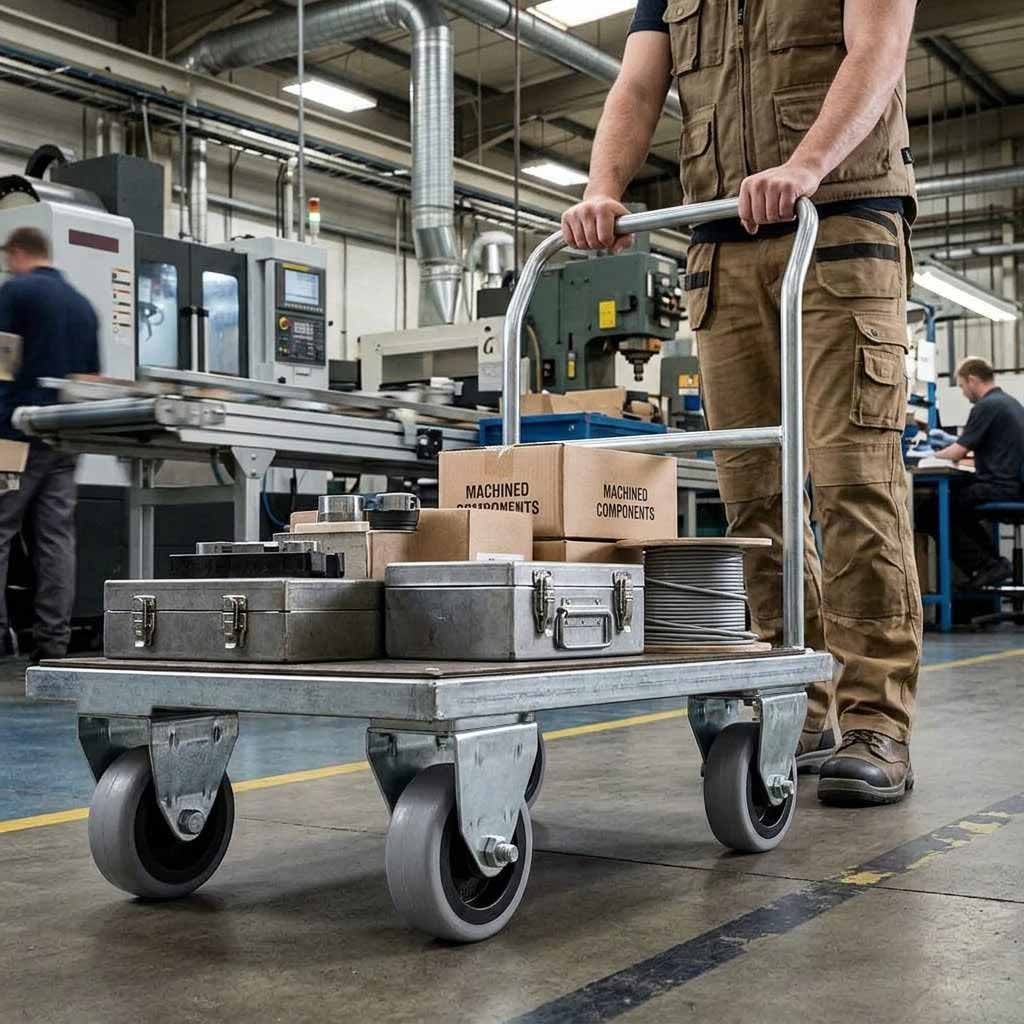

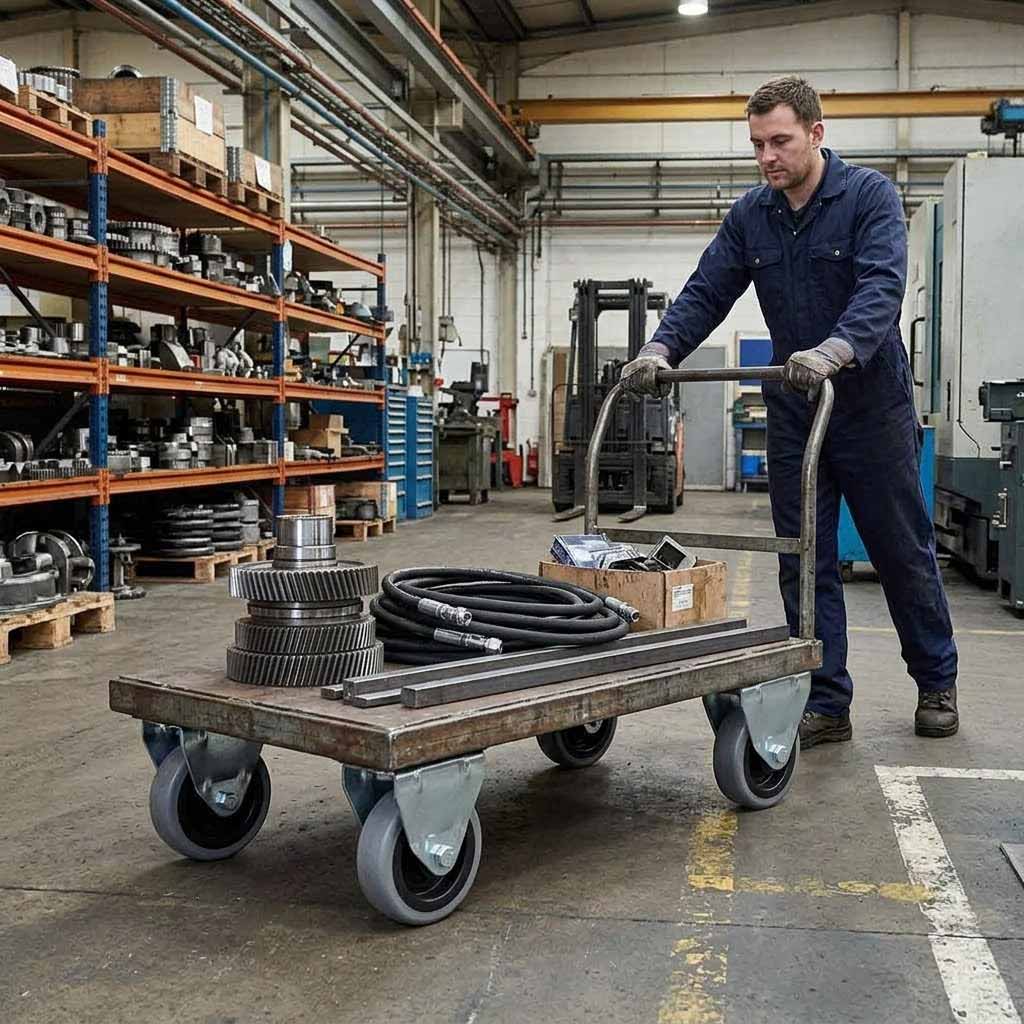

100mm Wheel — 80 kg Load

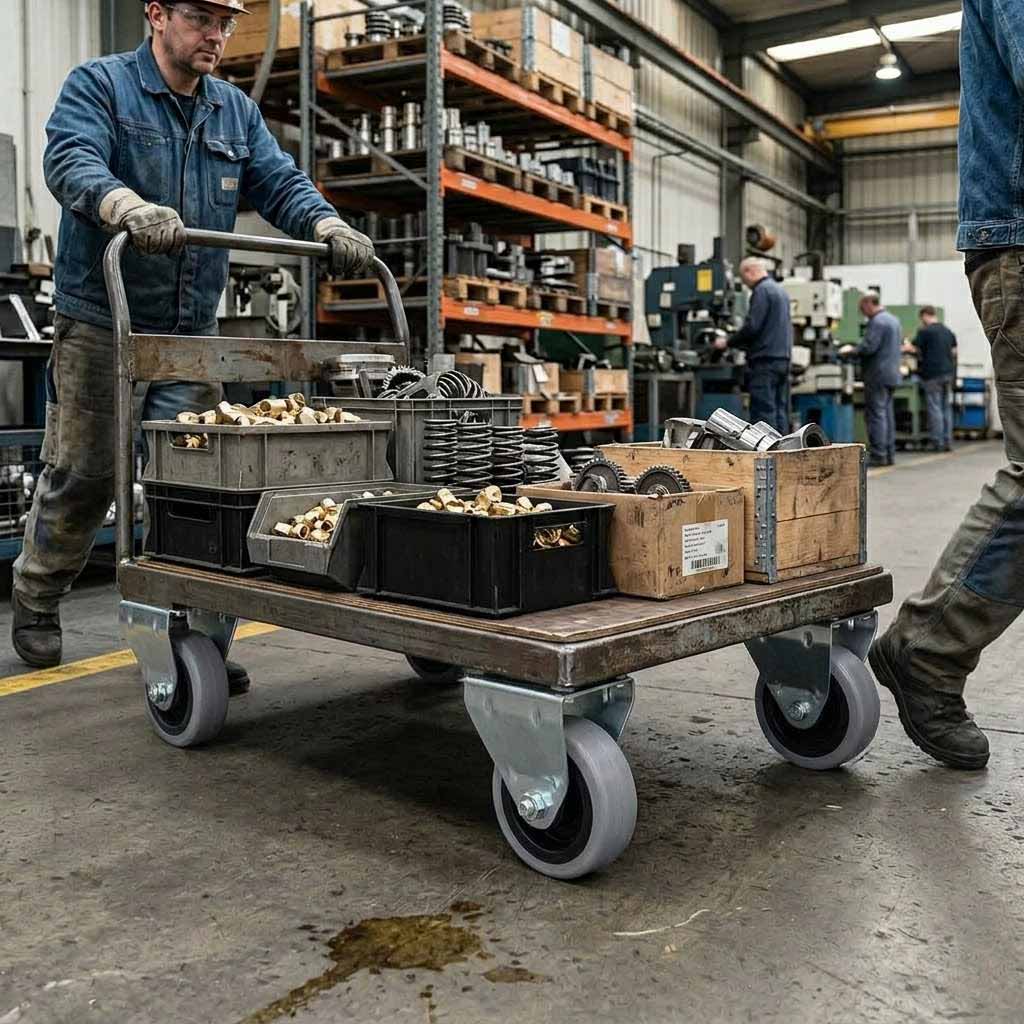

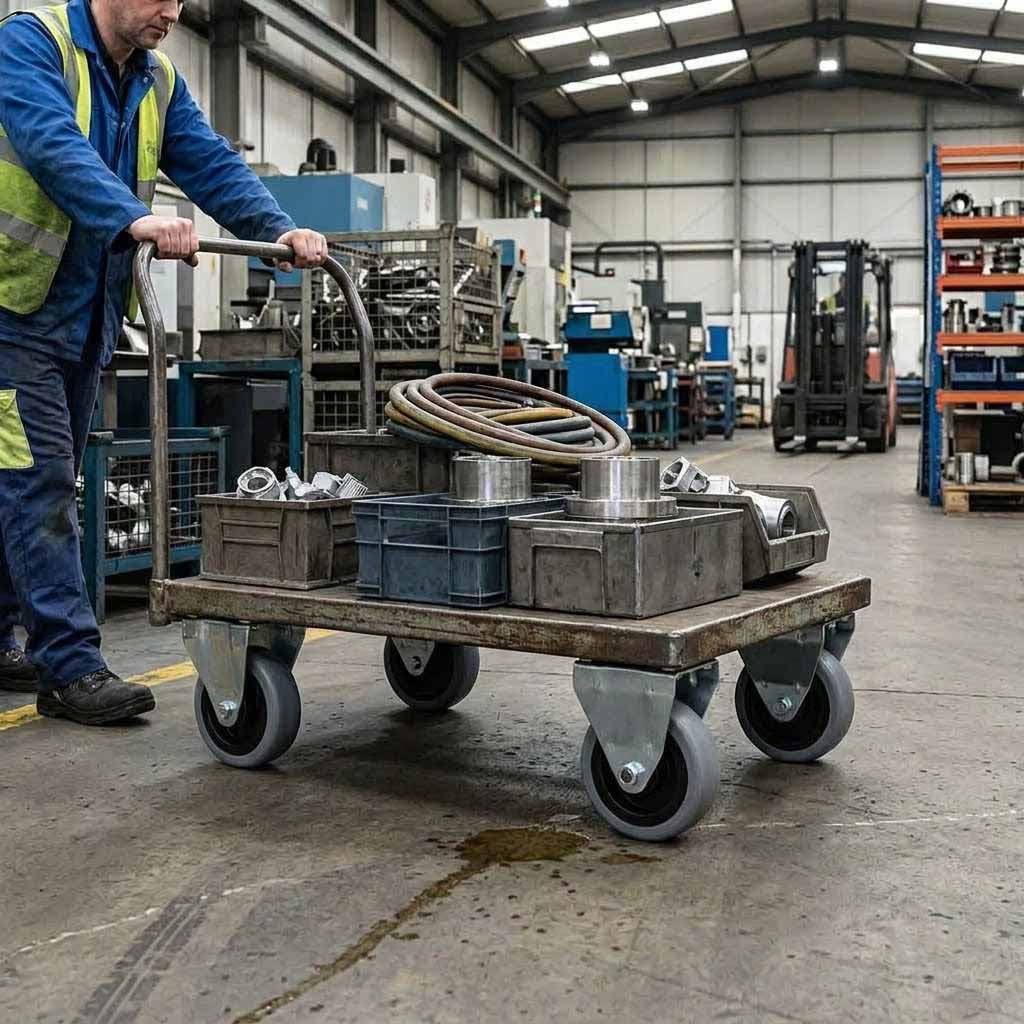

Heavy-duty industrial & commercial useTypical Applications

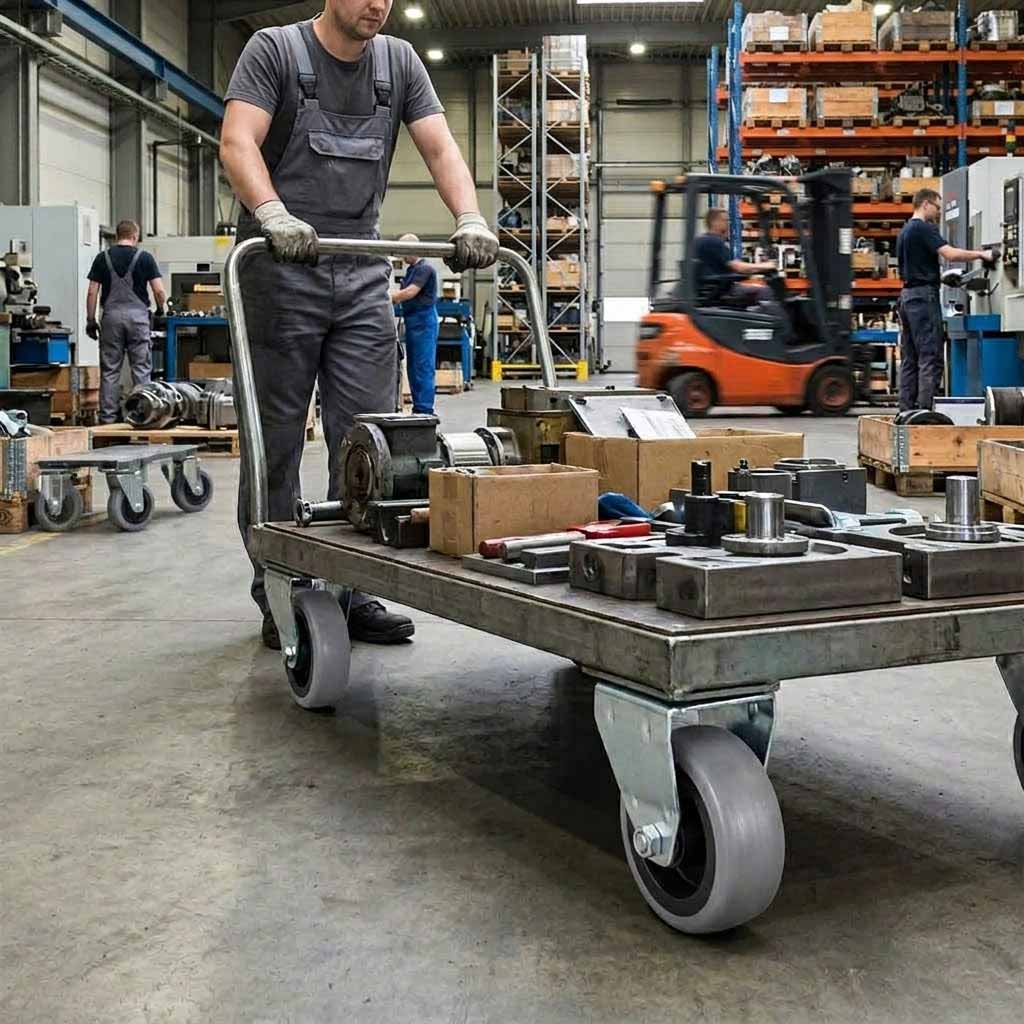

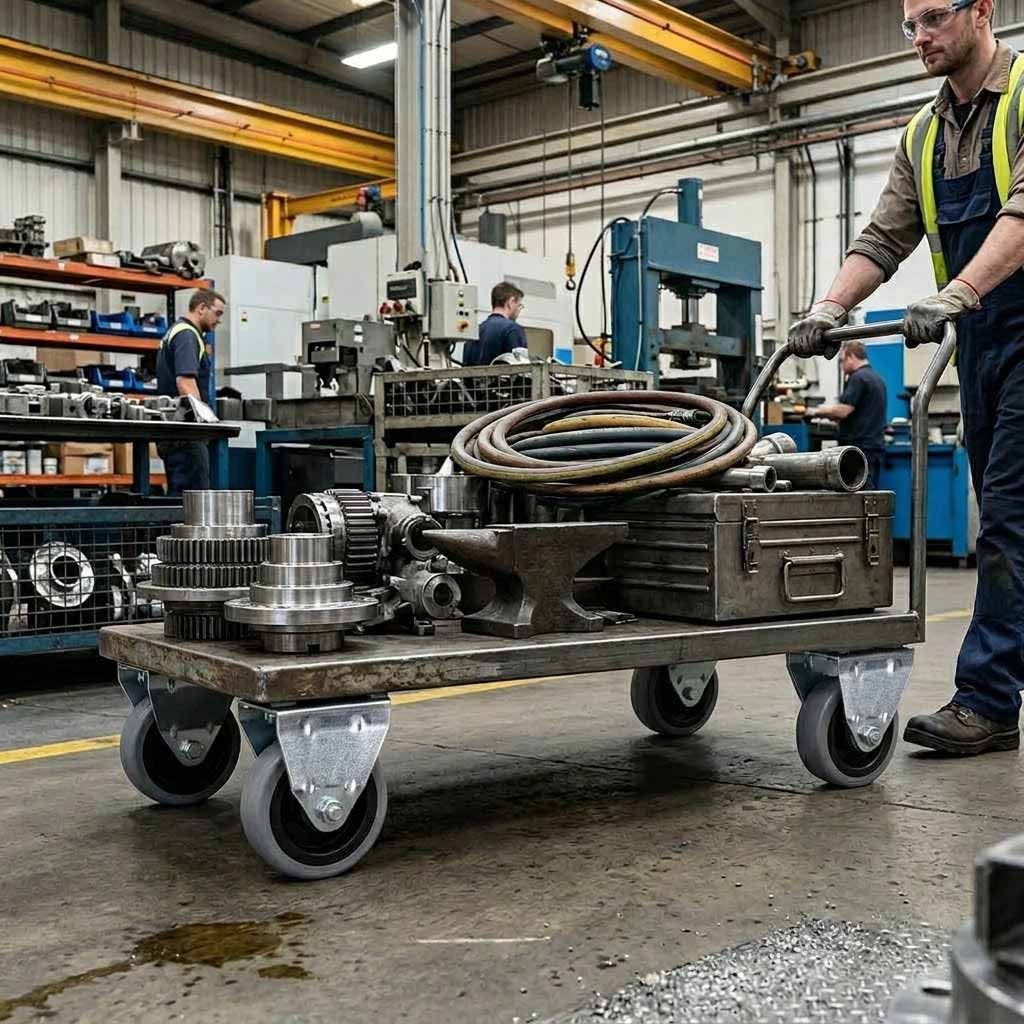

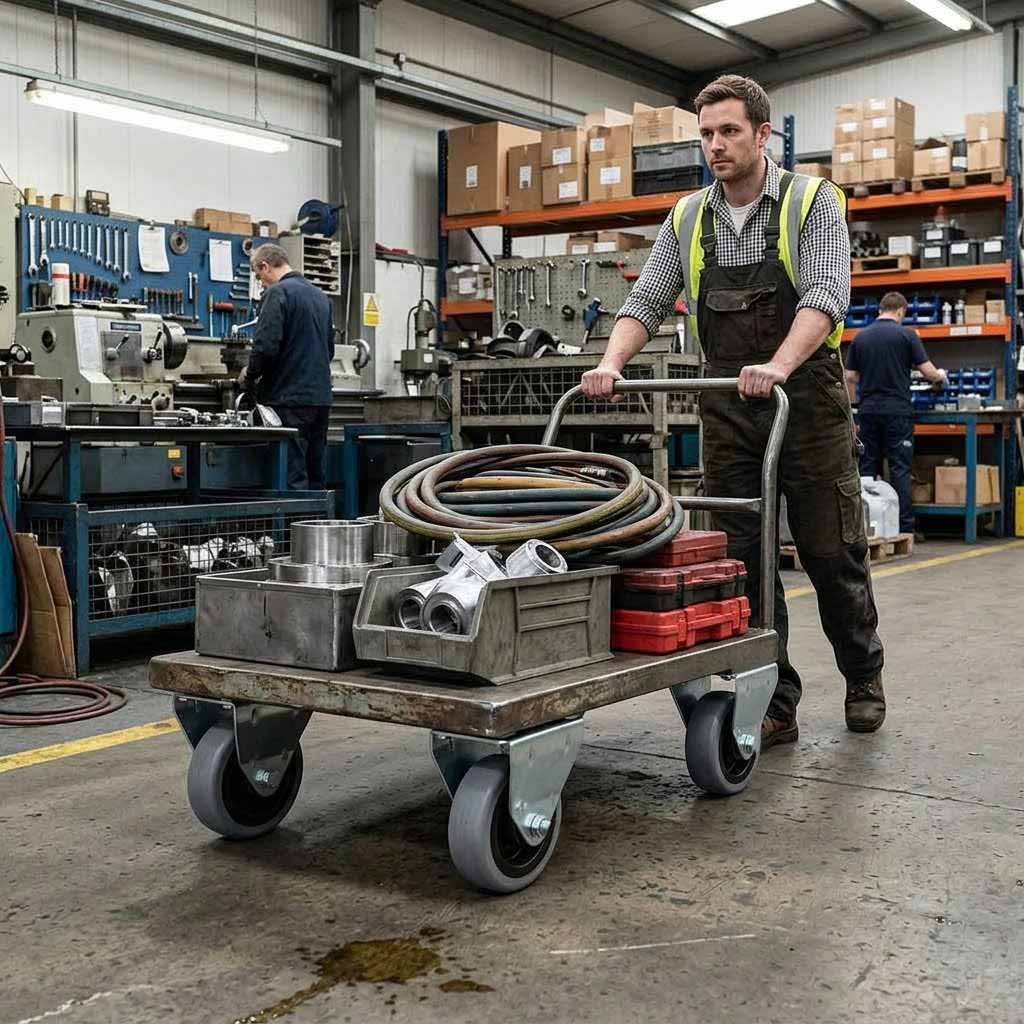

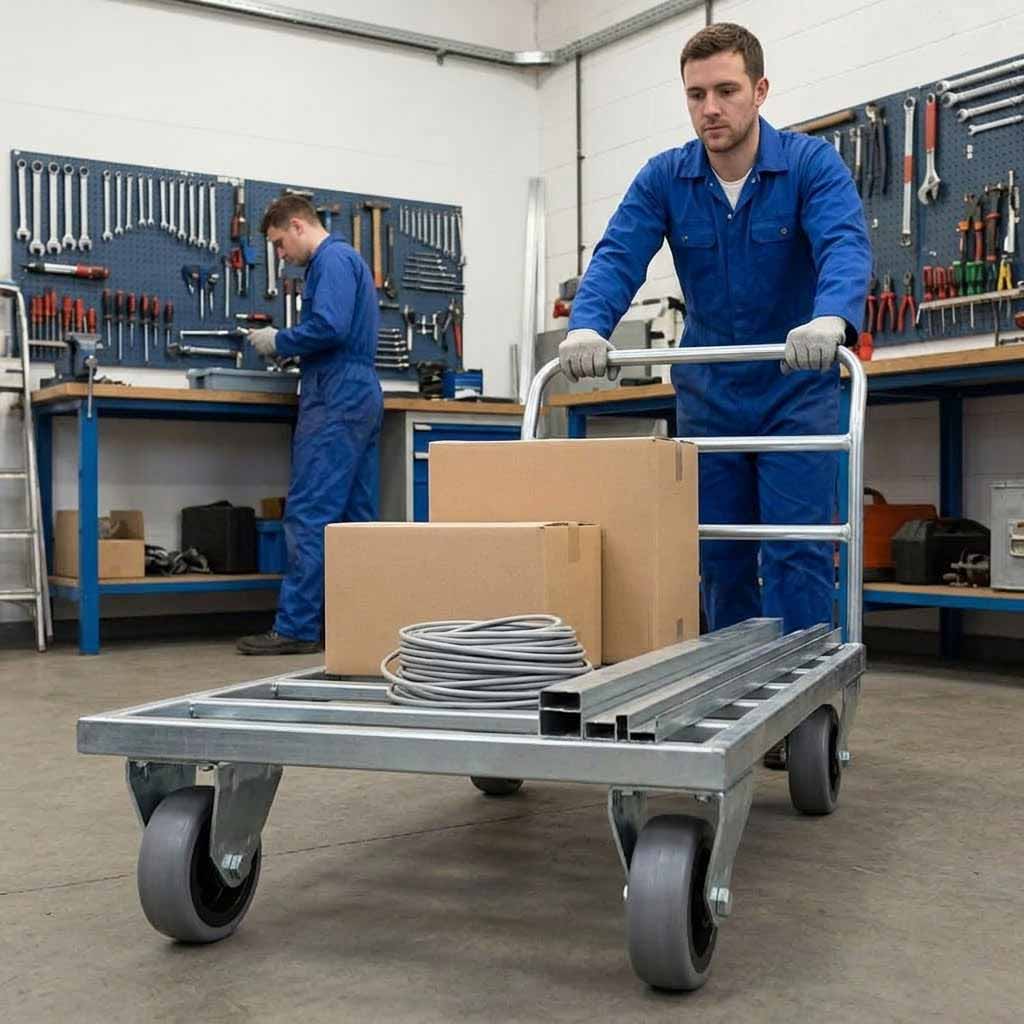

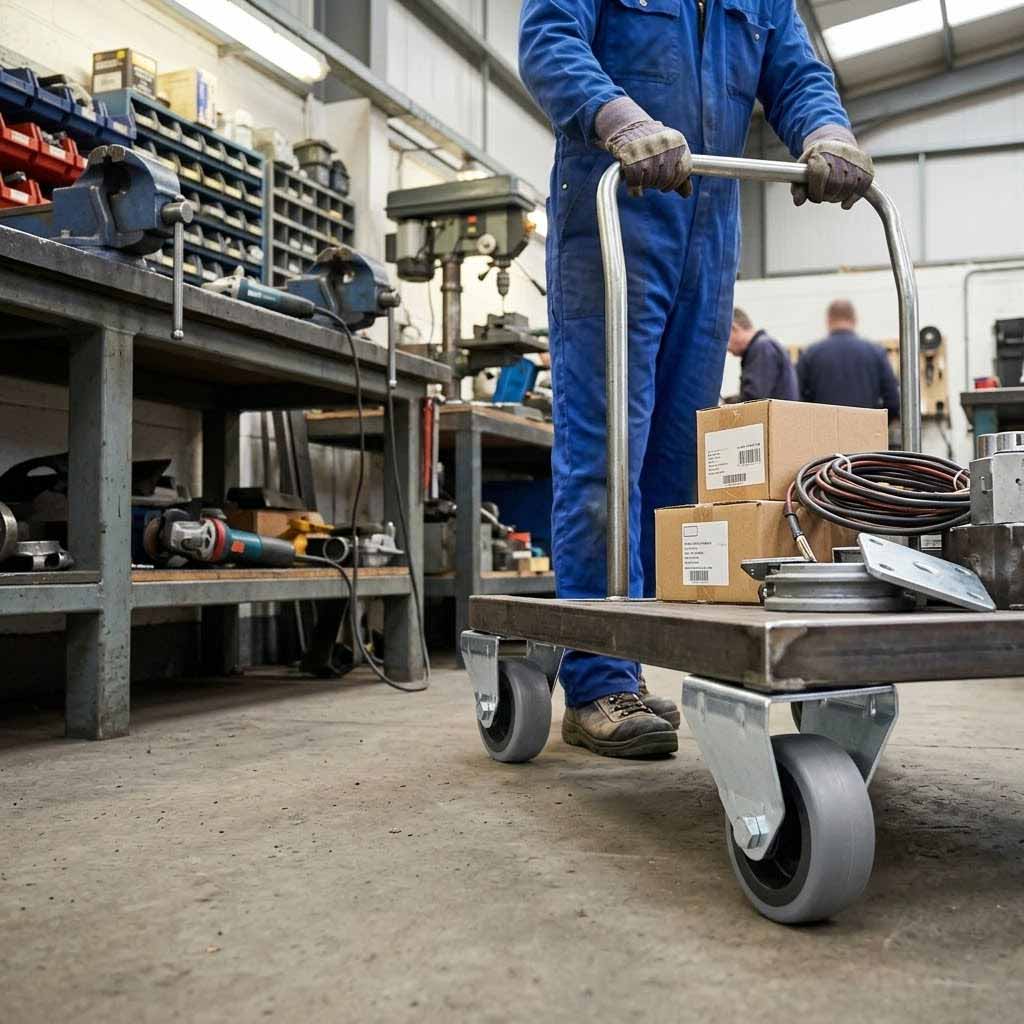

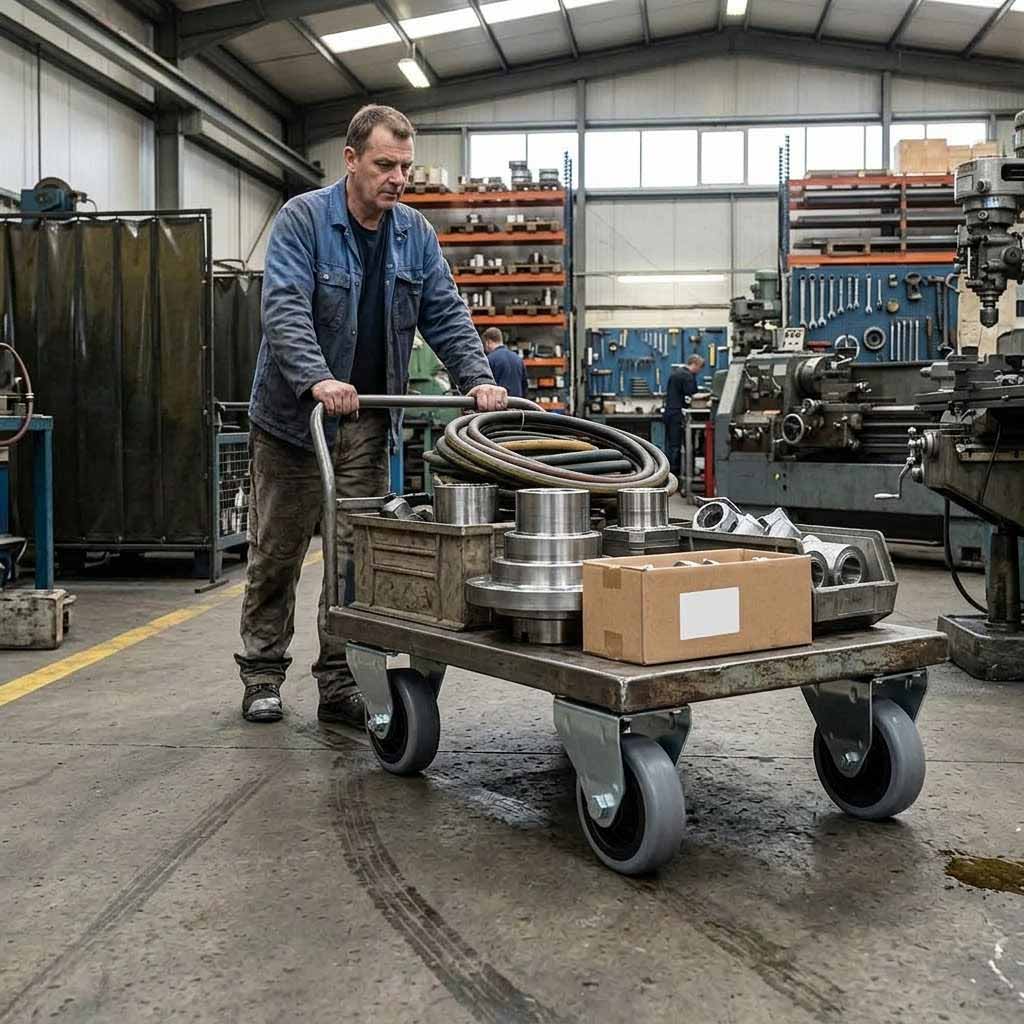

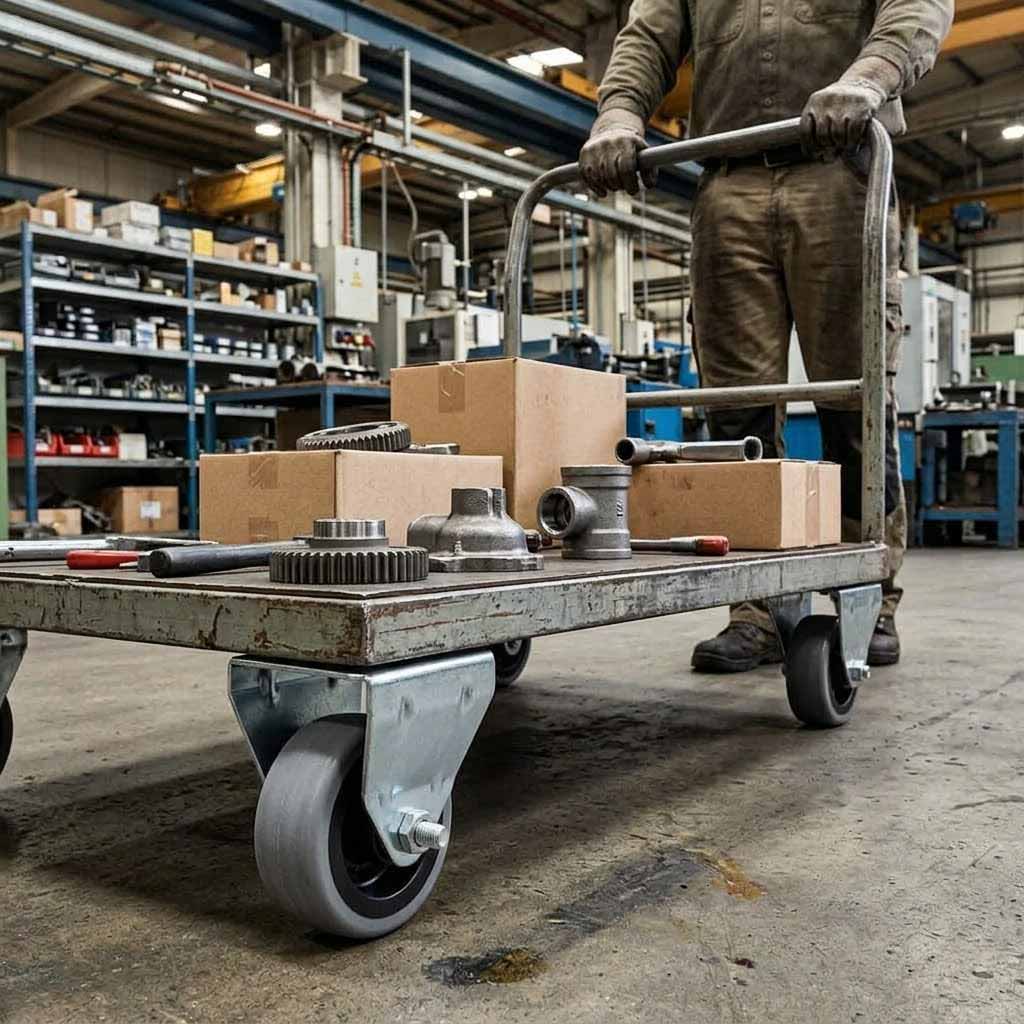

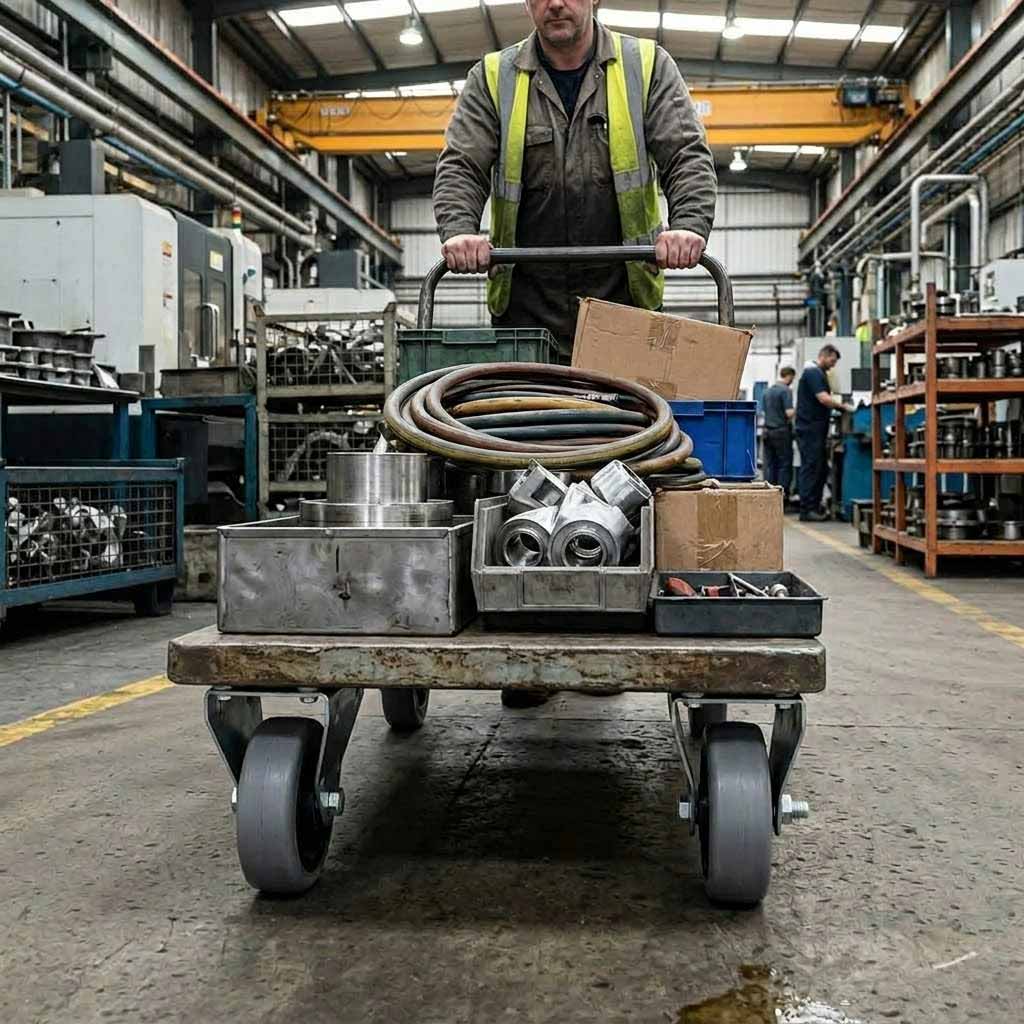

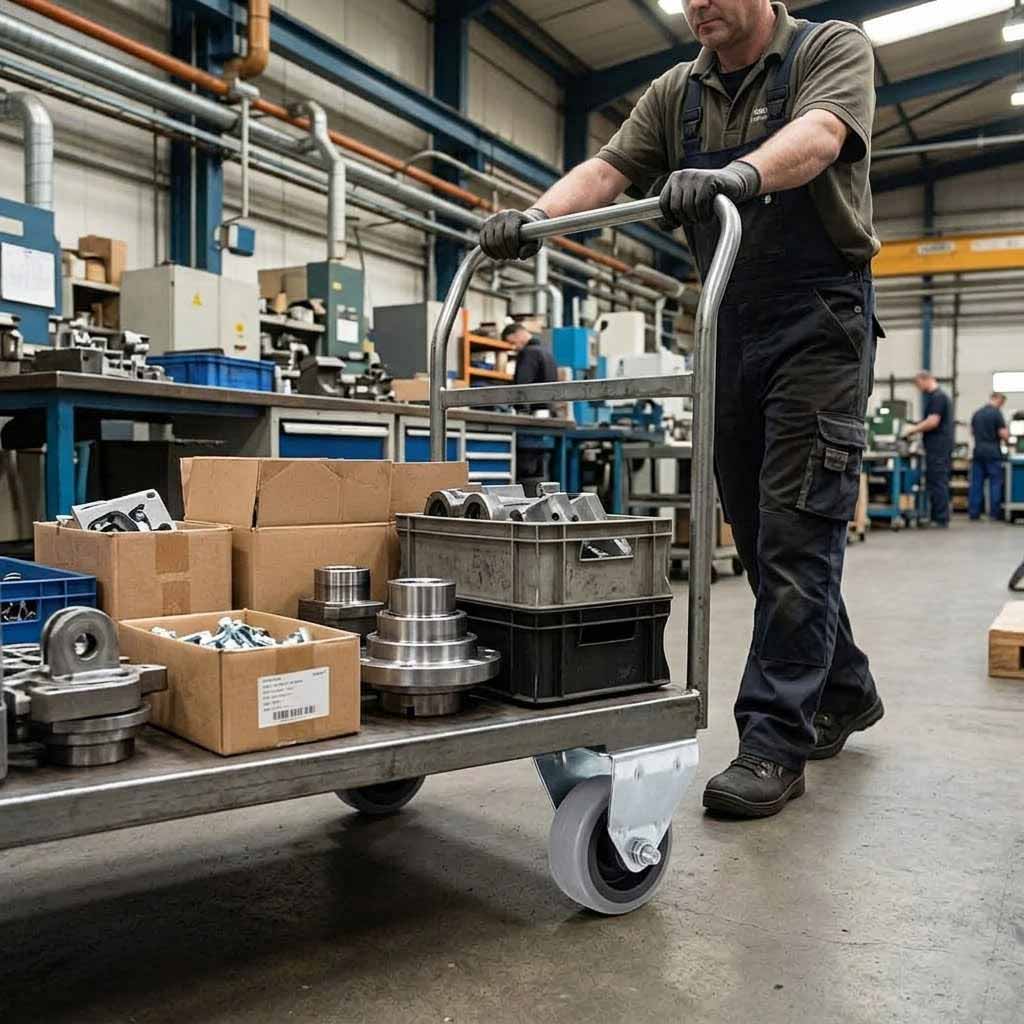

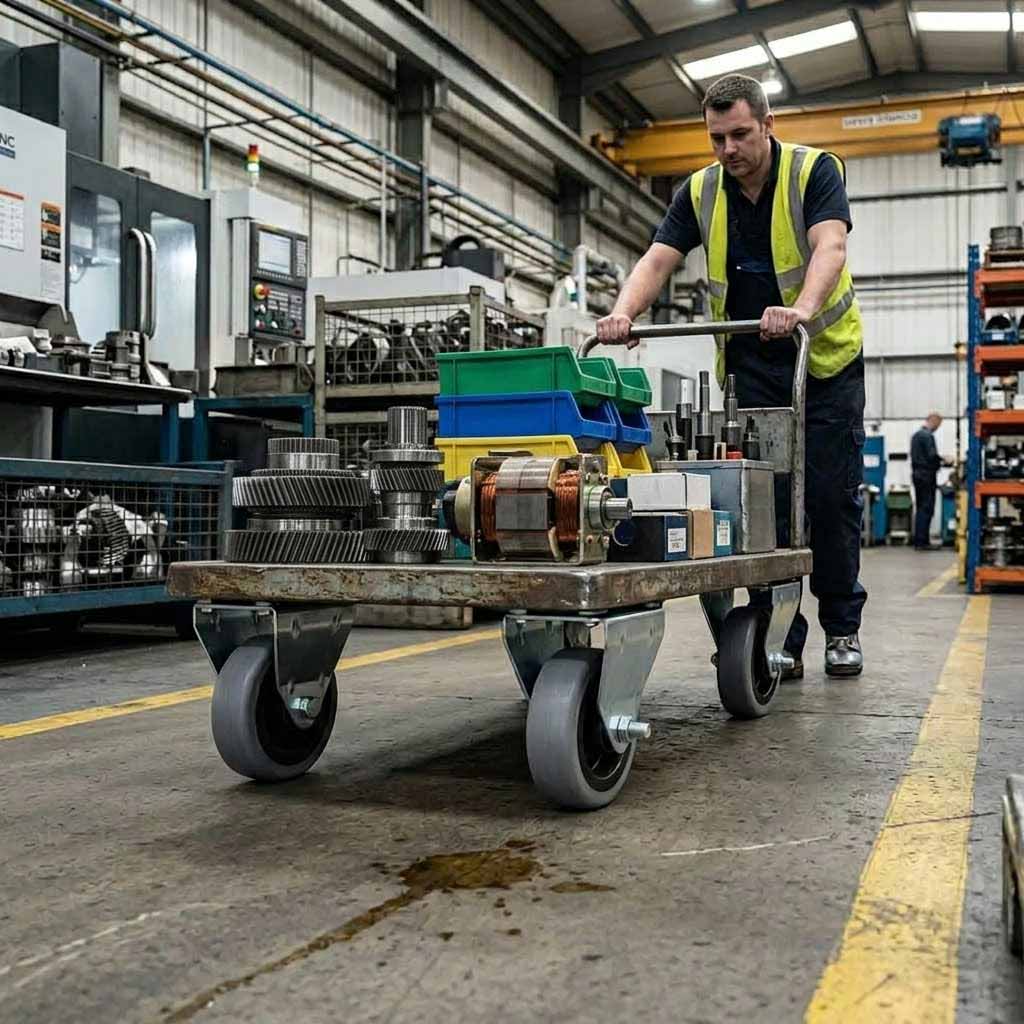

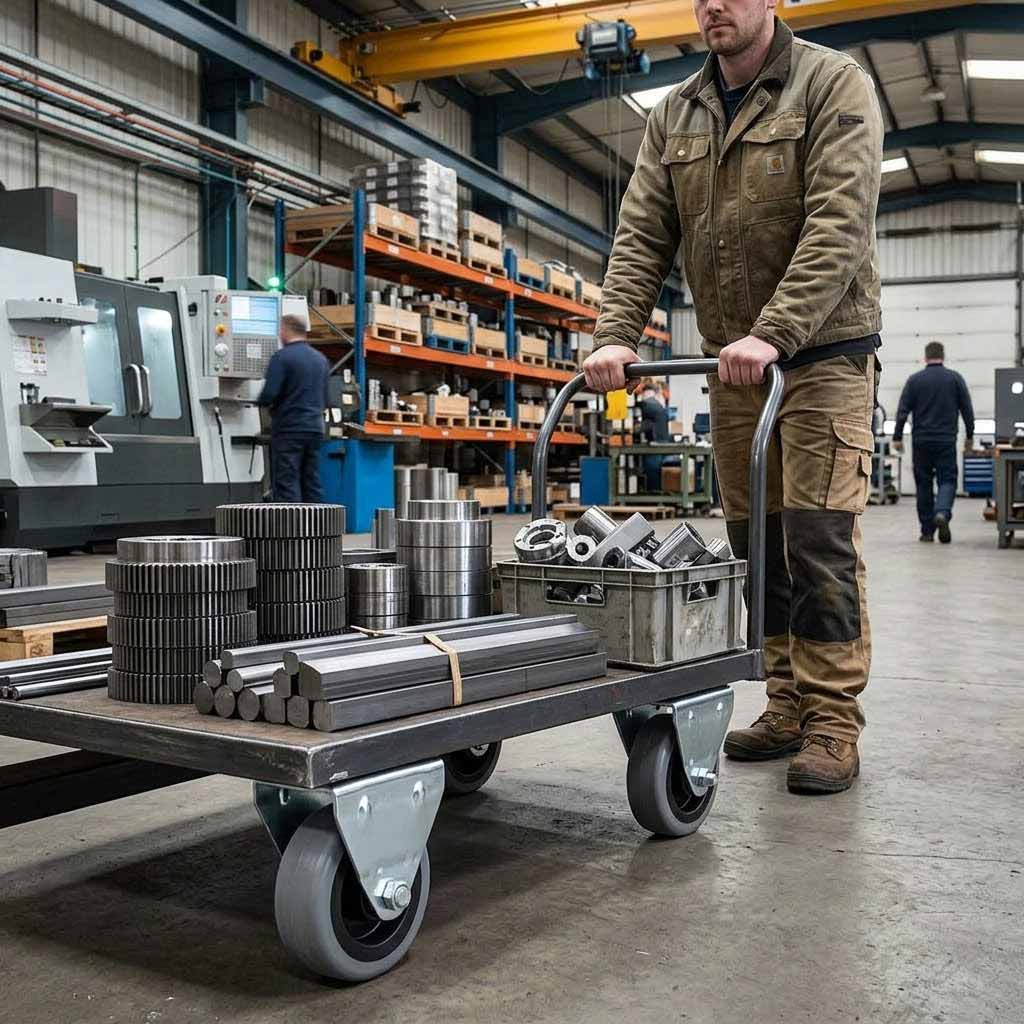

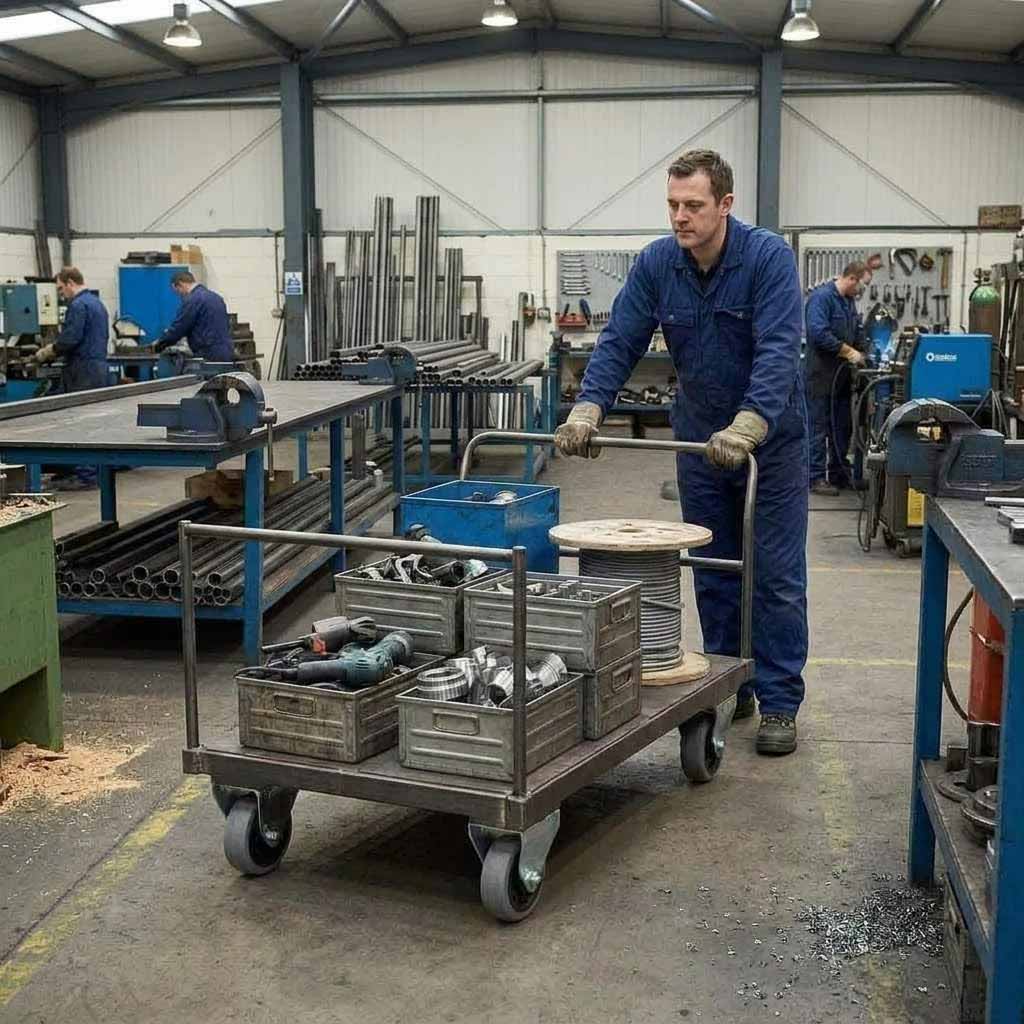

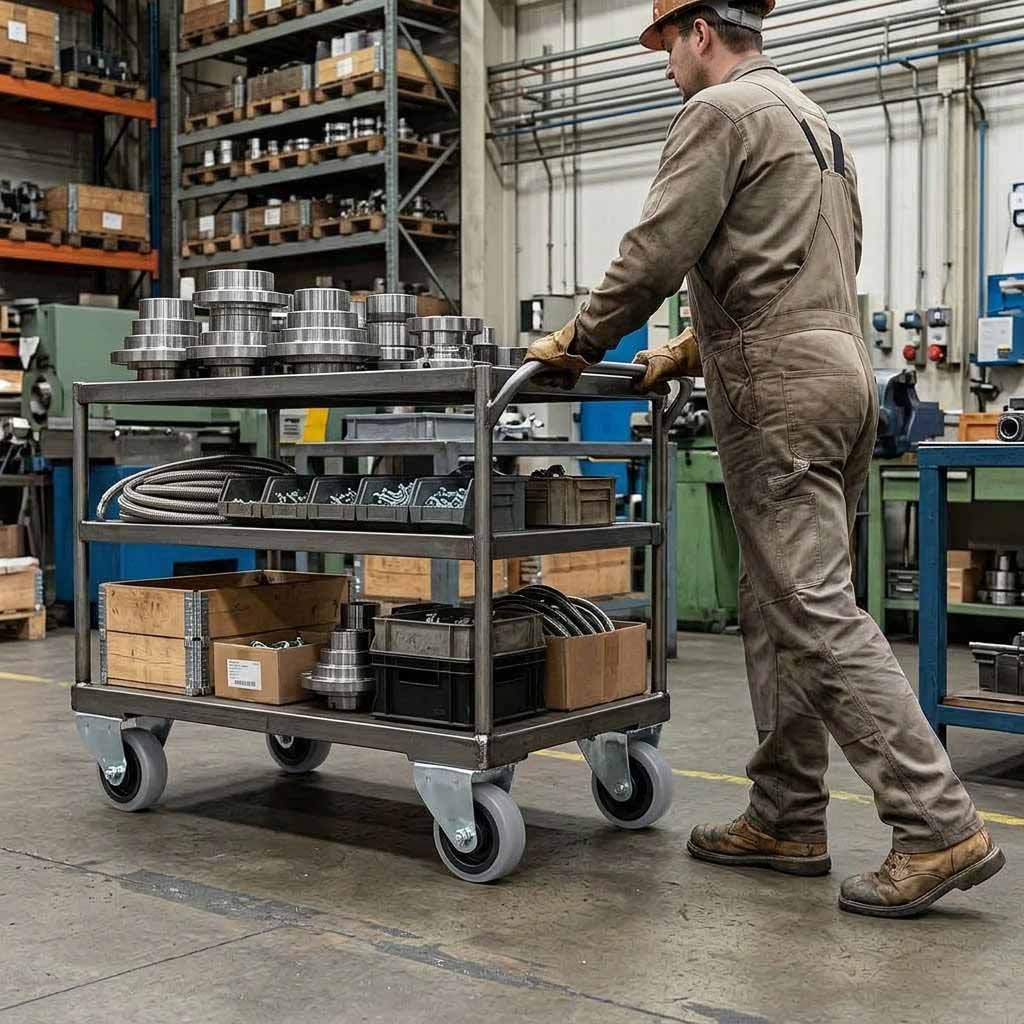

- Industrial platform trucks and heavy equipment bases
- Warehouse racking, pallet dollies, and goods trolleys
- Manufacturing floor equipment and assembly jigs
- Facilities management carts and maintenance trolleys
- Commercial furniture and large-format display units
Construction & Materials

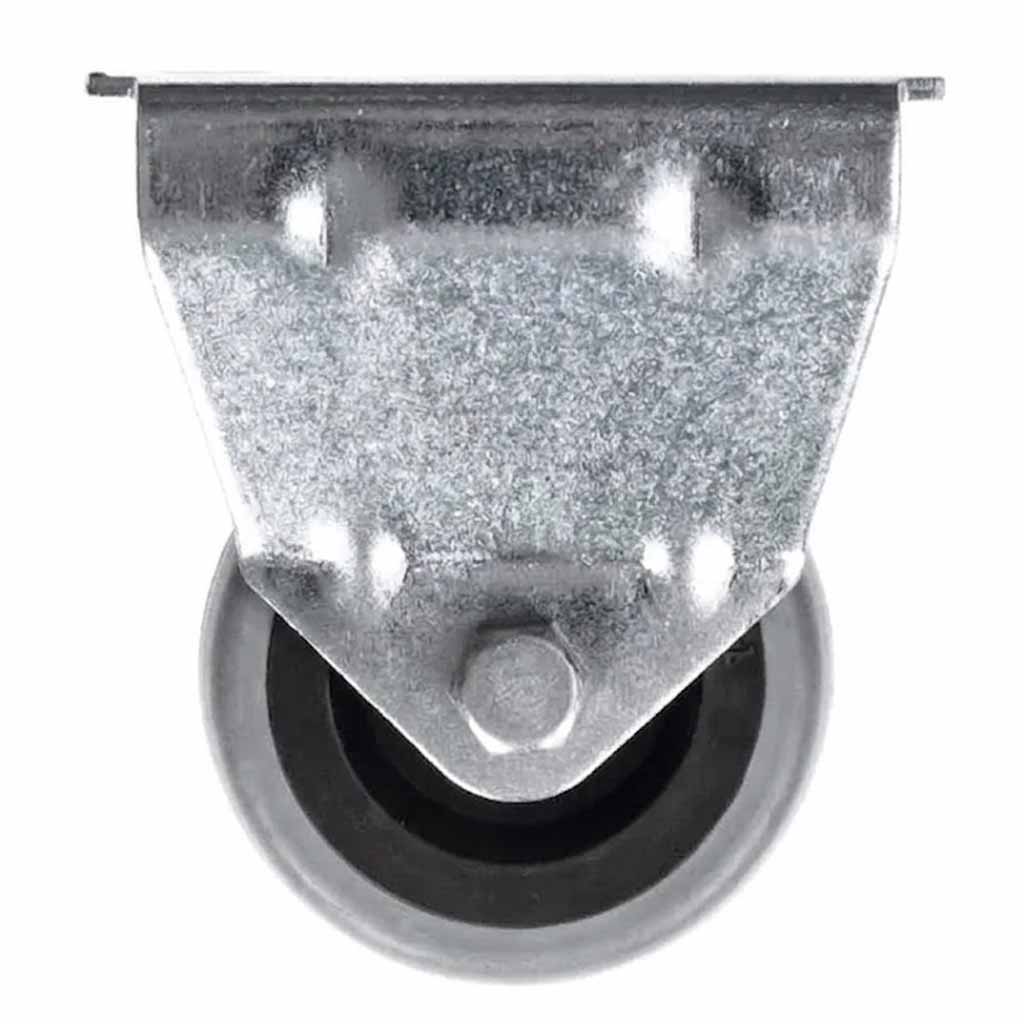

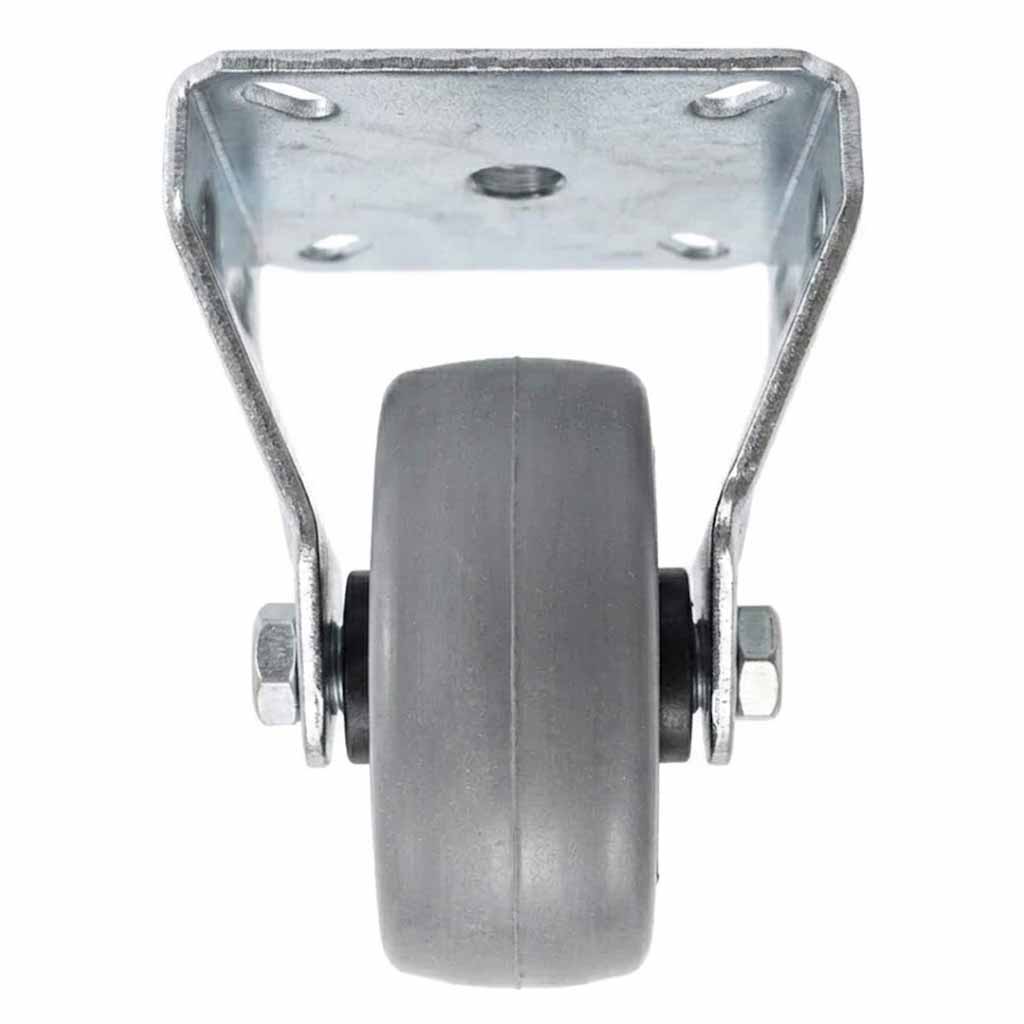

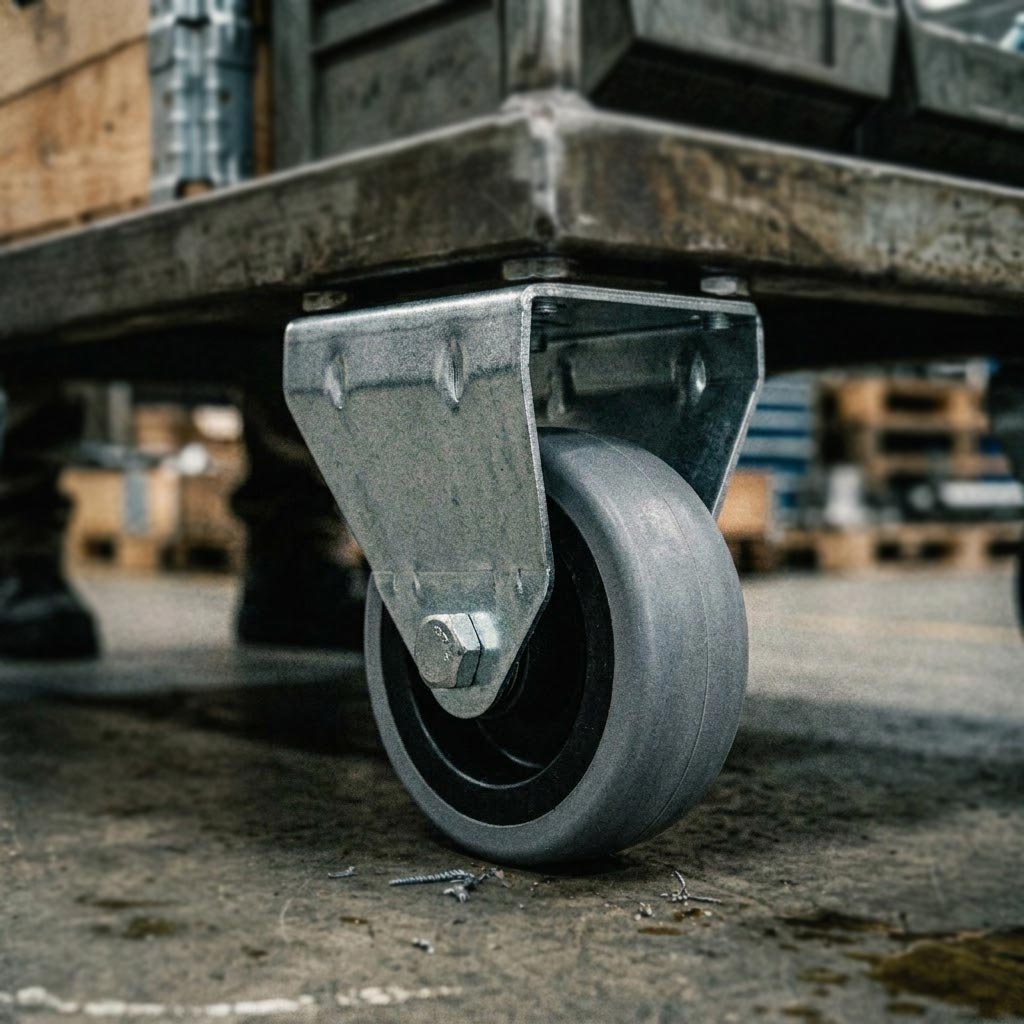

Each castor is built around a pressed steel top plate — a cold-formed steel bracket that provides a rigid, flat mounting surface for bolt-down installation. The plate features four pre-drilled bolt holes arranged in a standard pattern, allowing straightforward fitting to most furniture and equipment frames without specialist tooling.
The wheel uses a dual-compound construction: a black polypropylene (PP) core provides structural rigidity and impact resistance, while an outer grey rubber tread delivers grip, noise reduction, and protection for hard floor surfaces including timber, vinyl, tile, and sealed concrete. The rubber compound is non-marking under normal indoor conditions.

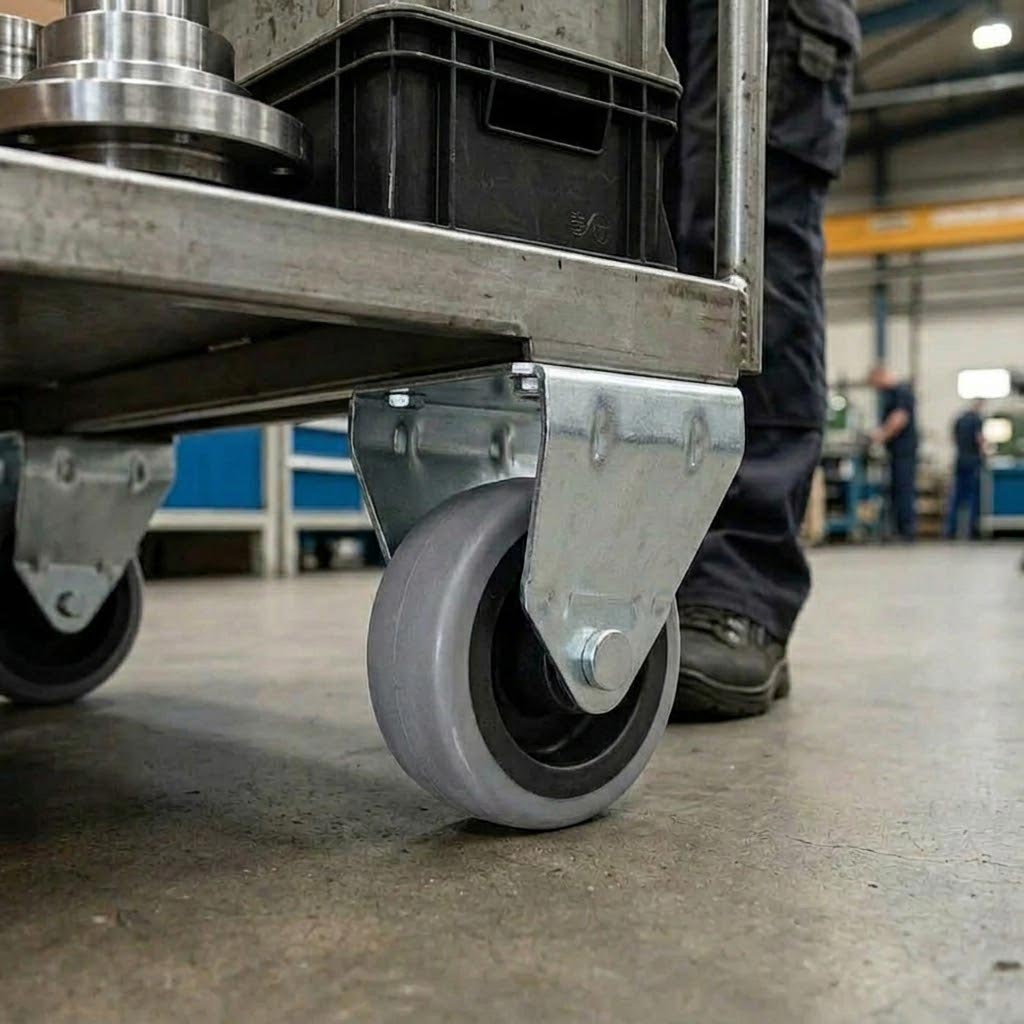

The fixed (non-swivel) yoke design locks the wheel in a single rolling direction, making these castors ideal for straight-line guided movement where directional stability is a priority — typically used in combination with swivel castors on the same platform.
Fitting & Installation Guide
These castors are designed for bolt-on top plate installation. The four-hole plate pattern is a widely adopted standard; however, always verify the hole spacing against your equipment frame before ordering. Use appropriately rated bolts and locking nuts to secure the plate firmly. For mixed configurations, pair fixed castors at the rear of a platform with swivel castors at the front to allow controlled directional steering.
* Always ensure the combined load rating of all fitted castors exceeds the maximum loaded weight of the equipment. Apply a minimum 25% safety margin above the expected working load.
