Description

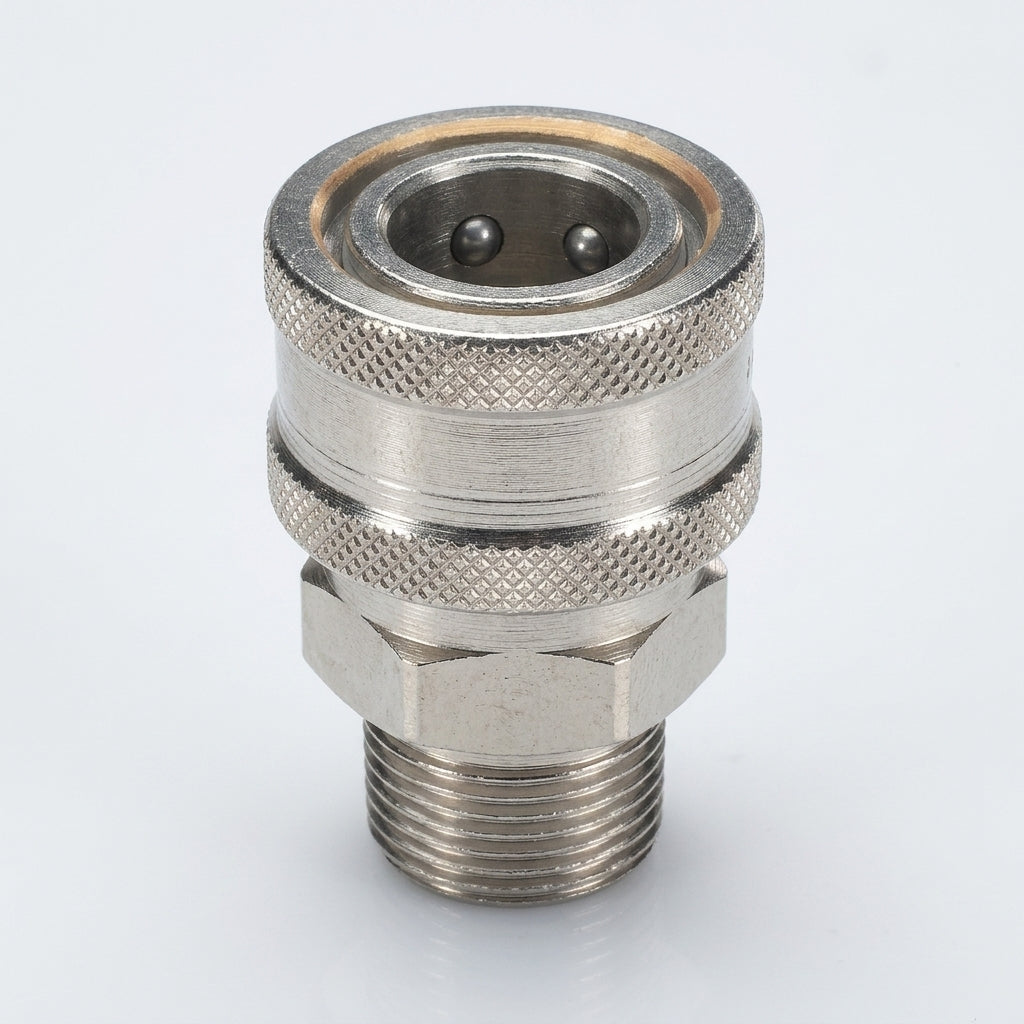

250 bar rated quick release coupling with female QR socket and 3/8" BSP male thread inlet.
Engineered for reliable fluid transfer in high-pressure applications, this coupling features a nickel-plated brass body and nitrile rubber seals for durability and corrosion resistance. The quick-release mechanism enables fast connection and disconnection without spillage, making it ideal for industrial and mobile equipment systems.
Key Features
- 250 bar maximum operating pressure
- 30 litres per minute flow capacity
- 90 °C temperature rating
- Nickel-plated brass construction
- NBR O-ring seals for fluid compatibility
- Compatible with ARS250 series adaptors
Specifications
- Port: 3/8" BSP male thread
- Rated Pressure: 250 bar
- Maximum Flow: 30 Lpm
- Temperature Range: –20 °C to +90 °C
- Body Material: Nickel-plated brass
- Seal Material: NBR
Applications
- Hydraulic system quick connects
- Pneumatic equipment coupling
- Mobile machinery fluid transfer
- Industrial pump connections
- High-pressure line maintenance and servicing
