Description

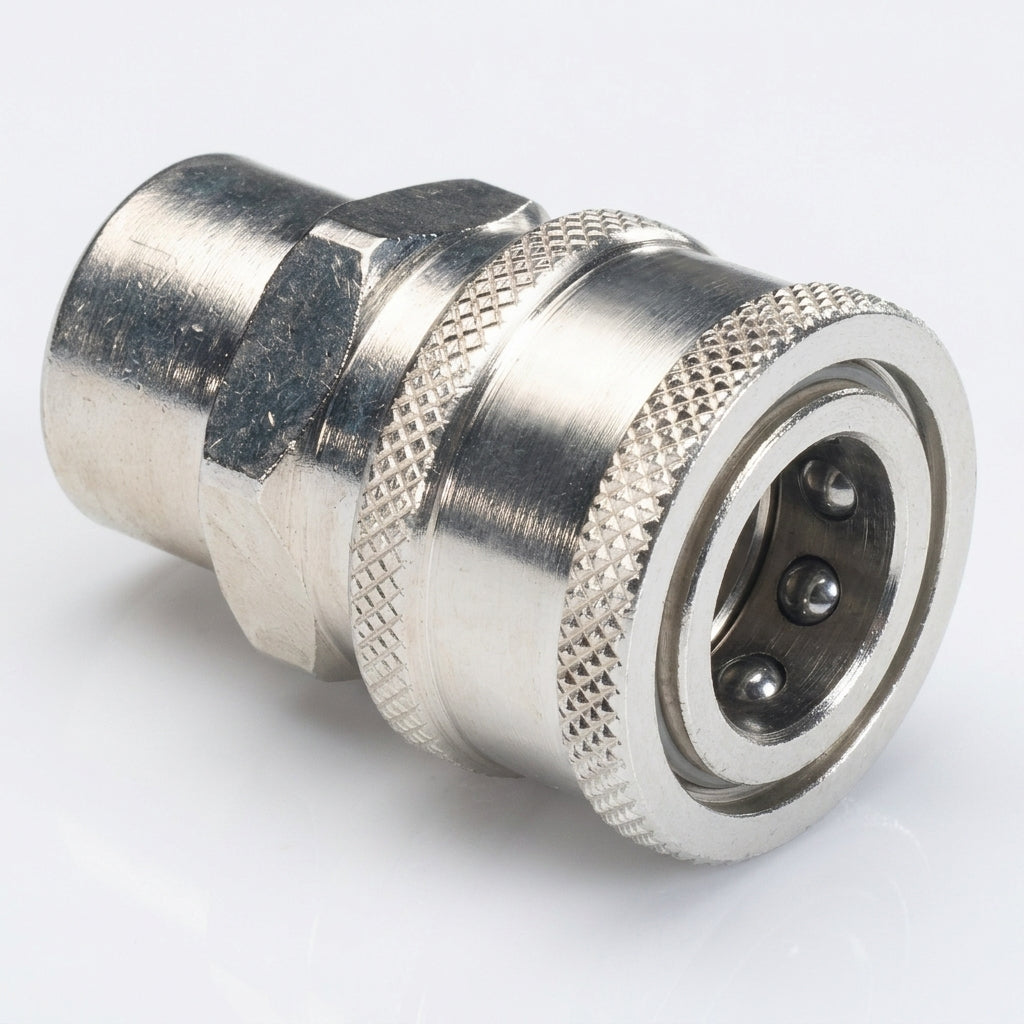

Quick release coupling with female quick-connect socket and 1/4" BSP female thread outlet, rated to 250 bar working pressure.
This nickel-plated brass coupling delivers reliable performance in industrial fluid handling applications. It combines a female quick-release socket with a 1/4" BSP female thread port, enabling rapid disconnection without spillage whilst maintaining secure pressure-rated connections.
Key Features
- Female QRC socket and 1/4" BSP female thread configuration
- 250 bar maximum working pressure
- 30 litres per minute flow capacity
- Nickel-plated brass construction for corrosion resistance
- NBR O-rings for reliable sealing
- Compatible with ARS250 series adaptors
Specifications
- Thread size: 1/4" BSP female
- Pressure rating: 250 bar
- Flow rate: 30 lpm maximum
- Temperature range: up to 90 °C
- Body material: Nickel-plated brass
- Seal type: NBR O-rings
Applications
- Industrial fluid transfer and circulation systems
- Hydraulic equipment connections
- High-pressure washing and cleaning systems
- Temporary or portable fluid handling installations
- Pressure-tested piping networks
