Description
Product Overview

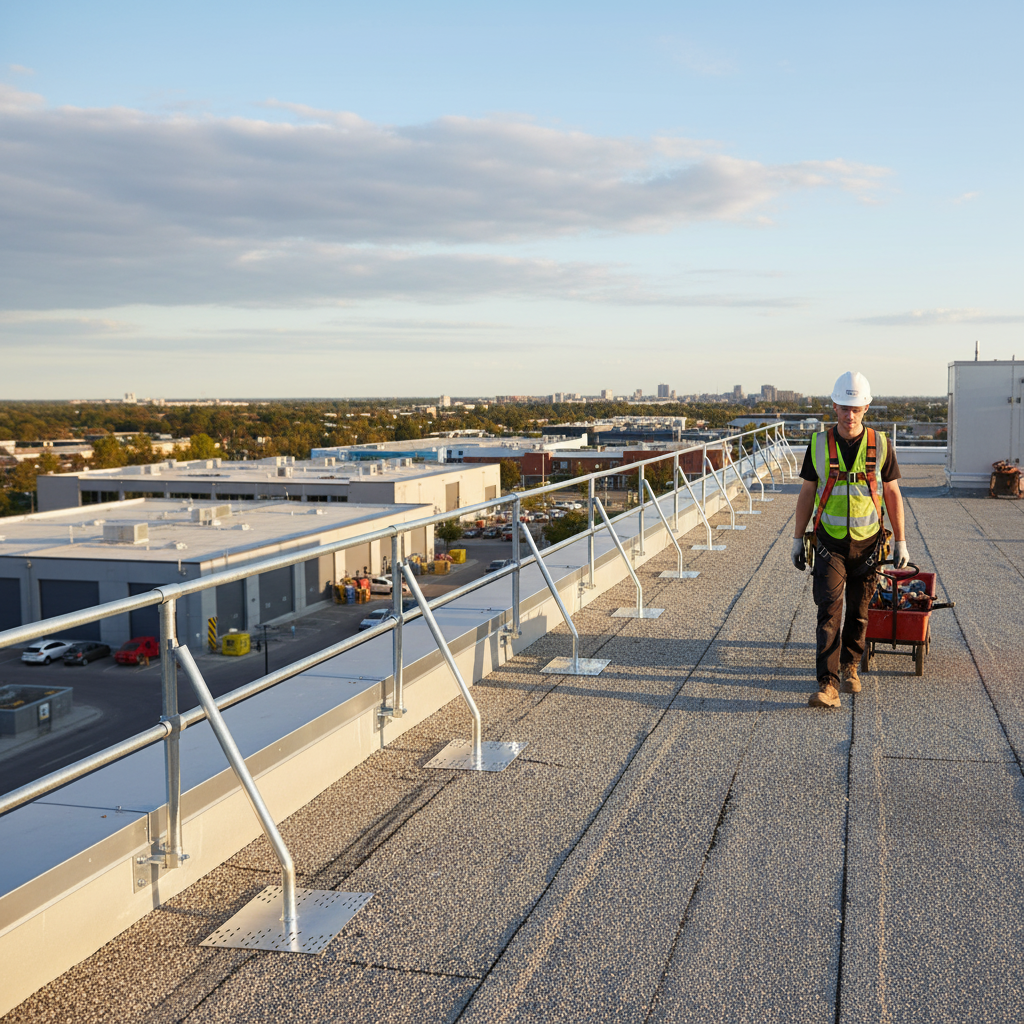

This Heavy Duty Raked Roof Edge Guardrail Post is designed for optimal safety and security on your roof. Standing at 1200mm tall, this post features a robust 48.3mm diameter upright tube with a wall thickness of 3.2mm, ensuring durability and stability. The hot-dip galvanized finish provides a minimum of 20 years of service life, making it a reliable choice for your edge protection needs.
Installation Details
The baseplate of this guardrail post is designed for easy installation on various clad roof profiles. It accommodates a profile peak spacing range of 250mm to 500mm, allowing versatility in application. For secure attachment, it is recommended to use 7.7 rivets, with a minimum of 8 rivets per base plate.
Compatibility
This guardrail post is compatible with your choice of key clamp fittings sized to suit the 48.3mm diameter tubing. Please ensure to order J clamps for horizontal rails, A68-8 post caps/plugs, and other necessary clamps separately to complete your installation.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Height | 1200mm |
| Diameter | 48.3mm |
| Wall Thickness | 3.2mm |
Technical Specifications
- Finish: Hot-dip galvanized for corrosion resistance
- Service Life: Minimum of 20 years
- Recommended Fixing Method: 7.7 rivets
FAQs
-
What is the height of the guardrail post?
The guardrail post is 1200mm tall. -
What is the diameter of the upright tube?
The diameter is 48.3mm. -

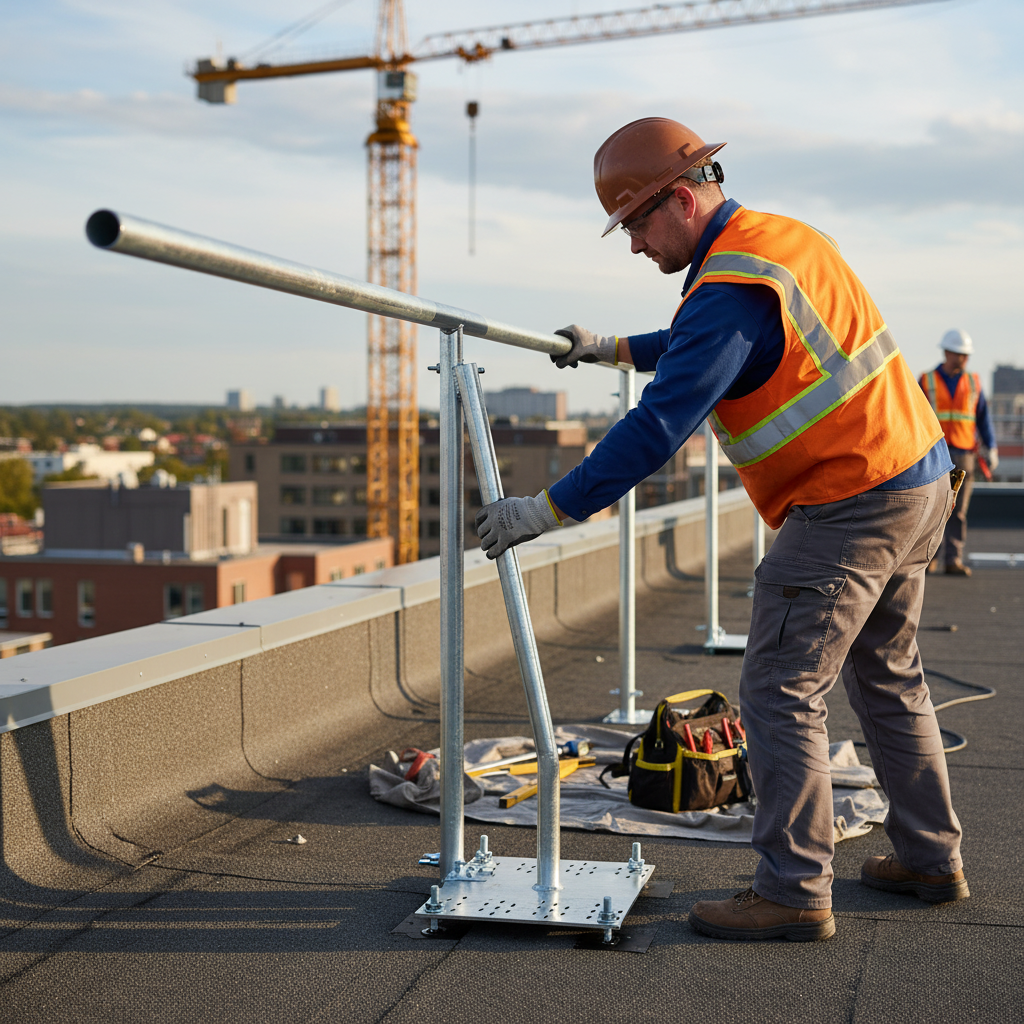

How is the post installed?
The post can be easily installed onto various clad roof profiles using a baseplate and rivets.
