Submersible Sewage Pump 240 L/min 0.4 kW 8 m Head

Submersible pump designed for sewage and waste water containing soft solids, with 240 L/min maximum flow and 8 metre head capacity.

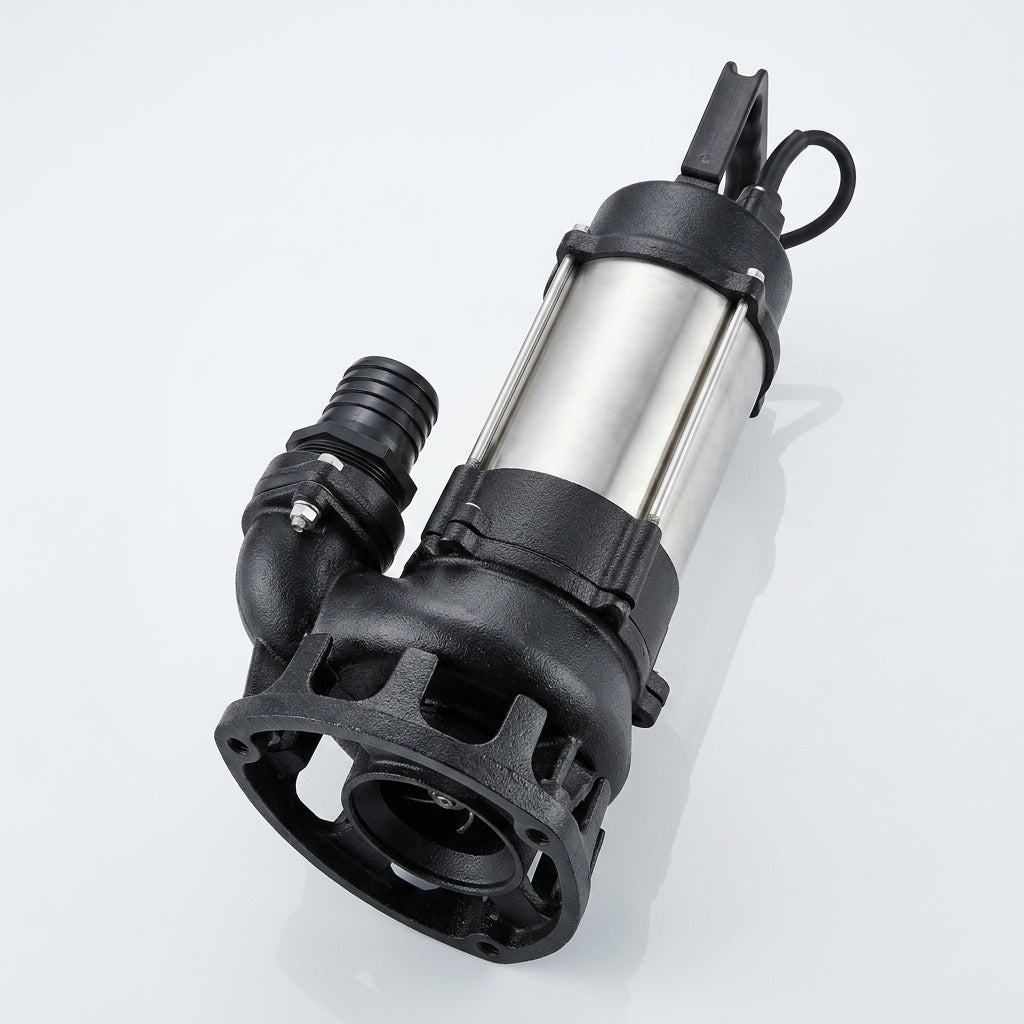

This compact submersible unit features a single-channel cutter impeller that allows soft solids to pass through before discharge. Cast iron body and volute construction combine with stainless steel shaft and motor casing for reliable performance in harsh environments. Twin mechanical seals (carbon ceramic and silicon carbide) provide durability.

Key Features

• Single-channel cutter impeller for soft solids passage
• Cast iron pump body and volute; stainless steel shaft and motor casing
• Twin mechanical seals – carbon ceramic and silicon carbide
• 240 L/min maximum flow rate; 8 metre maximum head
• 0.4 kW motor power; supplied with 10 metres power cable
• 2" BSP female outlet with hose tail connection

Specifications

• Flow: 240 L/min
• Maximum Head: 8 m
• Power: 0.4 kW
• Motor Voltage: 230 V single-phase (manual or automatic control)
• Dimensions: 460 × 145 × 215 mm
• Weight: 17 kg
• Outlet: 2" BSP female with hose tail

Applications

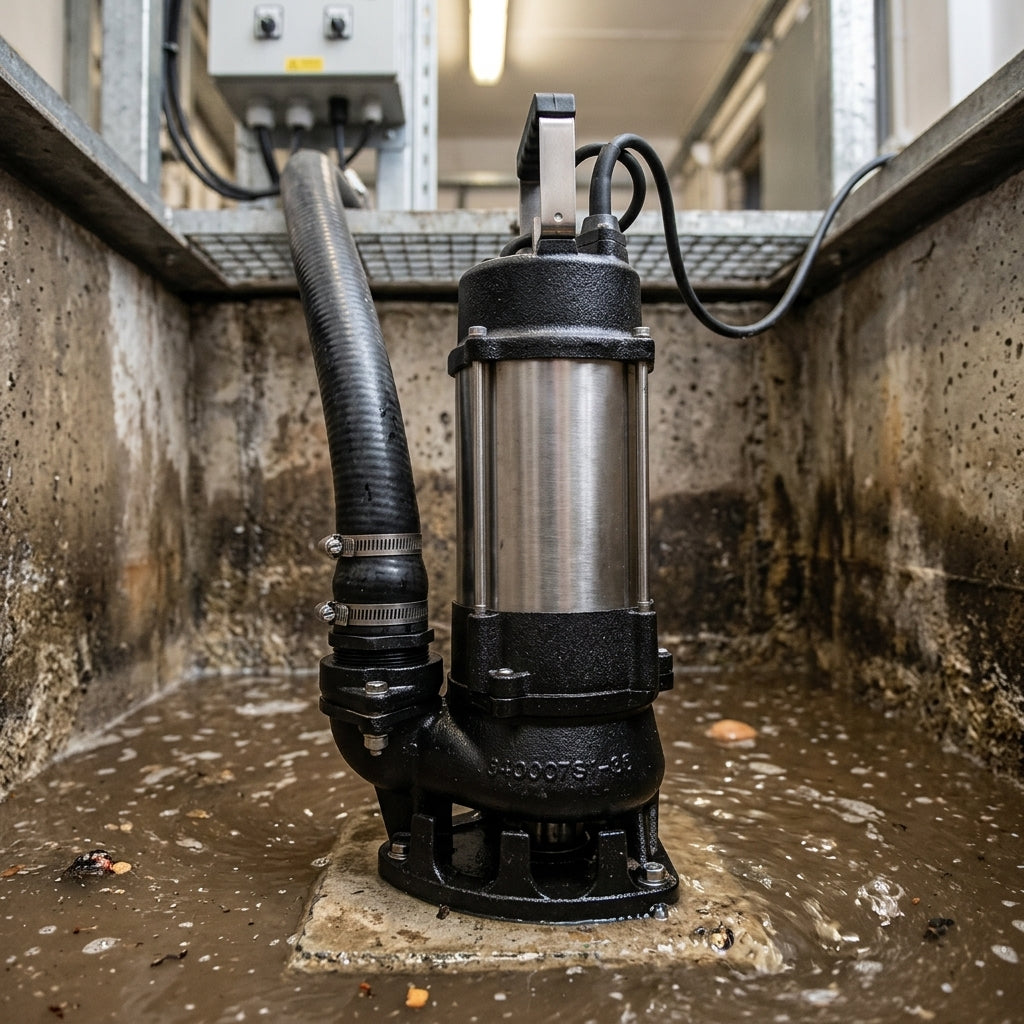

• Sewage and waste water pumping with soft solids content
• Drainage and dewatering in treatment facilities
• Emergency flood water removal from basins and sumps
• Construction site waste water management
• Industrial and municipal sewage handling
