Submersible sewage pump 800 L/min 16m head 230V cutter impeller

Single-channel cutter submersible pump for sewage and waste water with tungsten carbide impeller and grinding diffuser plate.

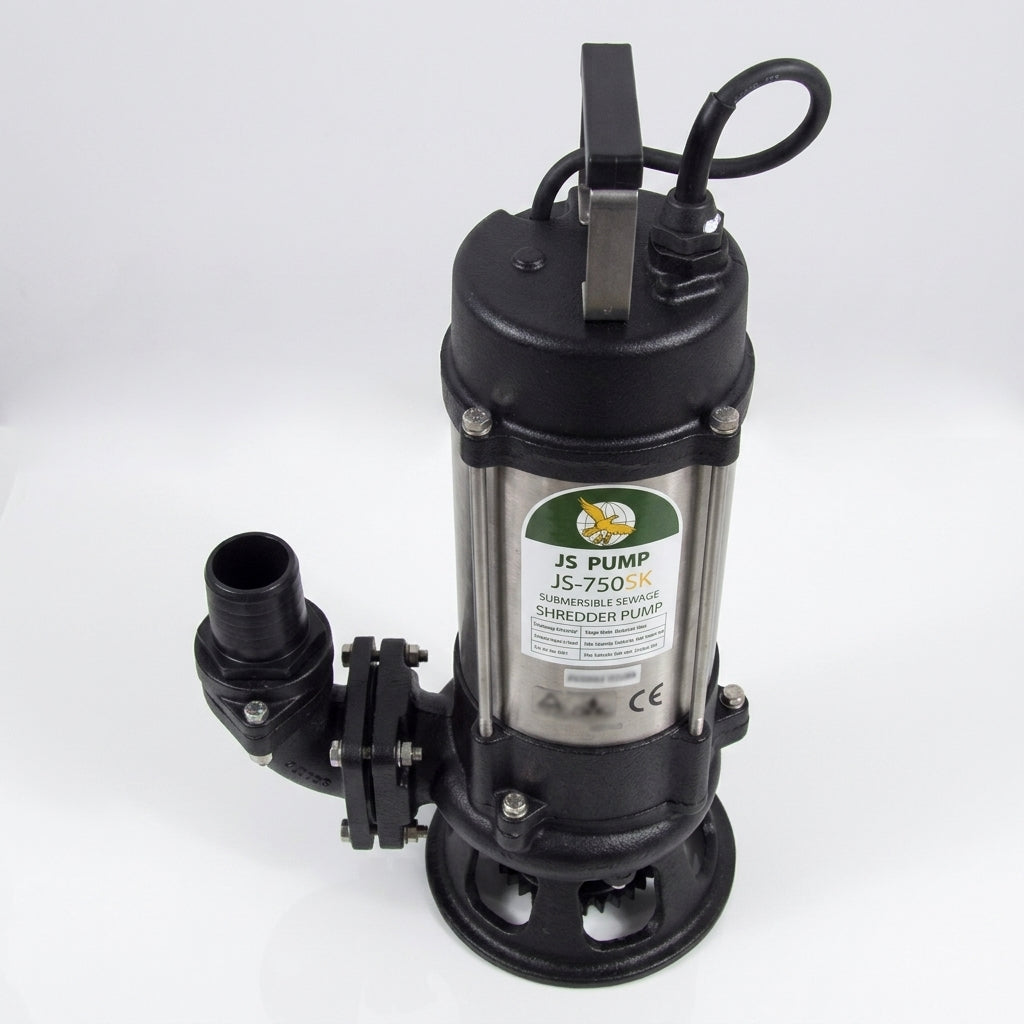

This submersible unit features a cast iron pump body with stainless steel shaft and motor casing for durability in waste water environments. The tungsten carbide-tipped cutter impeller works against a grinding diffuser plate to shred soft solids into smaller particles for efficient passage through the system.

Key Features

• Single-channel cutter impeller with tungsten carbide tip
• Cast iron body and volute stand with stainless steel shaft
• Twin mechanical seals (carbon ceramic and silicon carbide)
• 3" BSP female outlet with hose tail connection
• Supplied with 10 metres of power cable
• Manual or automatic control options available

Specifications

• Flow rate: 800 L/min maximum
• Maximum head: 16 metres
• Power: 230V (manual or automatic)
• Weight: 36.4 kg
• Dimensions: 580 x 1050 x 680 mm
• Outlet: 3" BSP female

Applications

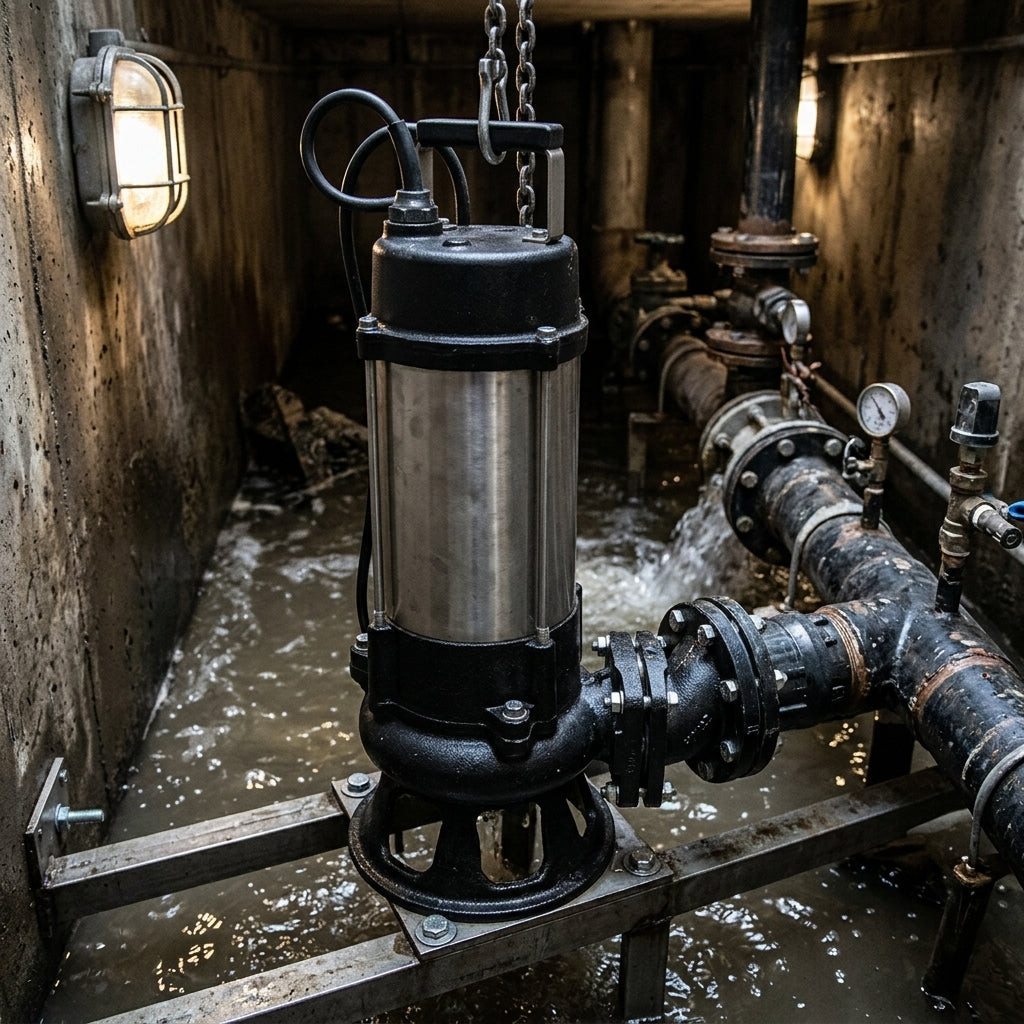

• Sewage and waste water pumping
• Solids handling and grinding
• Emergency flood protection systems
• Industrial waste water discharge
• Commercial drainage systems
