Description

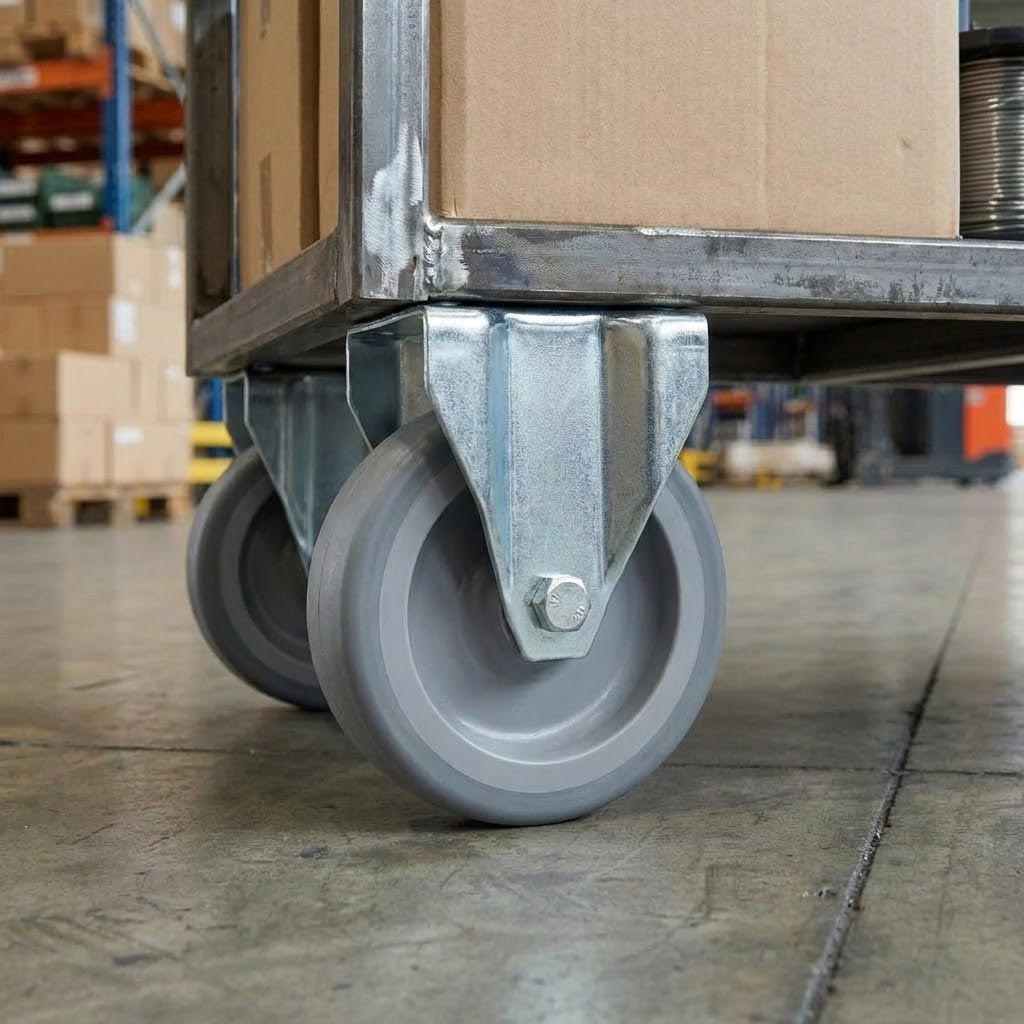

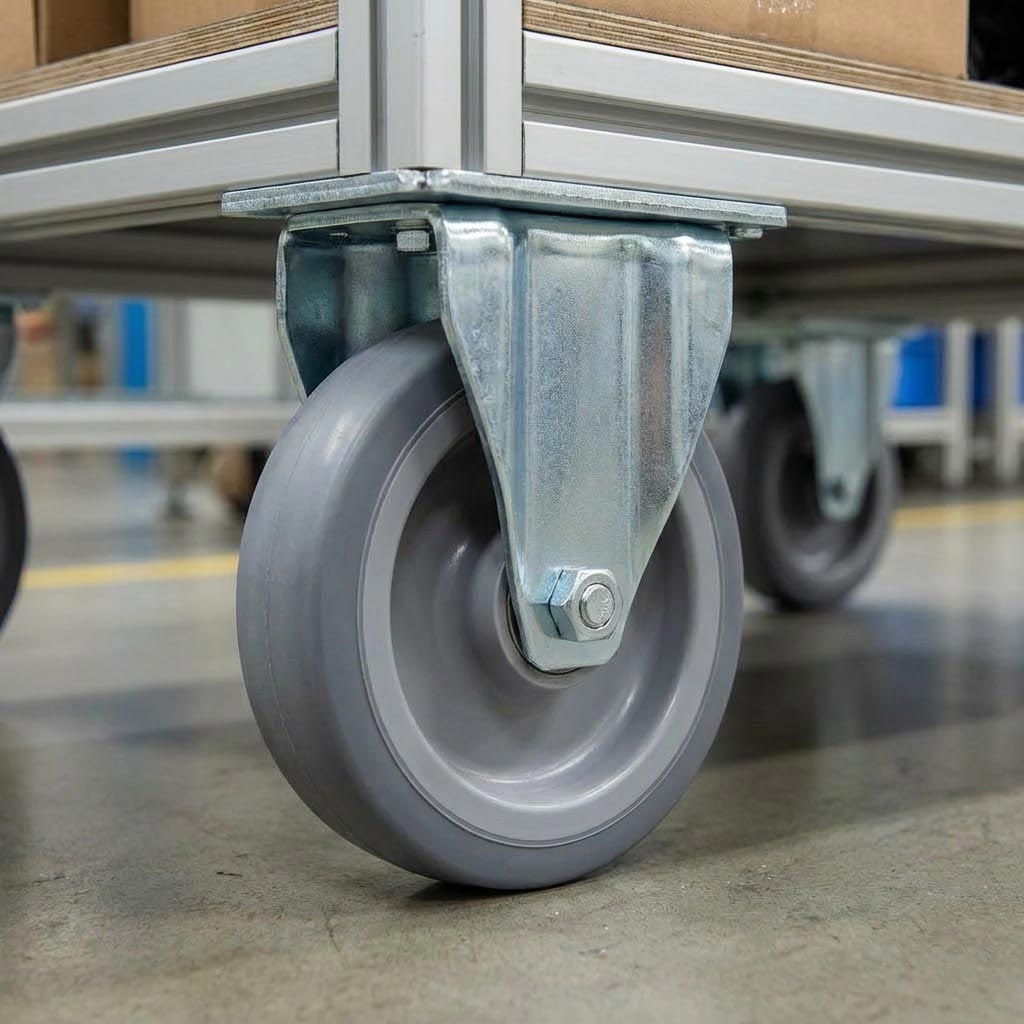

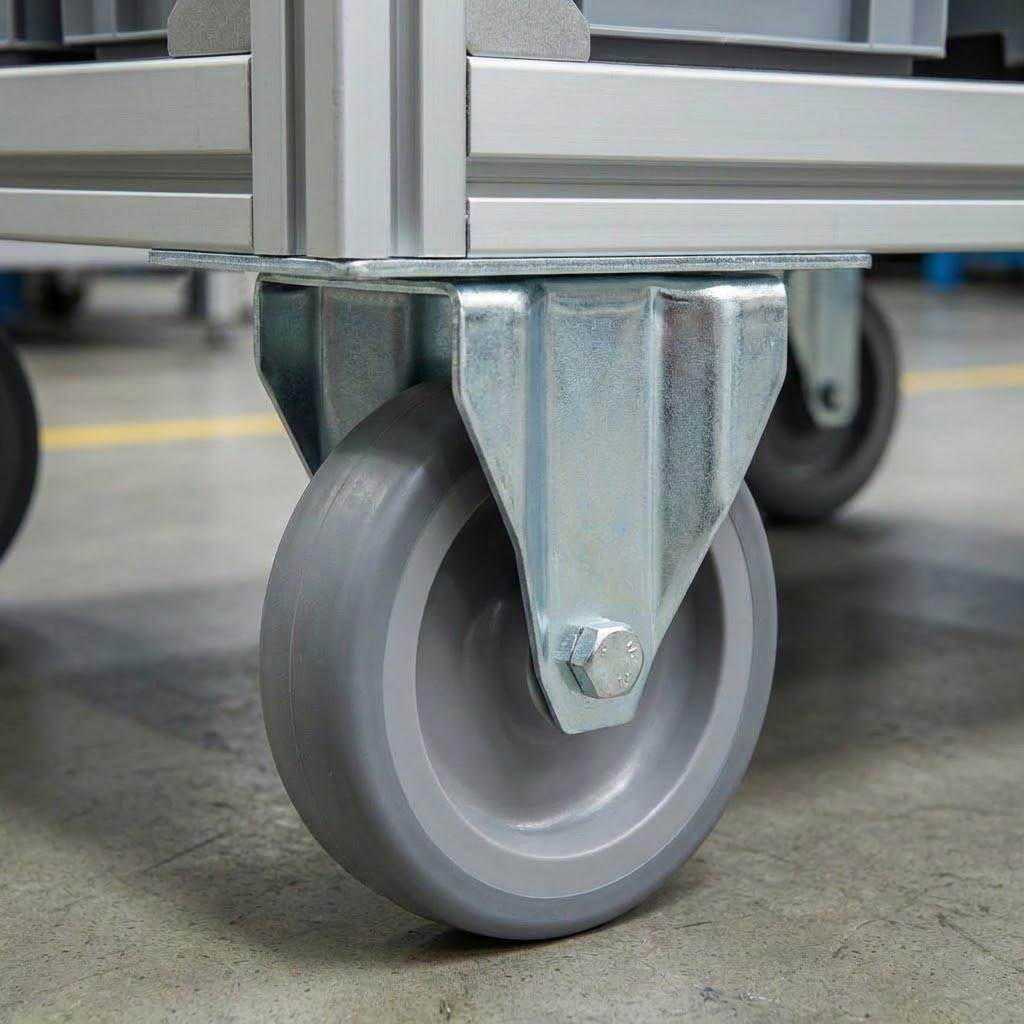

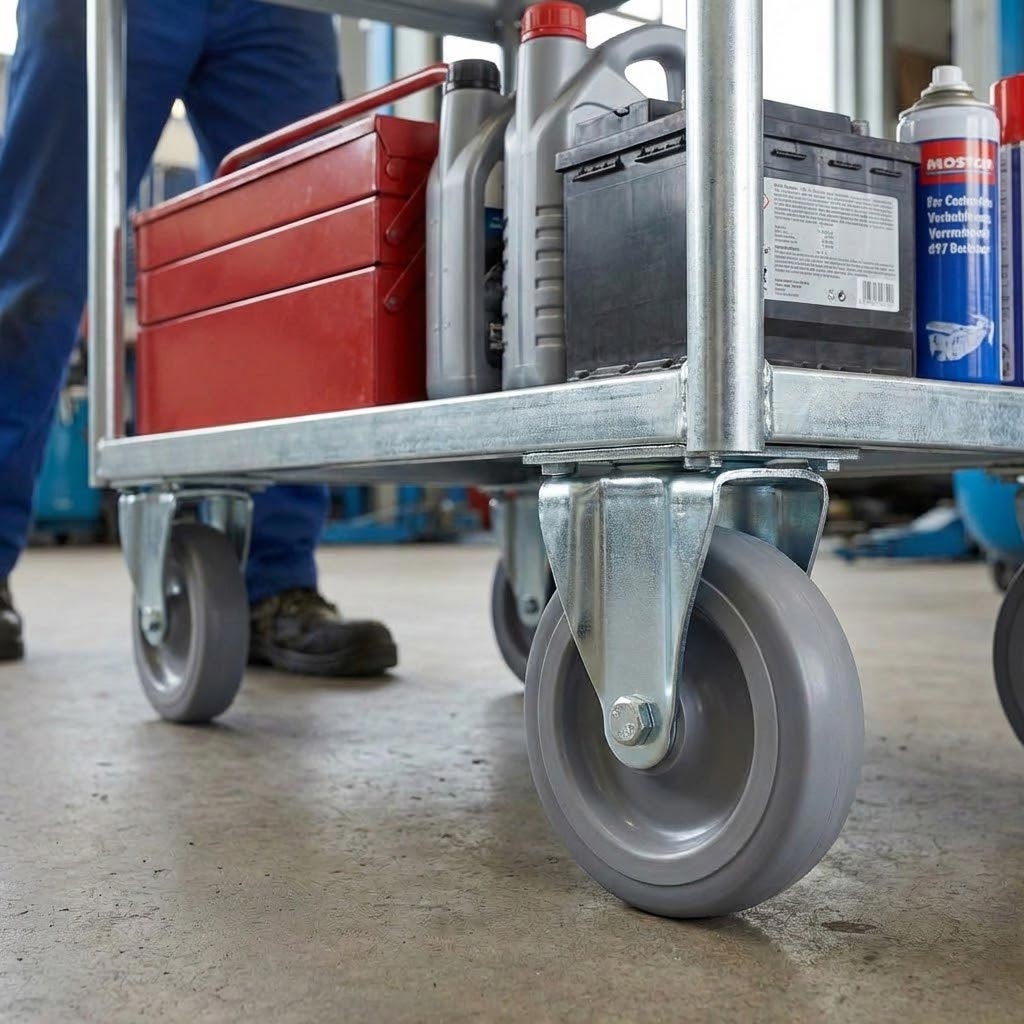

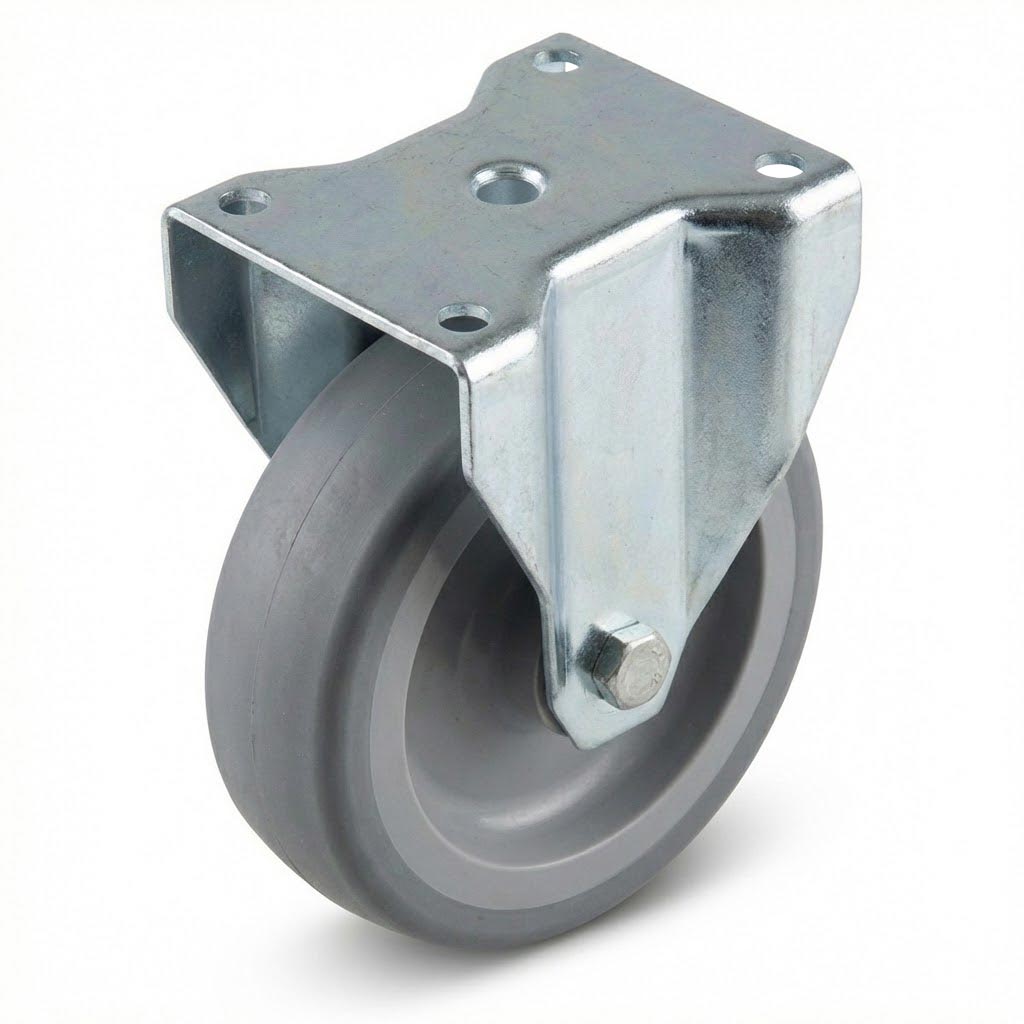

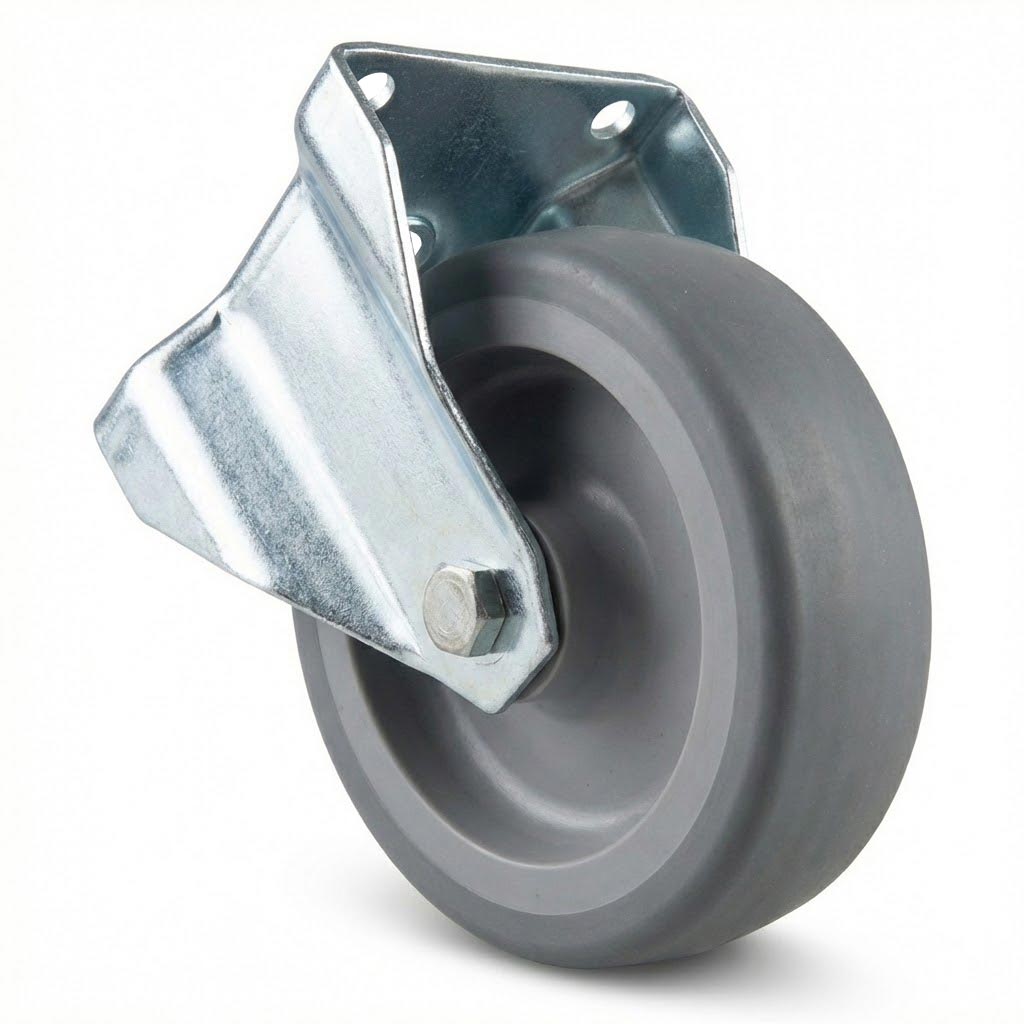

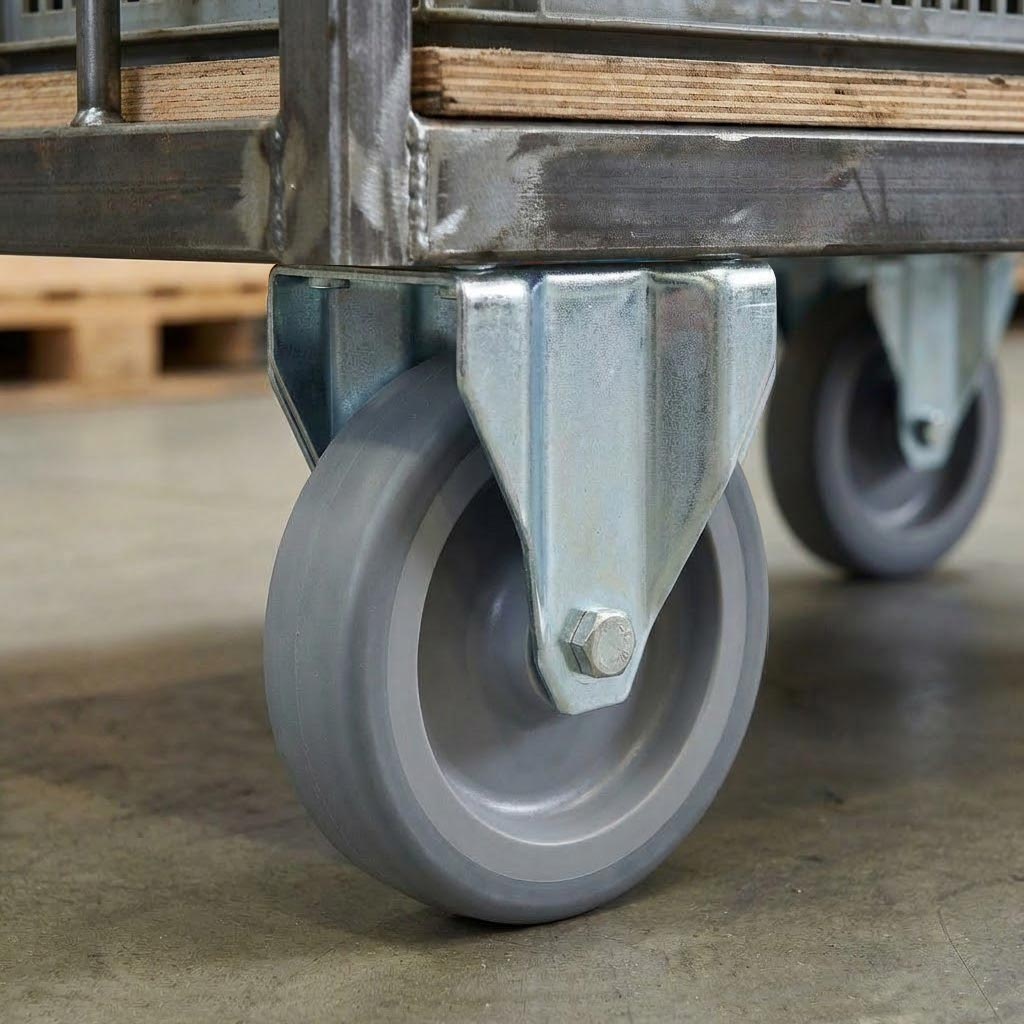

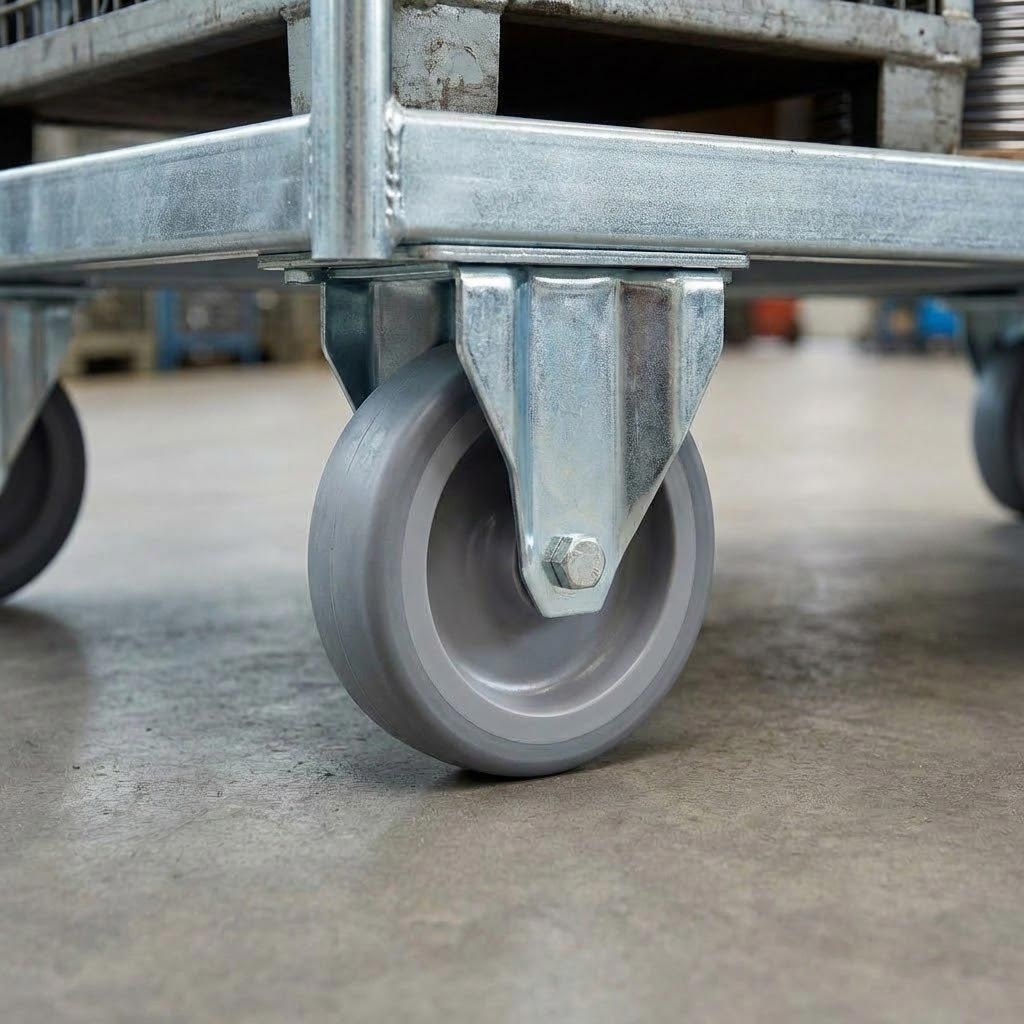

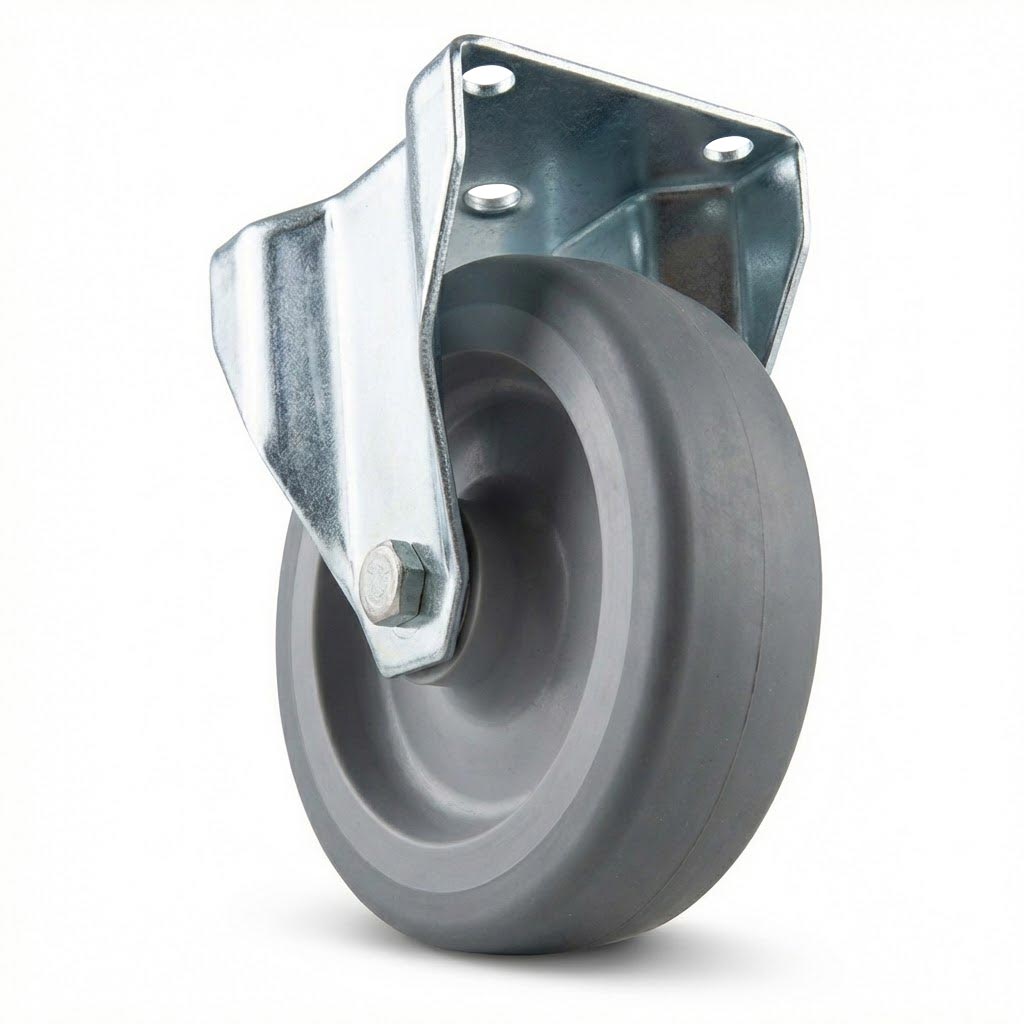

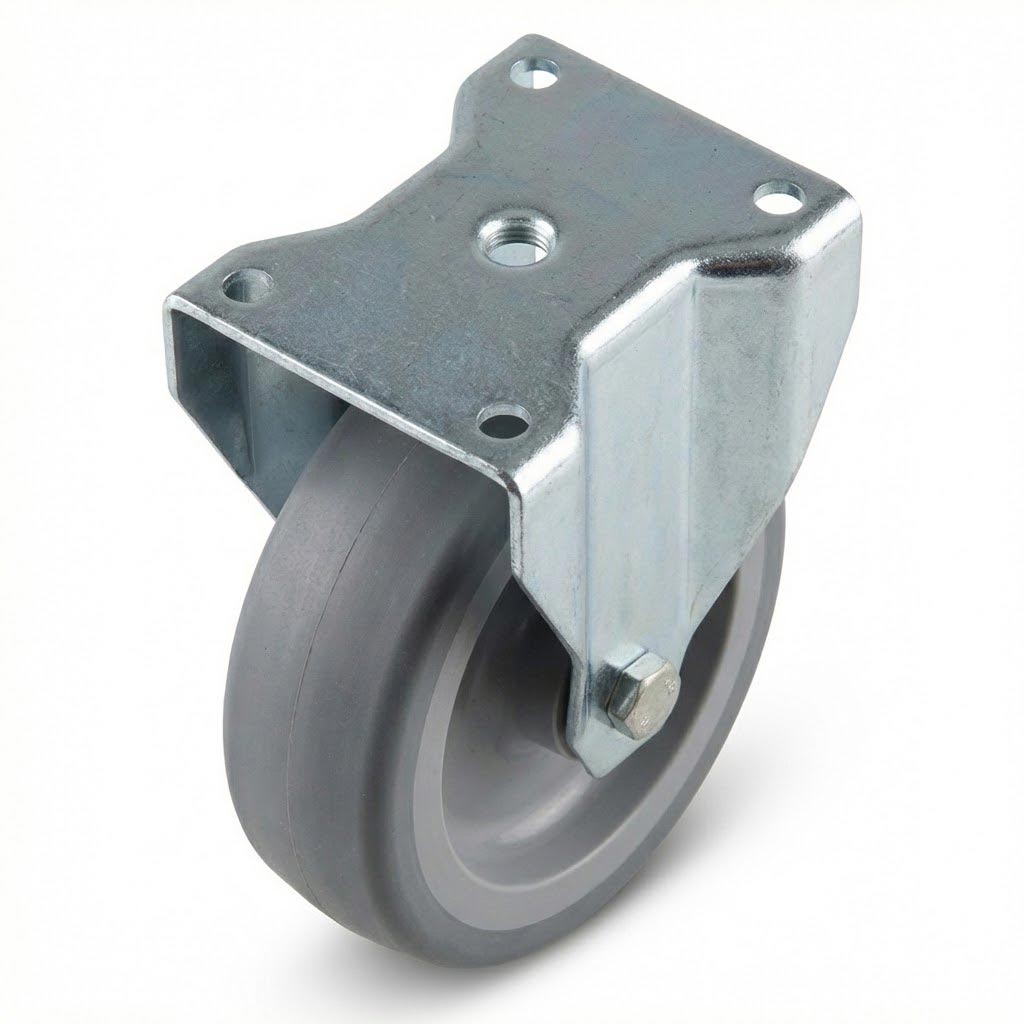

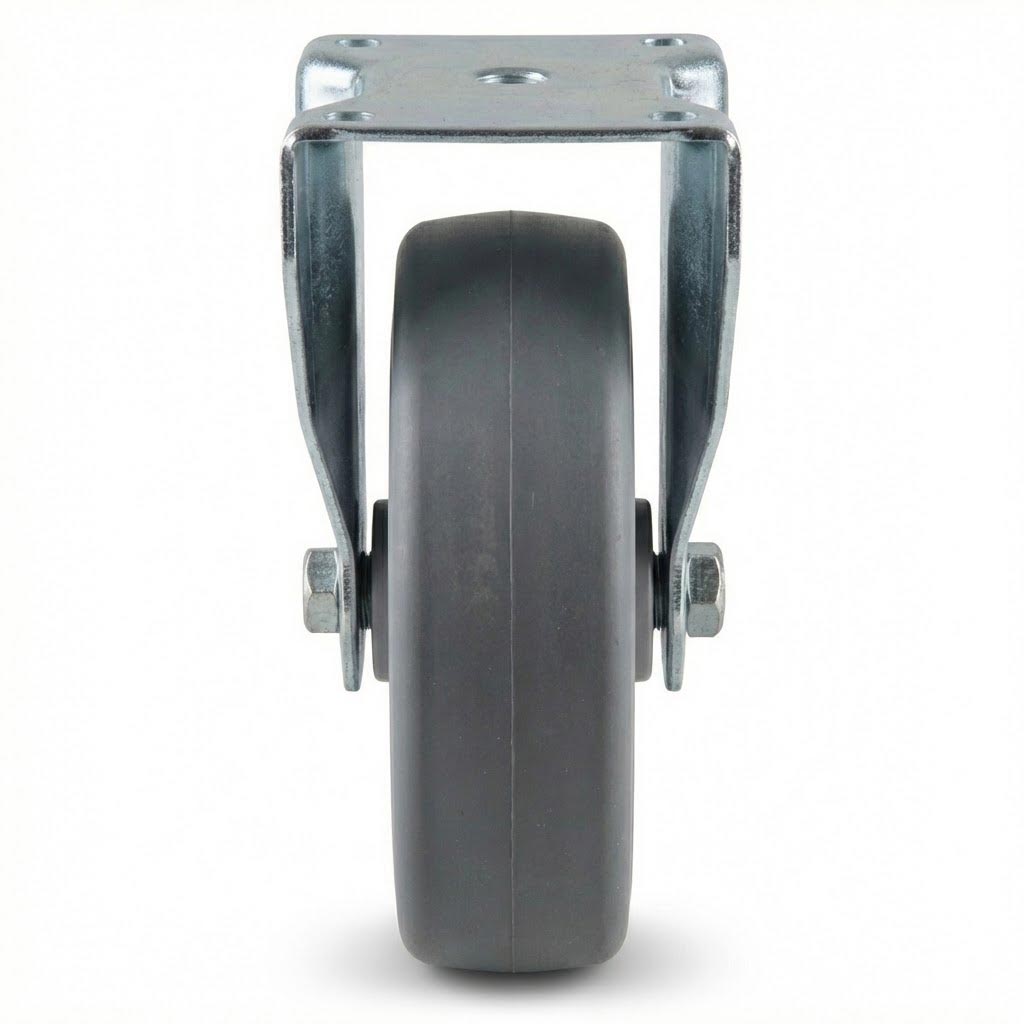

Zinc Plated Fixed Castors with Grey Thermoplastic Rubber Wheel
These zinc plated fixed castors are fitted with a grey thermoplastic rubber (TPR) wheel mounted on a polypropylene centre, delivering quiet, floor-friendly movement across a wide range of commercial and institutional surfaces. Available in four wheel diameters — 60mm, 80mm, 100mm, and 125mm — with load ratings from 40kg up to 100kg per castor, this range is engineered for retail displays, medical trolleys, office furniture, warehouse equipment, and light-duty industrial applications where a fixed, straight-line castor is required.
Each castor features a zinc plated top plate for corrosion resistance, a plain bearing for low-maintenance operation, and a grey TPR tread rated at 88 Shore A hardness — firm enough for durability, yet compliant enough to protect sensitive flooring. Select the size that matches your load requirement and mounting plate dimensions from the variant options above.
Available in Multiple Castor Wheel Sizes & Types
Explore this castor wheel range in different types. Available in multiple sizes with different load capacities.
Combined Specification Overview — All Variants
| Specification | 60mm / 40kg | 80mm / 50kg | 100mm / 80kg | 125mm / 100kg |
|---|---|---|---|---|
| Castor Type | Fixed — Top Plate | Fixed — Top Plate | Fixed — Top Plate | Fixed — Top Plate |
| Wheel Diameter (mm) | 60 | 80 | 100 | 125 |
| Load Capacity (kg) | 40 | 50 | 80 | 100 |
| Total Castor Height (mm) | 87 | 107 | 134 | 162 |
| Tread Width (mm) | 22 | 22 | 30 | 30 |
| Tread Hardness | 88 Shore A | 88 Shore A | 88 Shore A | 88 Shore A |
| Wheel Colour | Grey | Grey | Grey | Grey |
| Wheel Material | TPR on Polypropylene | TPR on Polypropylene | TPR on Polypropylene | TPR on Polypropylene |
| Bearing Type | Plain | Plain | Plain | Plain |
| Plate Length (mm) | 65 | 65 | 95 | 95 |
| Plate Width (mm) | 50 | 50 | 70 | 70 |
| Hole Centres — Length (mm) | 50 | 50 | 76 / 70 | 76 / 70 |
| Hole Centres — Width (mm) | 36 | 36 | 50 / 44.5 | 50 / 44.5 |
| Plate Hole Diameter (mm) | 6 | 6 | 8 | 8 |
| Plate Finish | Zinc Plated | Zinc Plated | Zinc Plated | Zinc Plated |
60mm Fixed Castor — Grey TPR Wheel — 40kg Load Capacity
The 60mm fixed castor is the most compact option in this range, designed for light-duty applications where space is limited and precise directional movement is required. With a 40kg load rating and an overall height of just 87mm, it is well suited to retail display units, point-of-sale fixtures, lightweight office furniture, and domestic appliance trolleys. The grey TPR wheel rolls quietly and leaves no marks on hard flooring, making it a practical choice for customer-facing environments.
Key Features
- Compact 60mm wheel diameter for tight-space manoeuvrability
- 40kg load capacity per castor — suitable for light to medium loads
- Total castor height of 87mm for low-profile installations
- 22mm tread width for stable, even load distribution
- Grey TPR wheel on polypropylene centre — non-marking and floor-safe
- 88 Shore A tread hardness — durable yet surface-protective
- Zinc plated top plate — corrosion resistant for indoor use
- Plain bearing — maintenance-free and easy to install
Applications
- Retail display stands and point-of-sale units
- Lightweight office chairs and under-desk pedestals
- Medical and dental equipment trolleys
- Domestic appliance and home furniture mobility
Technical Specification
| Castor Type | Fixed — Top Plate |
|---|---|
| Wheel Diameter (mm) | 60 |
| Load Capacity (kg) | 40 |
| Total Castor Height (mm) | 87 |
| Tread Width (mm) | 22 |
| Tread Hardness | 88 Shore A |
| Wheel Colour | Grey |
| Wheel Material | Thermoplastic Rubber on Polypropylene |
| Bearing Type | Plain |
| Plate Length (mm) | 65 |
| Plate Width (mm) | 50 |
| Plate Hole Centres — Length (mm) | 50 |
| Plate Hole Centres — Width (mm) | 36 |
| Plate Hole Diameter (mm) | 6 |
| Plate Finish | Zinc Plated |
80mm Fixed Castor — Grey TPR Wheel — 50kg Load Capacity
The 80mm fixed castor steps up in both wheel diameter and load capacity, handling up to 50kg per castor while maintaining the same compact plate footprint as the 60mm model. At 107mm overall height, it provides slightly more ground clearance and rolls more smoothly over minor floor irregularities. This size is a popular choice for retail trolleys, catering equipment, and office storage units where moderate loads need to be moved reliably and quietly.
Key Features
- 80mm wheel diameter for improved roll over uneven surfaces
- 50kg load capacity per castor — suitable for moderate loads
- Total castor height of 107mm
- 22mm tread width for balanced stability
- Grey TPR wheel on polypropylene centre — quiet and non-marking
- 88 Shore A tread hardness
- Zinc plated top plate for corrosion resistance
- Plain bearing — low maintenance
Applications
- Retail trolleys and stock movement carts
- Catering and hospitality service trolleys
- Office storage pedestals and filing cabinets
- Light workshop equipment and tool stands
Technical Specification
| Castor Type | Fixed — Top Plate |
|---|---|
| Wheel Diameter (mm) | 80 |
| Load Capacity (kg) | 50 |
| Total Castor Height (mm) | 107 |
| Tread Width (mm) | 22 |
| Tread Hardness | 88 Shore A |
| Wheel Colour | Grey |
| Wheel Material | Thermoplastic Rubber on Polypropylene |
| Bearing Type | Plain |
| Plate Length (mm) | 65 |
| Plate Width (mm) | 50 |
| Plate Hole Centres — Length (mm) | 50 |
| Plate Hole Centres — Width (mm) | 36 |
| Plate Hole Diameter (mm) | 6 |
| Plate Finish | Zinc Plated |
100mm Fixed Castor — Grey TPR Wheel — 80kg Load Capacity
The 100mm fixed castor is the mid-to-heavy option in this range, rated to 80kg per castor and built for applications where heavier loads must be moved with control and minimal floor impact. The larger 95mm x 70mm plate provides a more secure mounting footprint, and the 30mm tread width distributes weight more evenly across the floor surface. At 134mm overall height, this castor suits warehouse trolleys, industrial shelving units, and heavy retail fixtures that require dependable straight-line movement.
Key Features
- 100mm wheel diameter for smooth movement under heavier loads
- 80kg load capacity per castor
- Total castor height of 134mm
- 30mm tread width for improved load distribution
- Grey TPR wheel on polypropylene centre
- 88 Shore A tread hardness
- Larger 95mm x 70mm zinc plated top plate
- Dual hole centre options: 76/70mm (length) x 50/44.5mm (width) for flexible mounting
- 8mm plate hole diameter
- Plain bearing
Applications
- Warehouse shelving units and stock trolleys
- Heavy retail display fixtures and gondola units
- Medical equipment and hospital bed frames
- Workshop tool chests and mobile workbenches
Technical Specification
| Castor Type | Fixed — Top Plate |
|---|---|
| Wheel Diameter (mm) | 100 |
| Load Capacity (kg) | 80 |
| Total Castor Height (mm) | 134 |
| Tread Width (mm) | 30 |
| Tread Hardness | 88 Shore A |
| Wheel Colour | Grey |
| Wheel Material | Thermoplastic Rubber on Polypropylene |
| Bearing Type | Plain |
| Plate Length (mm) | 95 |
| Plate Width (mm) | 70 |
| Plate Hole Centres — Length (mm) | 76 / 70 |
| Plate Hole Centres — Width (mm) | 50 / 44.5 |
| Plate Hole Diameter (mm) | 8 |
| Plate Finish | Zinc Plated |
125mm Fixed Castor — Grey TPR Wheel — 100kg Load Capacity
The 125mm fixed castor is the largest and most capable option in this range, rated to 100kg per castor and designed for demanding applications where heavy loads must be relocated safely and efficiently. The 30mm wide grey TPR tread rolls smoothly over hard floors without marking, while the 162mm overall height provides generous ground clearance for larger equipment. The 95mm x 70mm zinc plated plate with dual hole centre options ensures compatibility with a wide range of mounting configurations on heavy-duty trolleys, industrial carts, and large retail fixtures.
Key Features
- 125mm wheel diameter — maximum roll efficiency under heavy loads
- 100kg load capacity per castor
- Total castor height of 162mm
- 30mm tread width for superior load distribution
- Grey TPR wheel on polypropylene centre — non-marking
- 88 Shore A tread hardness
- 95mm x 70mm zinc plated top plate
- Dual hole centre options: 76/70mm (length) x 50/44.5mm (width)
- 8mm plate hole diameter
- Plain bearing
Applications
- Heavy-duty warehouse trolleys and pallet movers
- Large retail gondola units and shop-fitting fixtures
- Industrial mobile workstations and tool storage
- Institutional laundry and catering trolleys
Technical Specification
| Castor Type | Fixed — Top Plate |
|---|---|
| Wheel Diameter (mm) | 125 |
| Load Capacity (kg) | 100 |
| Total Castor Height (mm) | 162 |
| Tread Width (mm) | 30 |
| Tread Hardness | 88 Shore A |
| Wheel Colour | Grey |
| Wheel Material | Thermoplastic Rubber on Polypropylene |
| Bearing Type | Plain |
| Plate Length (mm) | 95 |
| Plate Width (mm) | 70 |
| Plate Hole Centres — Length (mm) | 76 / 70 |
| Plate Hole Centres — Width (mm) | 50 / 44.5 |
| Plate Hole Diameter (mm) | 8 |
| Plate Finish | Zinc Plated |
Frequently Asked Questions
What is the difference between a fixed castor and a swivel castor?
A fixed castor is mounted in a rigid bracket that allows movement in one direction only — straight forward or backward. It does not rotate on a vertical axis. Fixed castors are typically used in combination with swivel castors on trolleys and carts: the fixed castors provide directional stability and straight-line tracking, while the swivel castors at the opposite end allow steering. If you need full 360-degree manoeuvrability from a single castor, a swivel castor would be the appropriate choice.
How do I choose the correct castor size for my application?
Two factors determine the correct size: load capacity and overall height. First, calculate the total weight of the loaded equipment and divide by the number of castors — the result must not exceed the per-castor load rating. Second, check the overall castor height against the clearance available on your equipment. Larger wheel diameters also roll more easily over minor floor imperfections and reduce rolling resistance under heavier loads. Use the combined specification table at the top of this page to compare all four options side by side.
Are these castors suitable for use on hard floors such as tiles, vinyl, or laminate?
Yes. The grey thermoplastic rubber tread is non-marking and floor-safe on hard surfaces including ceramic tile, vinyl, laminate, polished concrete, and hardwood. The 88 Shore A hardness rating means the tread is firm enough to roll efficiently under load without deforming, while remaining compliant enough to avoid scratching or scuffing sensitive floor finishes. These castors are not intended for outdoor use or heavily contaminated surfaces.
How are these castors mounted, and what fixings are required?
All four variants use a top plate (also known as a face plate) mounting system. The plate is bolted directly to the underside of the equipment using the pre-drilled hole pattern. The 60mm and 80mm models use a 65mm x 50mm plate with 6mm diameter holes on 50mm x 36mm centres. The 100mm and 125mm models use a larger 95mm x 70mm plate with 8mm diameter holes on dual centres of 76/70mm x 50/44.5mm, providing compatibility with a wider range of equipment frames. Standard M6 or M8 bolts and washers (not supplied) are used to secure the plate.
