Description
Overview

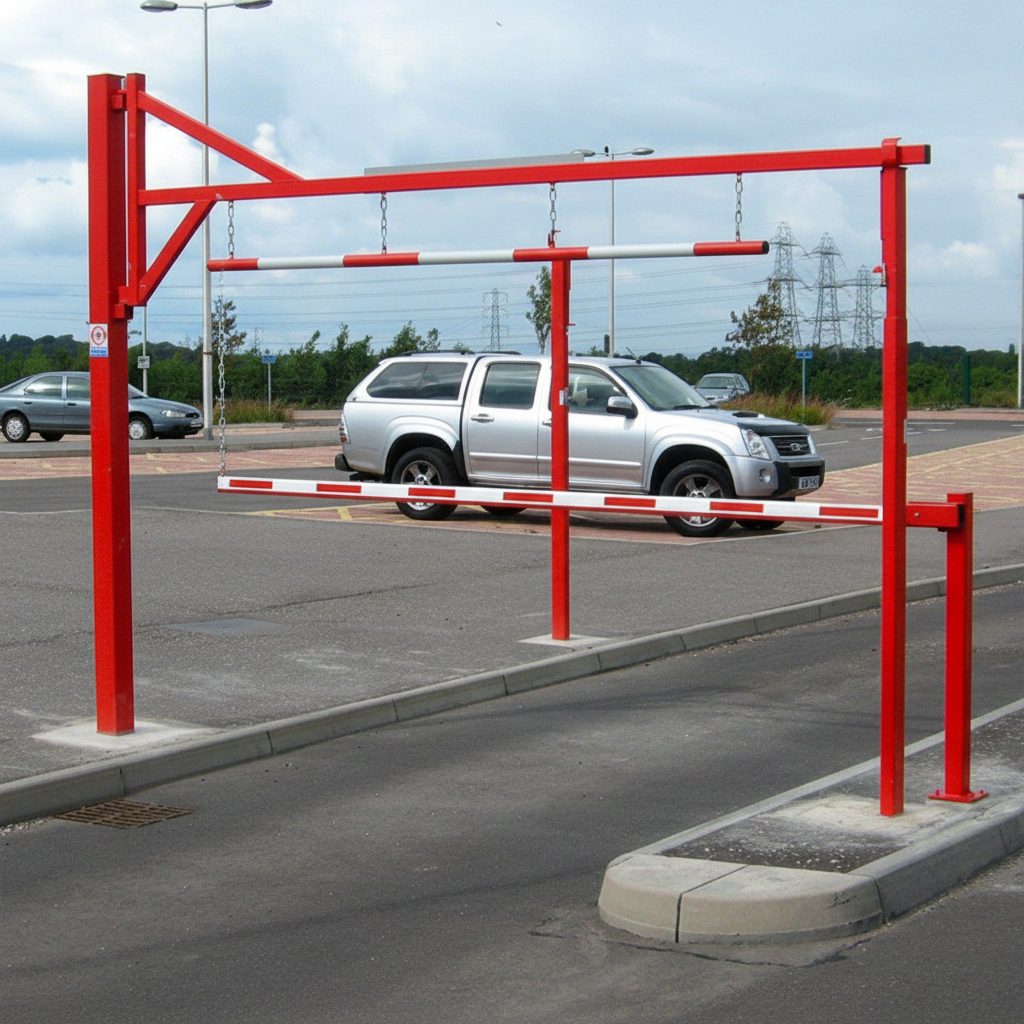

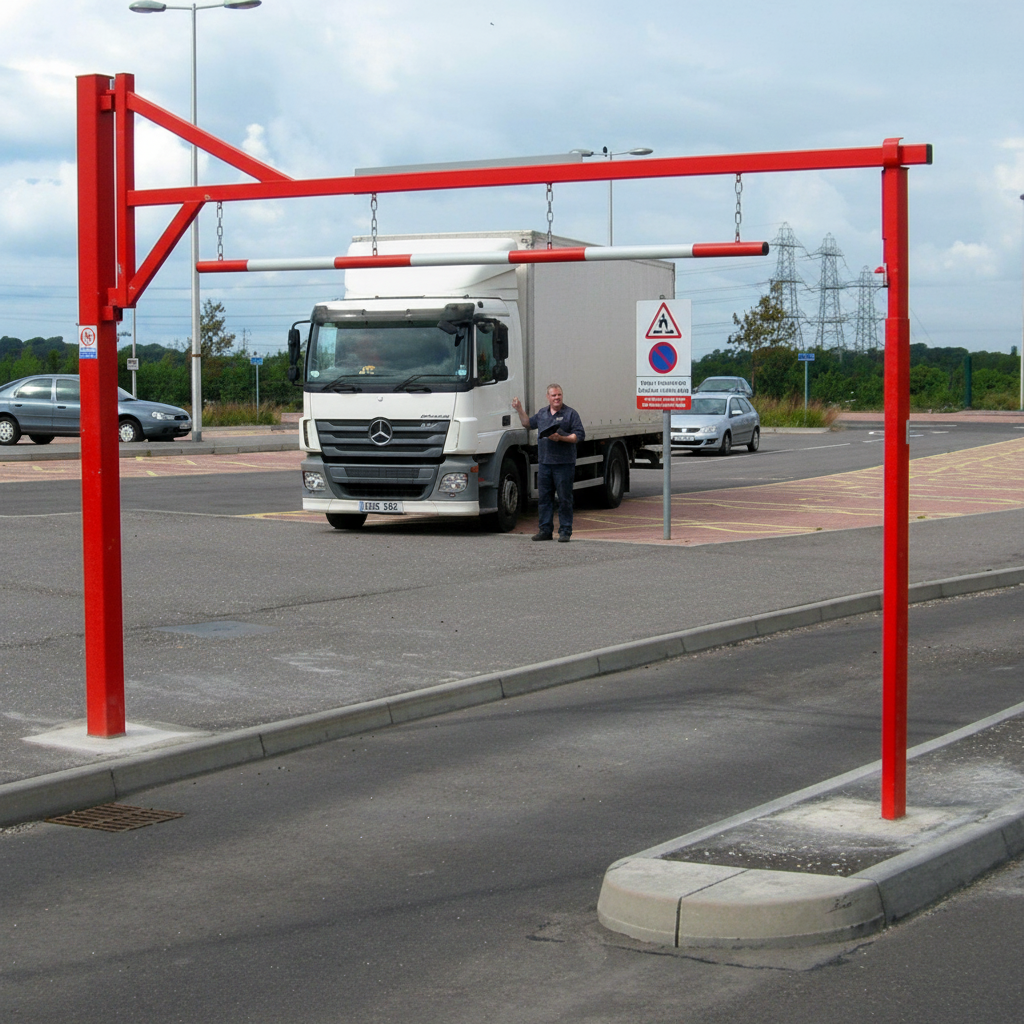

Introducing the Swing Height Restrictor, a robust solution for managing vehicle access on commercial and industrial sites. This high-performance restrictor effectively limits entry to high-sided vehicles, ensuring controlled access to your premises.
Features
- Manufactured from galvanised mild steel for exceptional durability.
- Available in ragged or flanged configurations for versatile installation options.
- Optional knocking bars for enhanced safety.
- Custom colours available upon request.
- Bespoke sizes available upon request.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Main Body | 90mm x 90mm Square Tube |
| Main Gate Arm | 60mm x 60mm |
| Wall Thickness | 3mm |
| Clearance (without knock bar) | 2.2m |
| Clearance (with knock bar) | 2.05m |
Technical Specifications
| Specification | Details |
|---|---|
| Material Type | Steel |
| Finish | Galvanised / Galvanised & Powder-Coated |
| Fixing Method | Concrete In / Bolt Down |
| Concrete In Depth | 600mm below ground |
| Socket Depth | 300mm below ground |
| Bolts Required | 4 x 16mm bolts per leg (sold separately) |
Frequently Asked Questions
- What is the material used in the restrictor? The restrictor is made from high-quality galvanised mild steel.
- Can the restrictor be customized? Yes, custom colours and bespoke sizes are available upon request.
- What installation options are available? The restrictor can be installed using concrete in or bolt down methods.
