Description
Product Overview

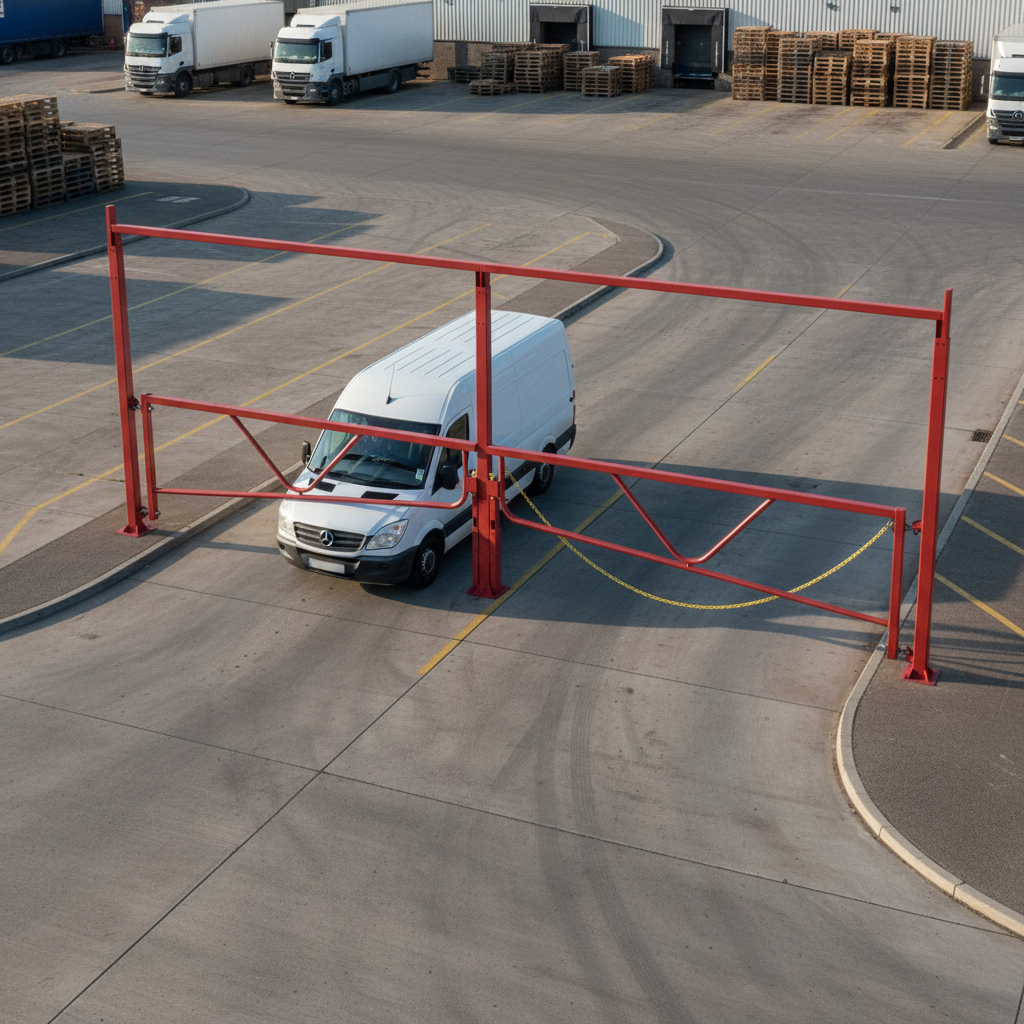

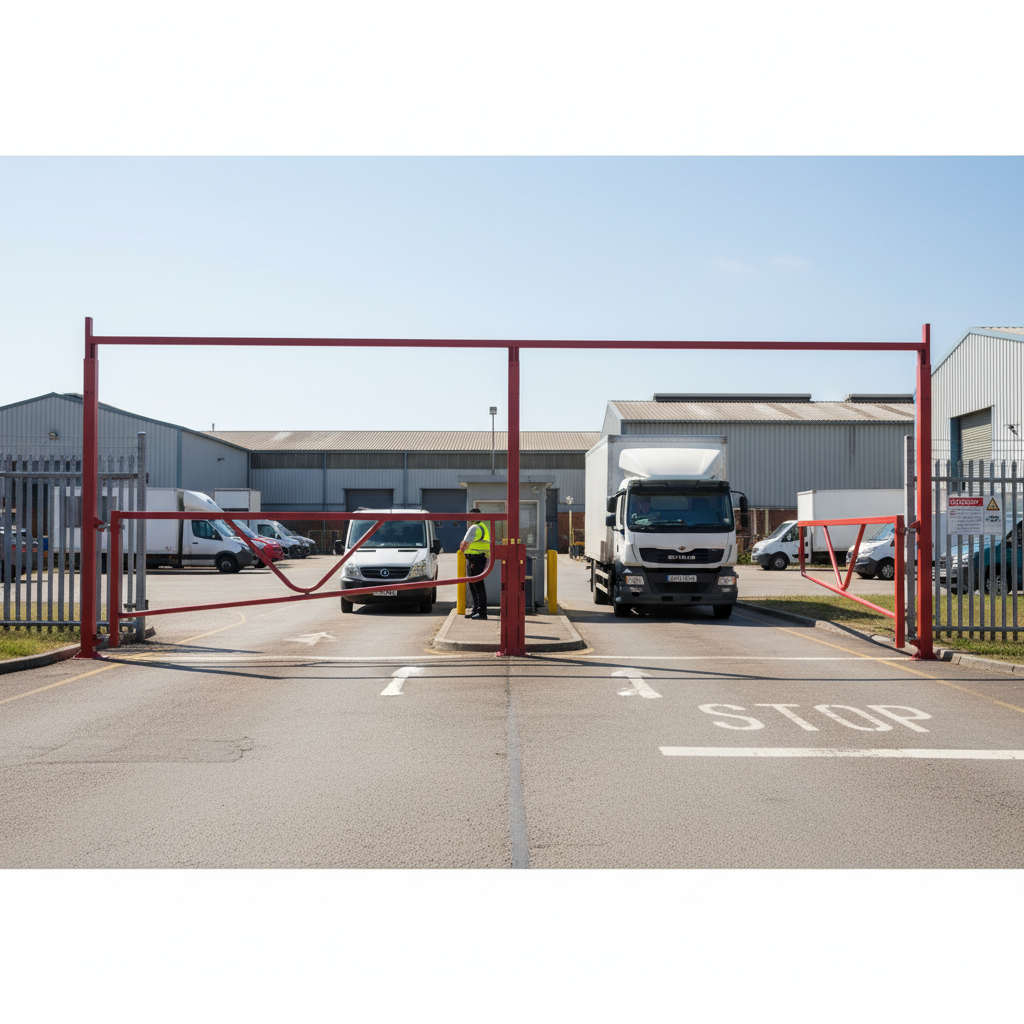

Introducing the Double Fixed Height Restrictor with Double Swing Gates, designed to limit access for high-sided vehicles on commercial sites such as retail parks, industrial areas, and enforcement zones.
Features
- Manufactured from galvanised mild steel for durability
- Available in ragged or flanged configurations for versatile installation options
- Optional knocking bars for enhanced safety
- Custom colours available upon request
- Bespoke sizes available upon request
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Main Body | 120mm x 120mm Square Tube |
| Main Gate Arm | 60mm x 60mm Square Tube |
| Wall Thickness | 3mm |
| Clearance (without knock bar) | 2.2m |
| Clearance (with knock bar) | 2.05m |
| Base Plate (bolt down) | 400mm x 400mm x 10mm |
Technical Specifications
- Fixing Options: Concrete In / Bolt Down
- Concrete In Depth: 600mm below ground
- Bolts Required: 4 x 16mm bolts per leg (sold separately)
- Material: Steel
- Finish: Galvanised / Galvanised & Powder-Coated
Frequently Asked Questions
1. What is the maximum vehicle height this restrictor accommodates?
The maximum height without the knock bar is 2.2m and with the knock bar is 2.05m.
2. Can I customize the color of the restrictor?
Yes, custom colors are available upon request at the time of order.
3. What kind of installation options are available?
The restrictor can be installed as either concrete in or bolt down, depending on your requirements.
