Description
Product Overview

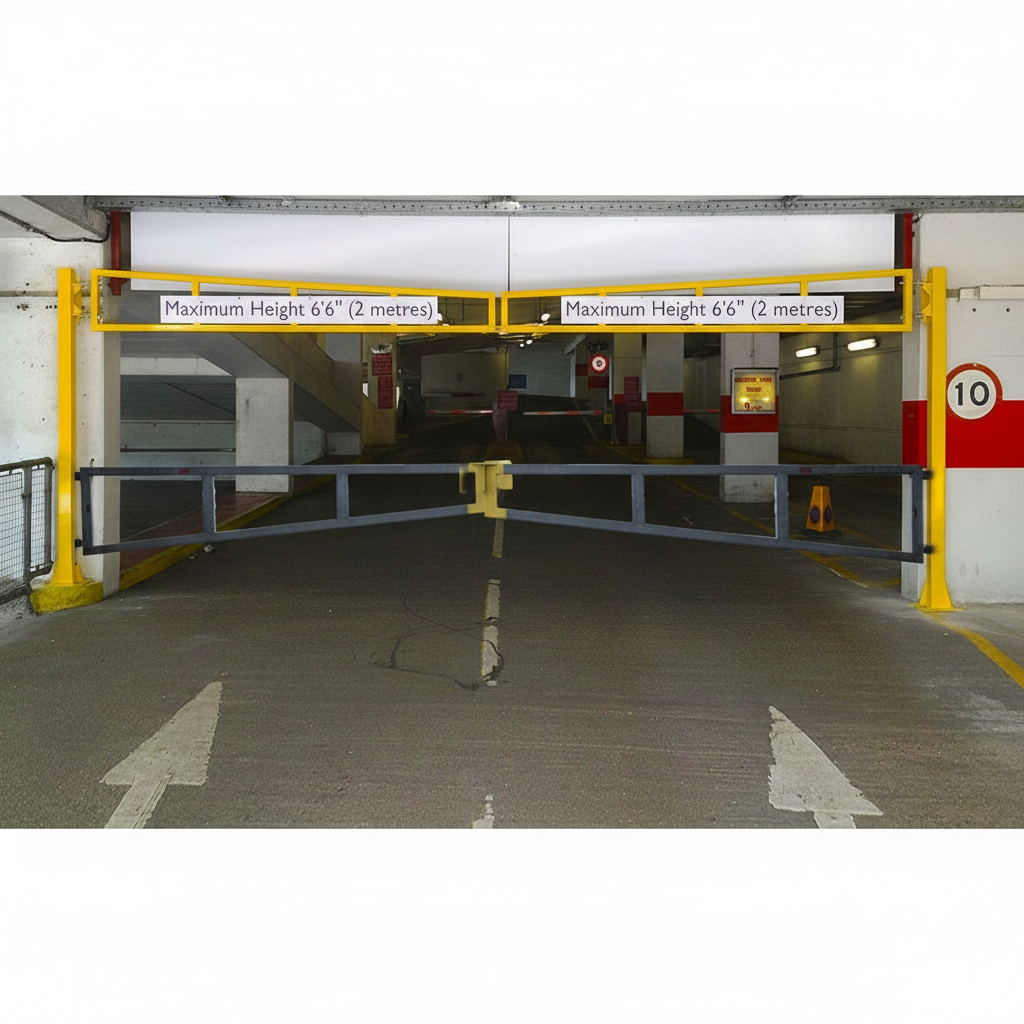

This heavy-duty double opening height barrier system features a lockable swing gate, providing excellent security for various applications. It effectively restricts access while allowing temporary entry for vehicles when needed.
Key Features
- Lockable swing gate for enhanced security.
- Three access options: none, partial, and full.
- Ideal for parks, schools, and commercial or industrial sites.
- Prevents entry of lorries, plant, and high-sided vehicles when locked.
- Available widths from 6m to 10m.
- Options for surface mounting or root fixing.
- Optional opening latch post, painted options, knocking bar, and warning signage.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Width | 6m - 10m |
| Height | 2.1m (custom heights may be available upon request) |
| Steel Box Section | 100mm x 100mm x 5mm (may increase to 150mm x 150mm depending on width) |
| Base Plate (for surface mounting) | 400mm x 400mm x 10mm |
Technical Specifications
- Fixture: Concrete In / Bolt Down
- Concrete In Foundation: 700mm x 700mm x 700mm
- Latch Post Foundation: 300mm cube
- Bolts Required for Main Post: 8 x 16mm bolts (sold separately)
- Bolts Required for Catch Post: 4 x 12mm bolts (sold separately)
- Material: Steel
- Finish: Hot-Dip Galvanised to BS EN ISO 9001:2015 / Powder-Coated / Galvanised & Powder-Coated
- Colour: Customizable according to RAL specification
FAQ
Q: Can the barrier be customized for different heights?
A: Yes, custom heights may be available upon request.
Q: What is the standard width range for this barrier?
A: The barrier is available in widths from 6m to 10m.
Q: What materials are used in the construction of the barrier?
A: The barrier is constructed from high-quality steel with options for a hot-dip galvanised finish or powder coating.
