Description
Product Overview

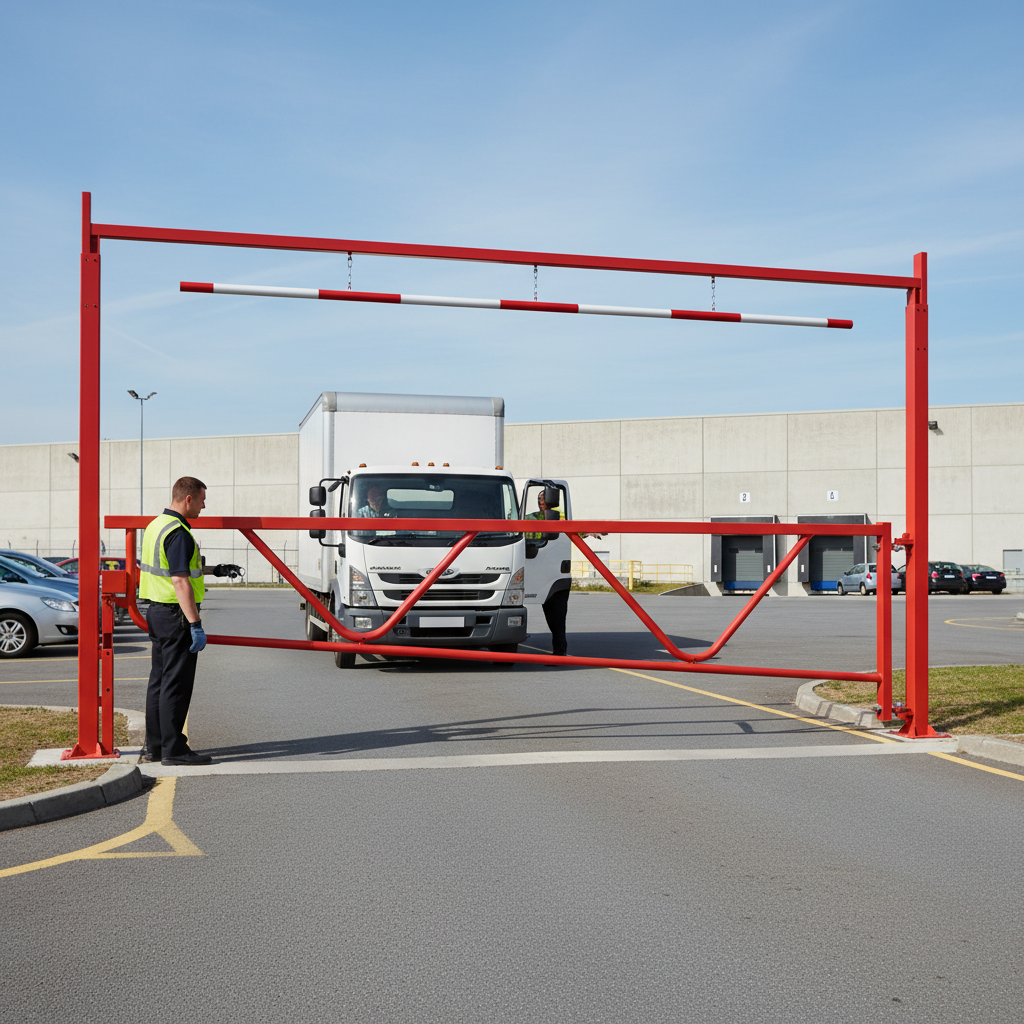

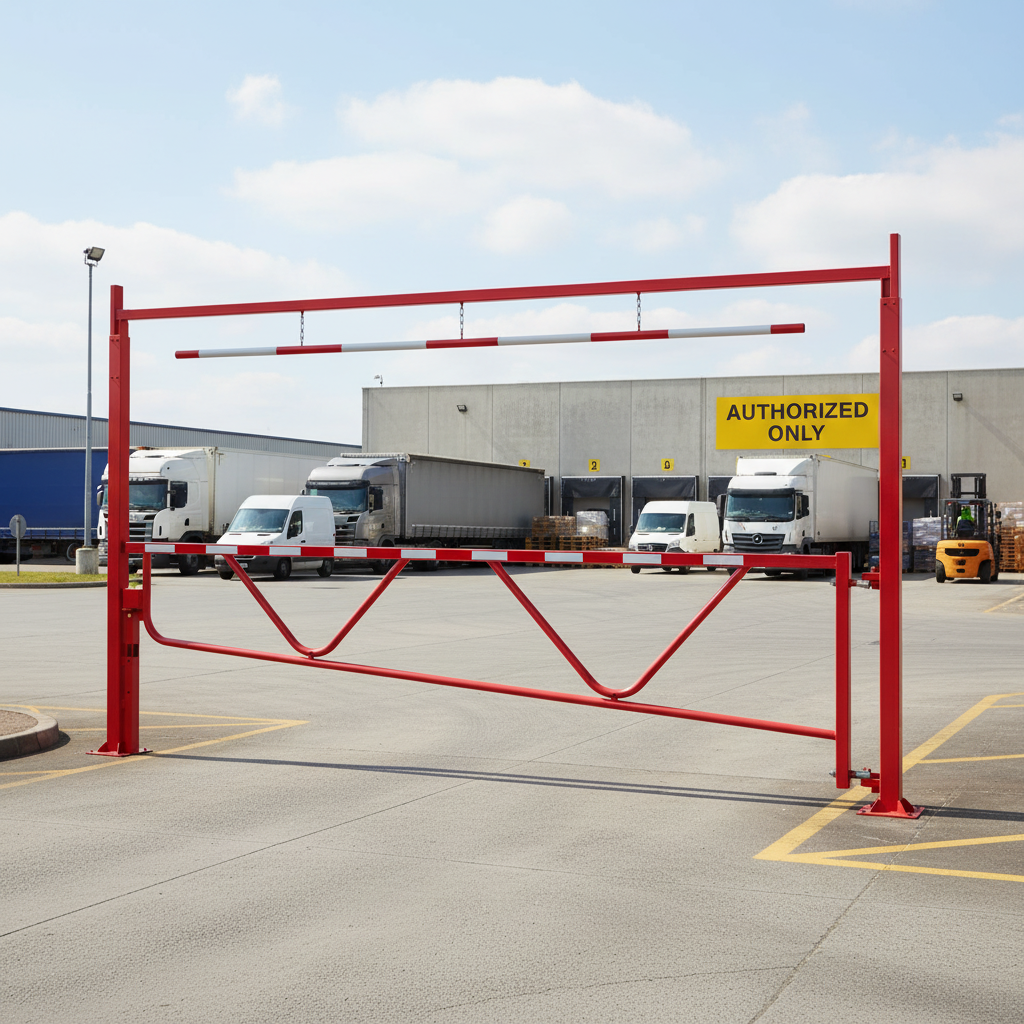

Introducing the Heavy Duty Fixed Height Vehicle Restrictor with Swing Gate, an ideal solution for managing vehicle access at entrances. This product is designed to ensure safety and control in various environments, including retail parks, toll booths, and residential areas.
Features
- Manufactured from galvanised mild steel for enhanced durability
- Available in ragged or flanged configurations for versatile installation options
- Optional knocking bars for additional safety measures
- Custom colours available upon request
- Bespoke sizes can be provided as needed
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Main Body | 120mm x 120mm Square Tube |
| Main Gate Arm | 60mm x 60mm Square Tube |
| Wall Thickness | 3mm |
| Clearance (without knock bar) | 2.2m |
| Clearance (with knock bar) | 2.05m |
| Base Plate (bolt down) | 400mm x 400mm x 10mm |
Technical Specifications
| Specification | Details |
|---|---|
| Material | Steel |
| Finish | Galvanised / Galvanised & Powder-Coated |
| Fixing Method | Concrete In / Bolt Down |
| Concrete In Depth | 600mm below ground |
| Bolts Required | 4 x 16mm bolts per leg (sold separately) |
Frequently Asked Questions
What are the installation options for this restrictor?
The restrictor can be installed using either concrete in or bolt down methods, depending on your requirements.
Can I request custom sizes or colors?
Yes, bespoke sizes and custom colors are available upon request at the time of order.
What is the delivery time for the product?
Standard delivery is within 3 working weeks.
