Description
Product Overview

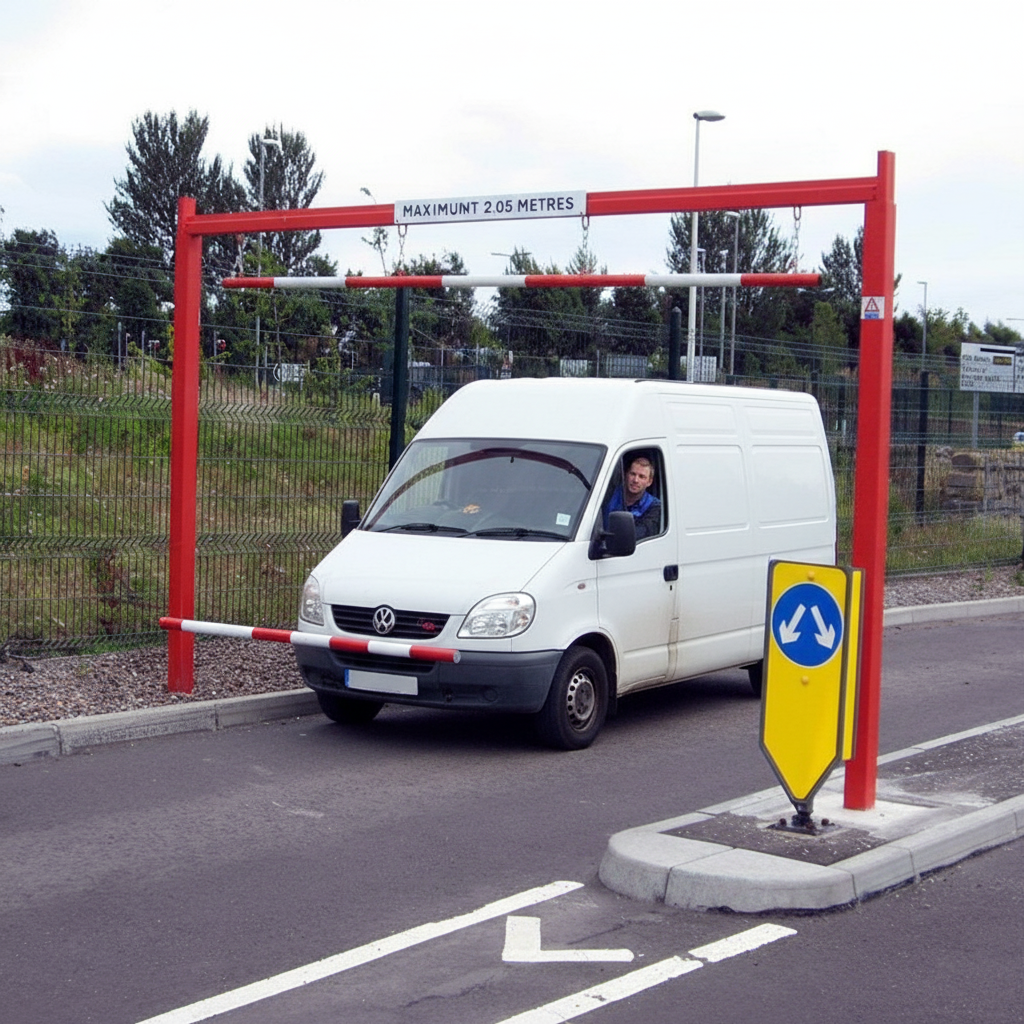

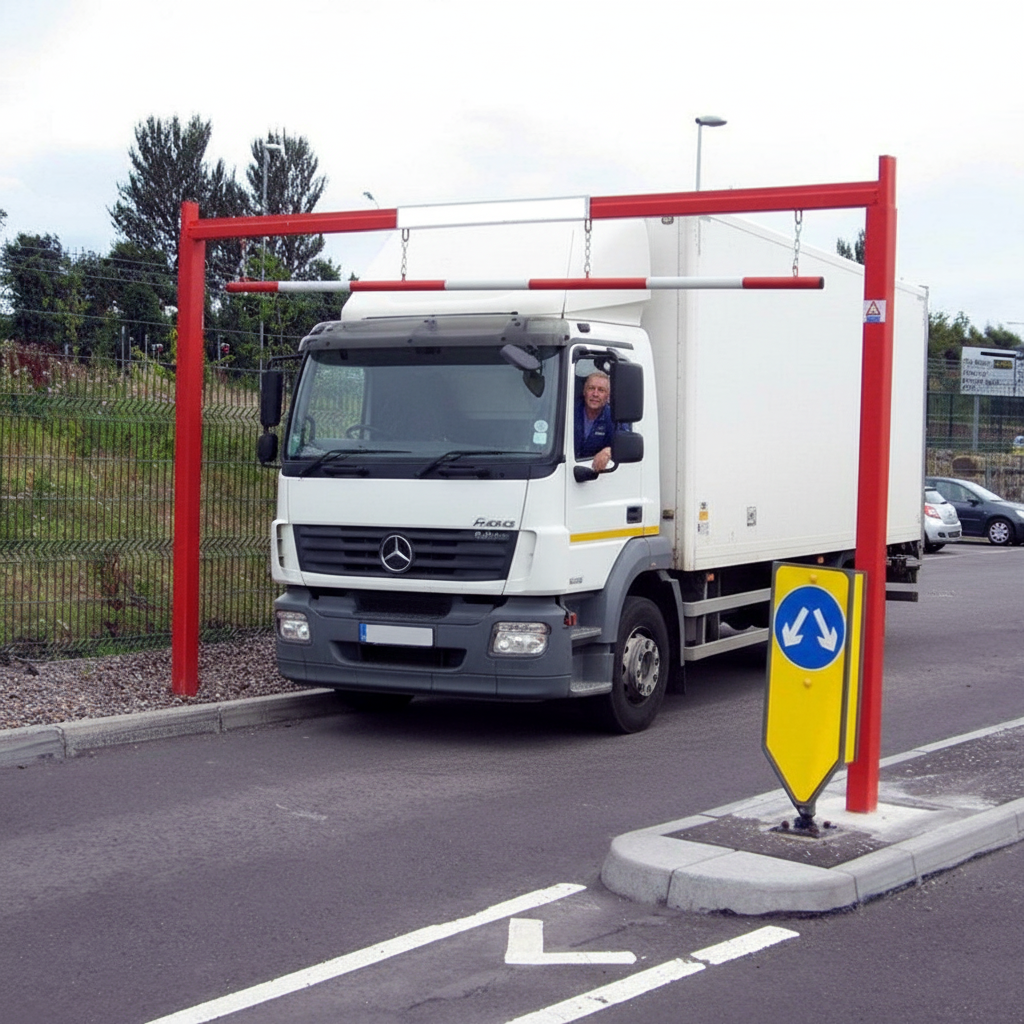

Introducing the Heavy Duty Single Fixed Height Vehicle Restrictor, the ultimate solution for controlling vehicle access in areas with limited overhead clearance. With a standard clearance of 2.05m, this height restrictor effectively limits entry for high-sided vehicles such as HGVs and caravans, making it ideal for commercial sites, residential areas, and parking lots.
Features
- Manufactured from galvanised mild steel for durability and longevity.
- Available in ragged or flanged configurations for versatile installation options.
- Optional knocking bars for enhanced safety and vehicle protection.
- Custom colours available to suit your specific needs.
- Bespoke sizes available upon request to fit unique requirements.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Main Body | 90mm x 90mm Square Tube |
| Main Gate Arm | 60mm x 60mm Square Tube |
| Clearance (without knock bar) | 2.2m |
| Clearance (with knock bar) | 2.05m |
| Base Plate (bolt down) | 400mm x 400mm x 10mm |
Technical Specifications
- Material: Steel
- Finish: Galvanised / Galvanised & Powder-Coated
- Fixing Options: Concrete In / Bolt Down
- Concrete In Depth: 600mm below ground
- Bolts Required: 4 x 16mm bolts per leg (sold separately)
FAQ
What is the clearance height of the restrictor?
The standard clearance height is 2.05m, with 2.2m clearance available without the knocking bar.
What materials are used in the construction?
The restrictor is made of high-quality galvanised mild steel for enhanced durability.
Can I customize the color?
Yes, custom colors are available upon request to meet specific project needs.
