Description
Product Overview

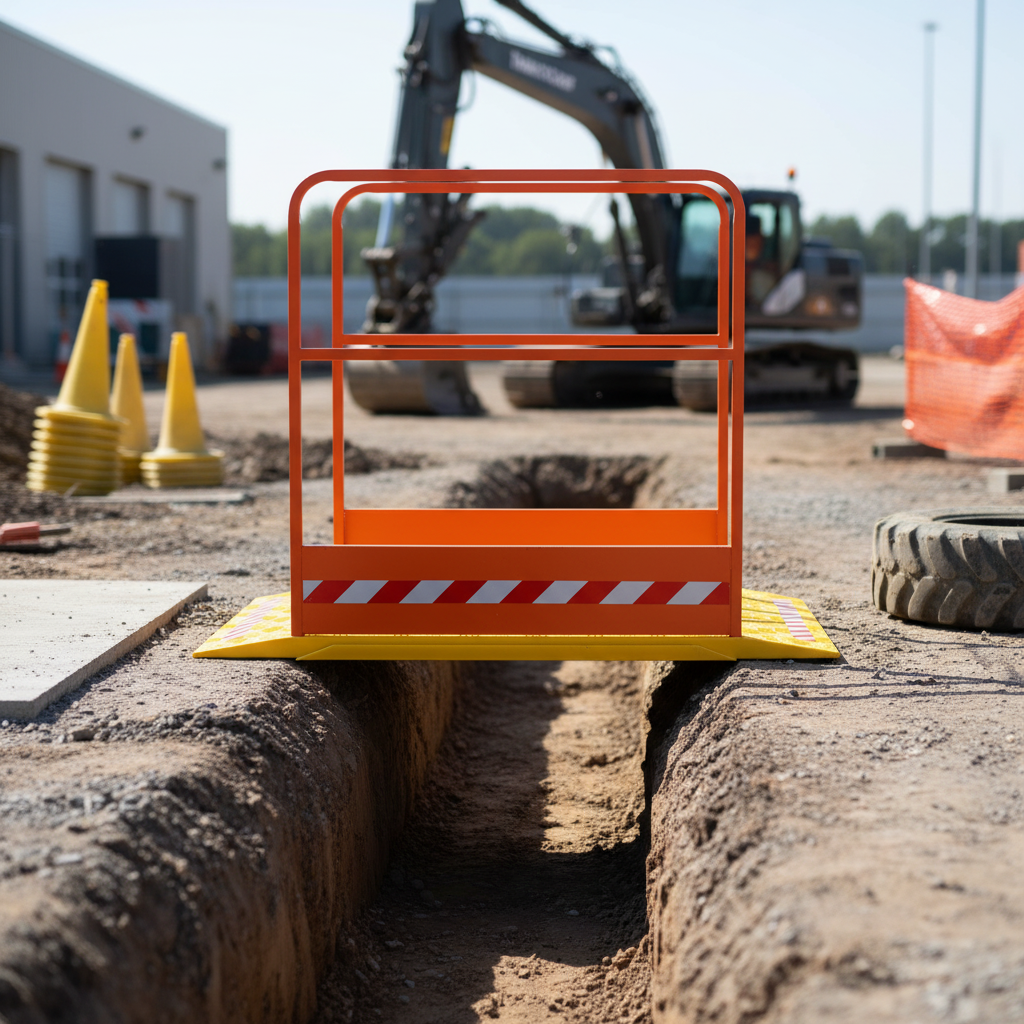

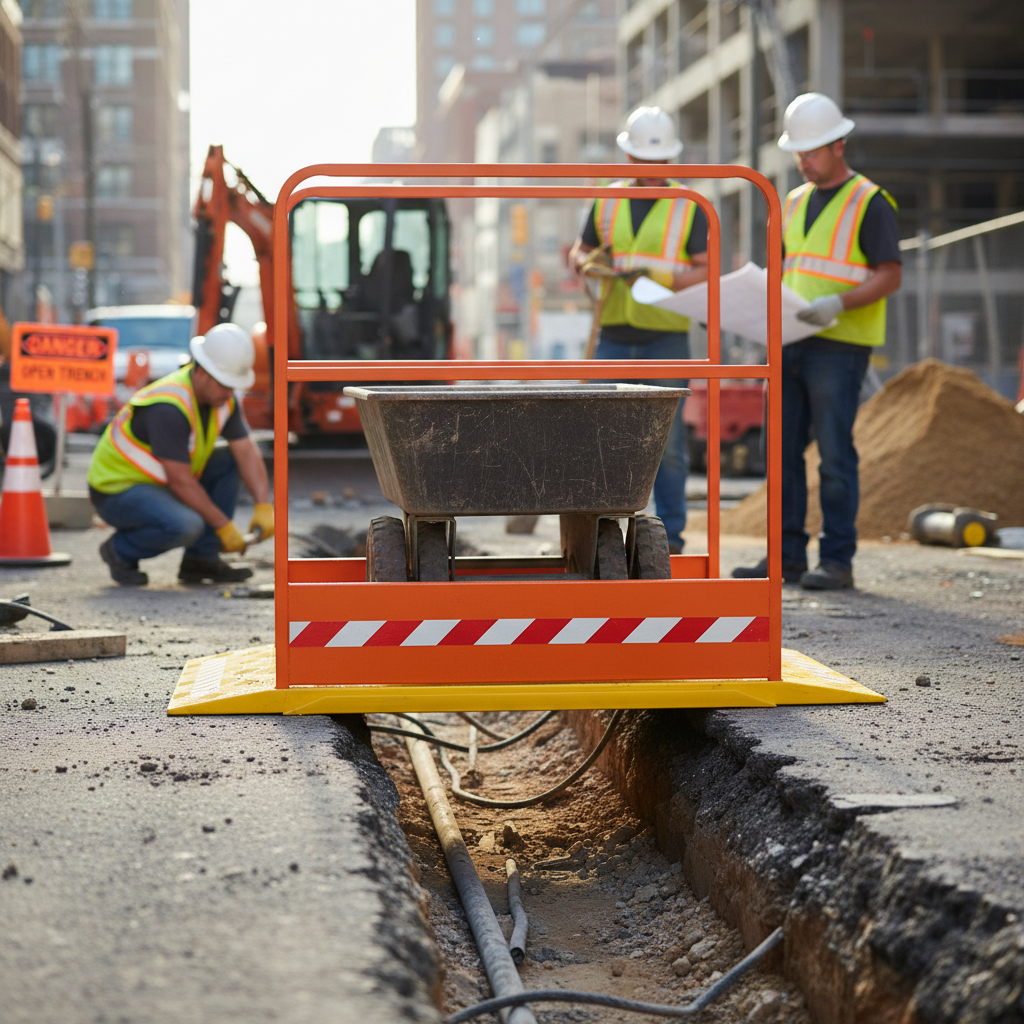

The Heavy Duty TrenchCross is an innovative solution designed for providing safe access for pedestrians and light vehicles over trenches. This system stands out with its unique non-slip traction surface, ensuring secure footing even in challenging conditions.
Key Features
- Unique non-slip traction surface for enhanced safety
- High-visibility reflective edge protection railings and strips
- Hold handles for easy installation and transportation
- Ability to be secured to the ground using fixings for added stability
- Width can be increased by connecting additional units together
- Effective and safe access for pedestrians and light-weight vehicles
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Length | 1400mm / 2000mm |
| Width | 800mm / 600mm |
| Hand Rail Height | 1180mm |
| Weight | 19kg / 23kg |
Technical Specifications
| Detail | Specification |
|---|---|
| Max. Load | 500kg / 1000kg |
| Trench Span | 600mm / 1100mm |
| Colour | Orange & Yellow |
| Frame Material | Steel |
| Edge Ramp Material | 100% Recycled High Density Polyethylene (HDPE) |
Frequently Asked Questions (FAQ)
- What is the maximum load capacity? The Heavy Duty TrenchCross can support up to 1000kg.
- Can I connect multiple units together? Yes, the width can be increased by connecting additional units.
- Is the TrenchCross suitable for heavy vehicles? It is primarily designed for pedestrians and light vehicles, ensuring safety and stability.
