Description

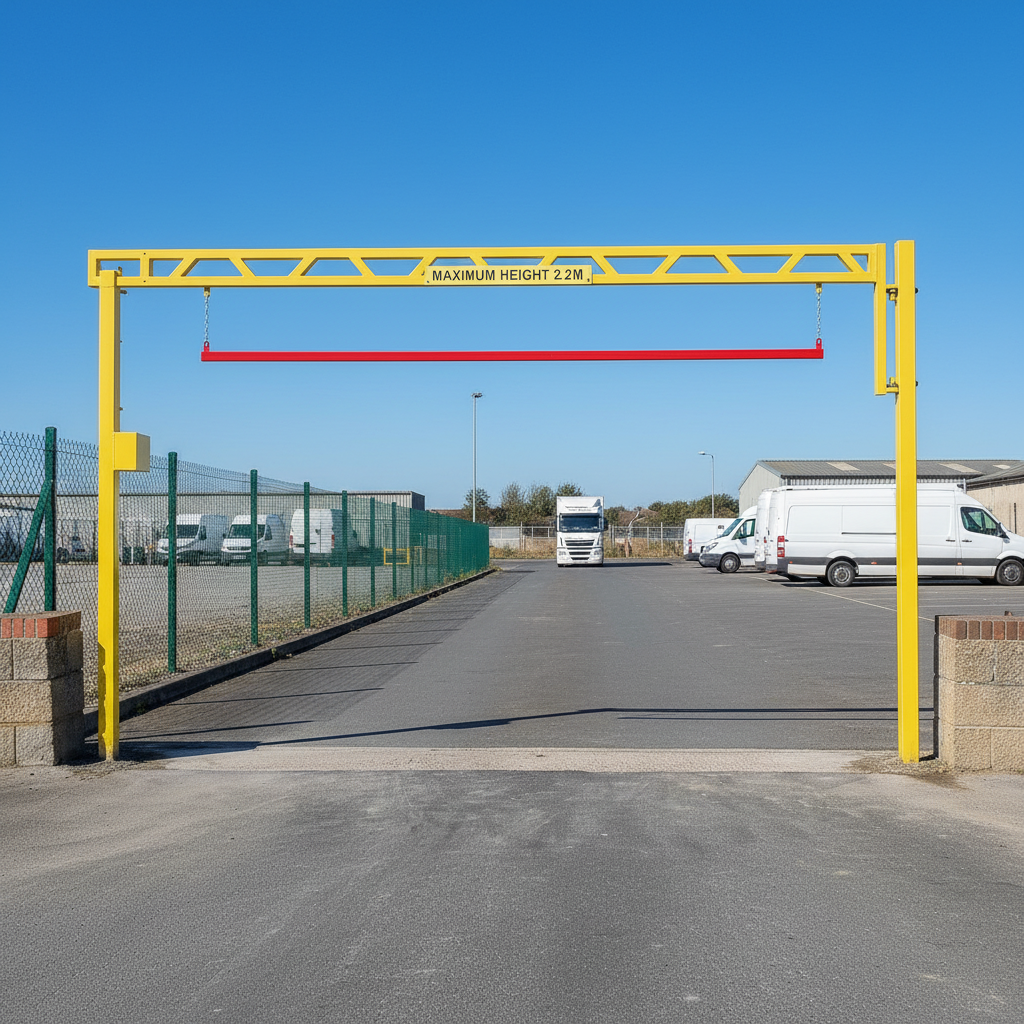

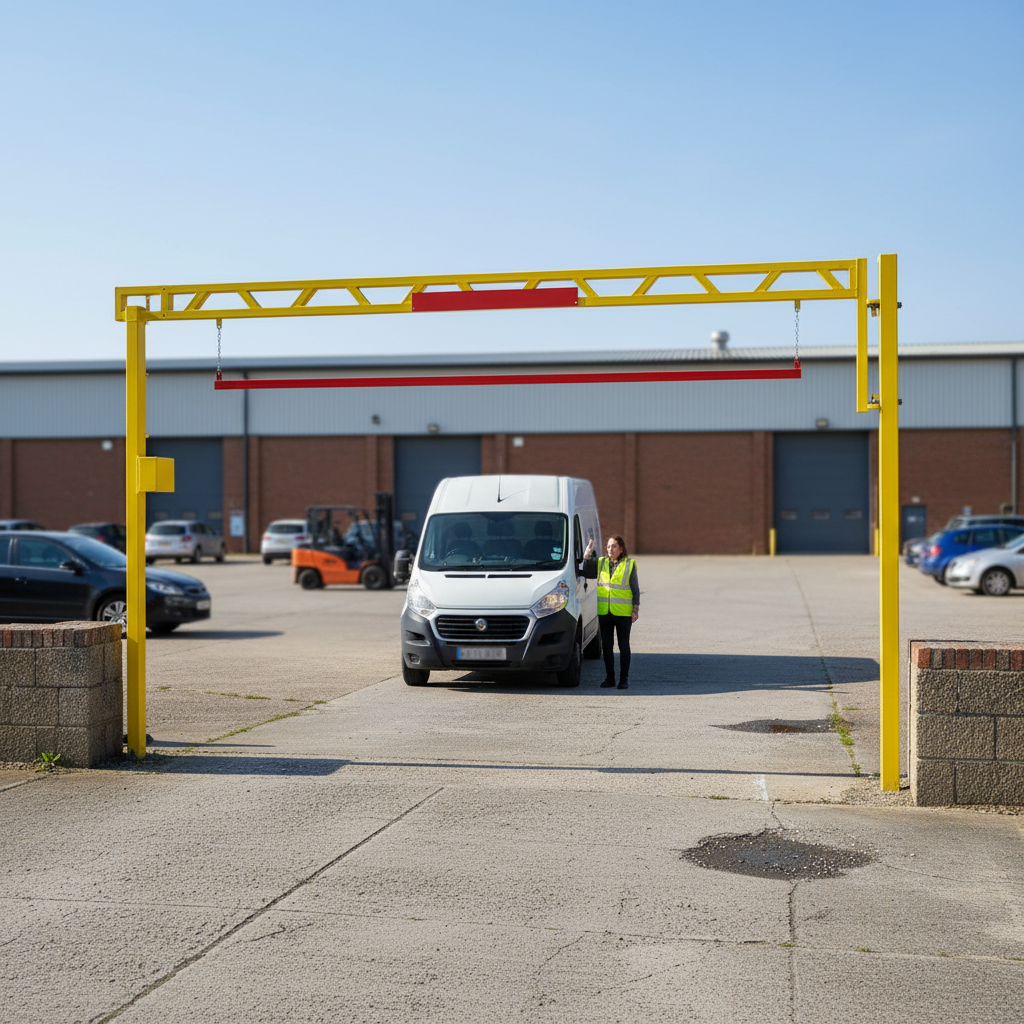

Premium Ladder Style Single Leaf Opening Height Barrier
Introducing the Premium Ladder Style Single Leaf Opening Height Barrier, designed to effectively restrict access and deter unauthorized use in various settings. This barrier system features a single leaf opening arm that provides convenient access while maintaining security. Ideal for use in parks, schools, commercial areas, and industrial sites, this barrier is a reliable solution for height restriction needs.
Features
- Supplied flat packed for easy transportation
- Can be locked in both open and closed positions
- Highly effective deterrent against unauthorized use
- Available in widths ranging from 3m to 7m (bespoke sizes available upon request)
- Options for Surface Fixed or Root Fixed installations
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Width | 3m-7m (larger widths may be available upon request) |
| Height | 2.4m as standard (custom heights may be available upon request) |
| Steel Box Section | 100mm x 100mm x 5mm |
| Base Plate (for surface mounting) | 400mm x 400mm x 10mm |
Technical Specifications
Installation Details
- Concrete In / Bolt Down fixture options
- Concrete In Foundation: 700mm x 700mm x 700mm
- Latch Post Foundation: 300mm cube
- Bolts Required for Main Post: 8 x 16mm bolts (bolts sold separately)
- Bolts Required for Catch Post: 4 x 12mm bolts (bolts sold separately)
FAQ
What materials are used in the height barrier?
The height barrier is constructed from durable steel with options for hot-dip galvanised, powder-coated, or a combination of both finishes.
Can the barrier be customized?
Yes, custom sizes and heights are available upon request to fit specific requirements.
What is the installation process?
The barrier can be either surface mounted or root fixed, depending on your installation preference.
