Description
Product Overview

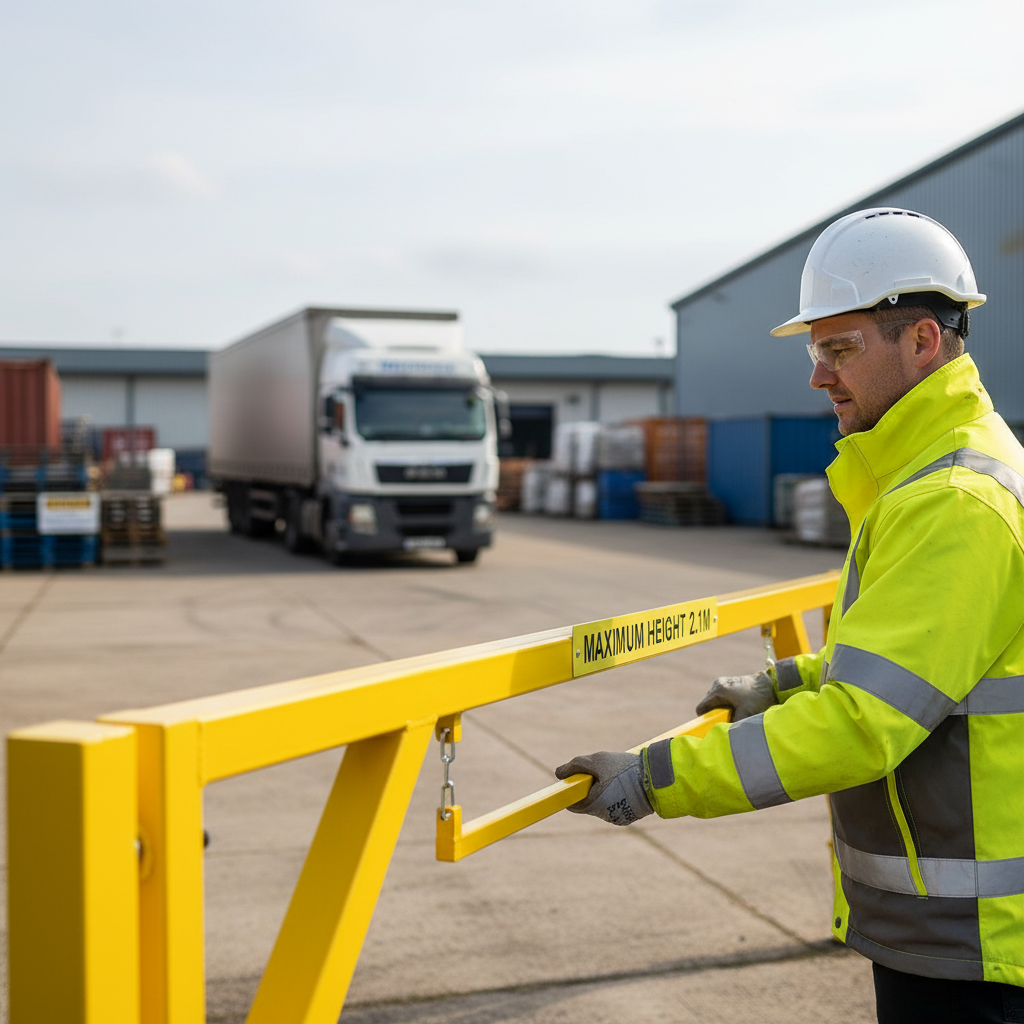

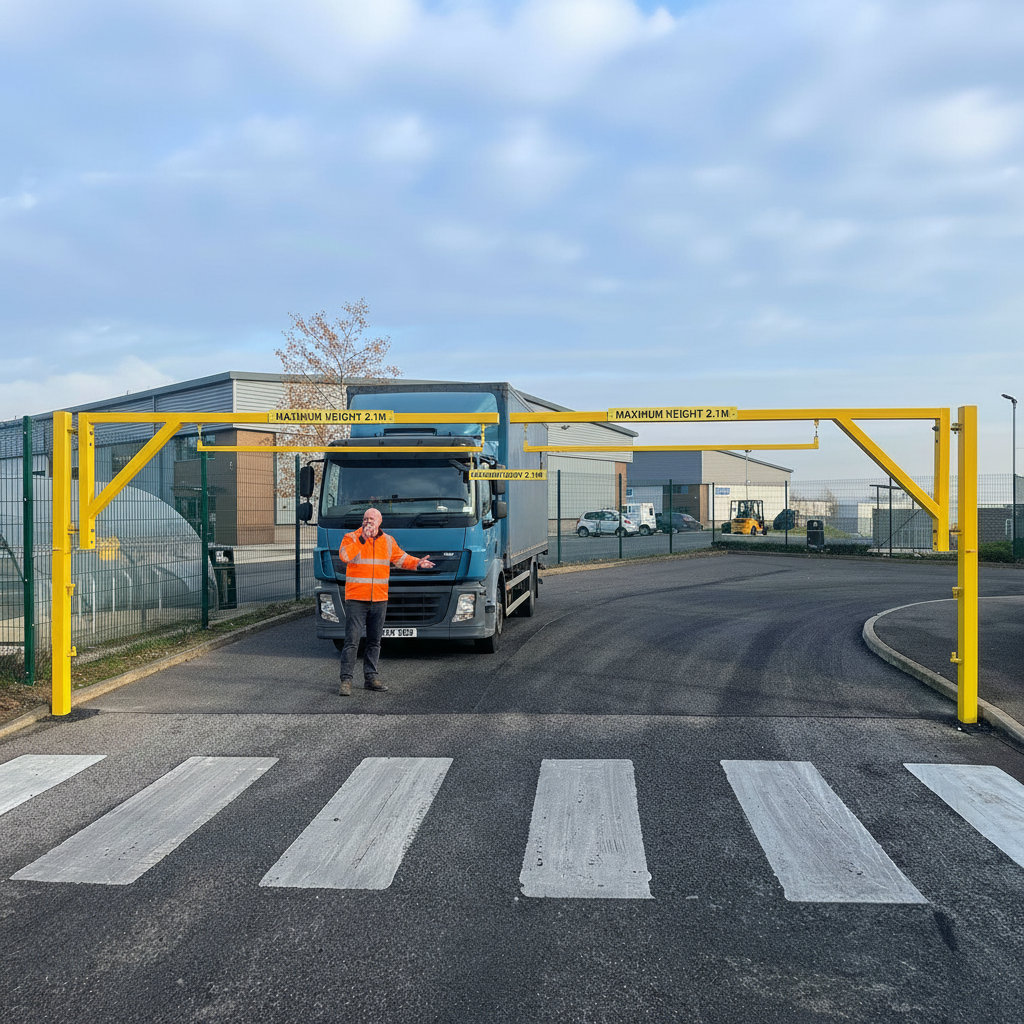

The Professional Double Leaf Opening Height Restrictor Barrier is designed specifically for retail parks and public car parks, ensuring that unauthorized access by high-sided vehicles such as lorries and caravans is effectively prevented. This barrier is an essential solution for maintaining security and safety in your parking areas.
Key Features
- Height Restriction Barrier to prevent unauthorized vehicle access.
- Secure centre locking mechanism with a sliding shoot bolt (padlock not included).
- Durable construction from galvanised steel with an optional painted finish.
- Optional extras include a knocking bar, signage, and installation options (root-fixed or surface-fixed).
- Optional swing gate for restricted access during closing times.
- Catch posts sold separately.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Width | 6m-10m |
| Height | 2.4m as standard (custom heights may be available upon request) |
| Steel Box Section | 100mm x 100mm x 5mm |
| Base Plate (for surface mounting) | 400mm x 400mm x 10mm |
Technical Specifications
- Fixture options: Concrete In / Bolt Down.
- Concrete In Foundation: 700mm x 700mm x 700mm.
- Latch Post Foundation: 300mm cube.
- Bolts Required for Main Post: 8 x 16mm bolts (sold separately).
- Bolts Required for Catch Post: 4 x 12mm bolts (sold separately).
- Material: Steel.
- Finish: Hot-Dip Galvanised to BS EN ISO 9001:2015 / Powder-Coated / Galvanised & Powder-Coated.
- Colour: Custom RAL colour available upon request.
Frequently Asked Questions
Q: Can the barrier be customized in height?A: Yes, it can be customized to suit your specific height requirements upon request.
Q: What type of installation is available?
A: The barrier can be installed as either root-fixed or surface-fixed.
Q: Are the bolts included with the barrier?
A: No, bolts for the main post and catch post are sold separately.
