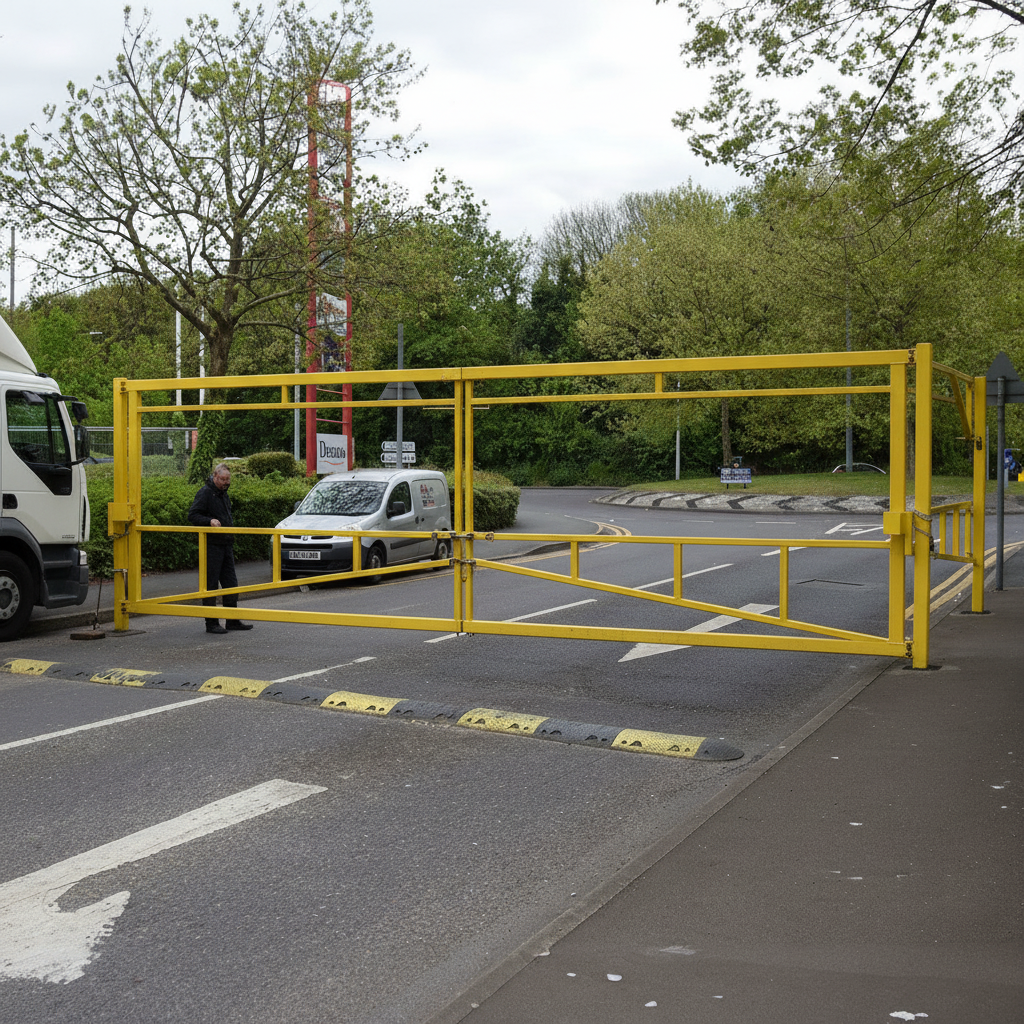

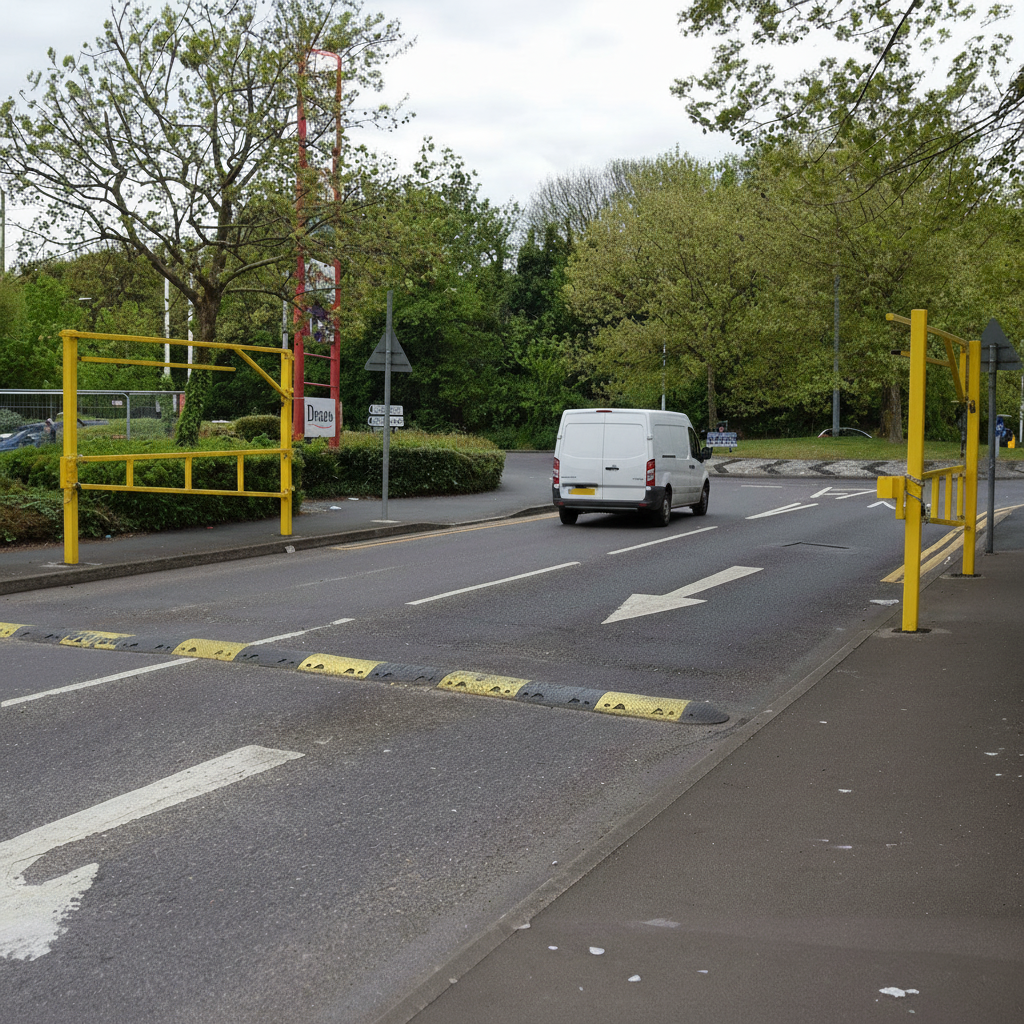

The Double Leaf Opening Height Restrictor Barrier is designed to provide secure access control for parks, schools, and commercial sites. This system includes a lockable swing gate, ensuring maximum safety when locked.
Key Features
Three access options: none, partial, and full
Provides excellent security when both barrier and gate are locked
Allows temporary access for vehicles when necessary
Prevents entry of lorries, plant equipment, and high-sided vehicles when locked
Available in standard or heavy-duty options
Widths range from 6m to 10m
Options for surface fixing or root fixing
Dimensions & Specifications
Specification
Measurement
Width
6m - 10m
Height
2.4m as standard (custom heights available upon request)
Steel Box Section
100mm x 100mm x 5mm
Base Plate (for surface mounting)
400mm x 400mm x 10mm
Technical Specifications
Detail
Measurement
Fixture
Concrete In / Bolt Down
Concrete In Foundation
700mm x 700mm x 700mm
Latch Post Foundation
300mm cube
Bolts Required for Main Post
8 x 16mm bolts (sold separately)
Bolts Required for Catch Post
4 x 12mm bolts (sold separately)
Frequently Asked Questions
What materials are used in the barrier? The barrier is constructed from high-quality steel and is available with a hot-dip galvanised finish.
Can the height be customized? Yes, custom heights may be available upon request.
What installation options are available? The barrier can be either concretely installed or bolted down for flexibility.
